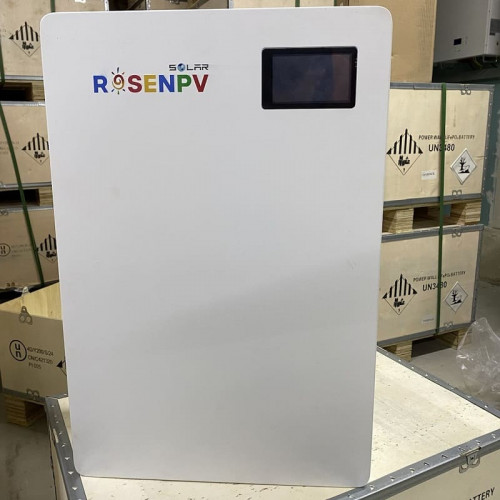

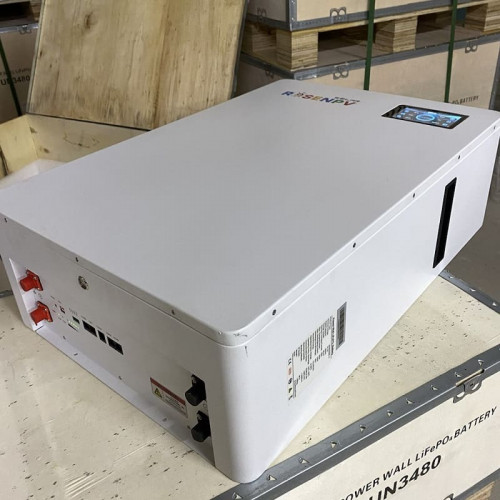

Battery pack 51.2V 200Ah LiFePO4, LFP wall type with EVE 3.2V 100Ah LiFePO4 grade A cells
Brand:
ROSENCharacteristics
Battery capacity, Ah:
200
Parallel functions:
support for 14 units in parallel
Producer:
ROSEN
Installation method:
wall
Cell type:
EVE 3.2V 100Ah LiFePO4 grade A cells
Control:
BMS (battery management system)
Service life, years:
10
See all
Documentation
Categories
Favorite
Compare

Products from the same category

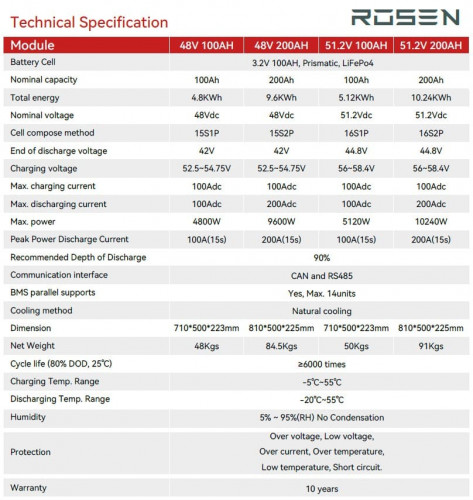

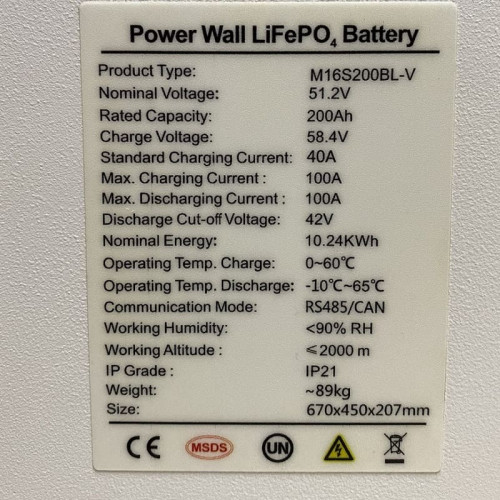

Features Battery pack 51.2V 200Ah LiFePO4, LFP wall type with EVE 3.2V 100Ah LiFePO4 grade A cells
Battery capacity, Ah | 200 |
Parallel functions | support for 14 units in parallel |
Producer | ROSEN |
Installation method | wall |
Cell type | EVE 3.2V 100Ah LiFePO4 grade A cells |
Control | BMS (battery management system) |
Service life, years | 10 |
Energy, kW/h | 10,24 |
Cell compose method | 16S2P |
Dimensions, mm | 670x450x207 |
Humidity,% | 5% ~ 95% (RH) No Condensation |
Recommended Depth of Discharge, % | 90 |
Temperature range | charge: -5~55°C; discharge: -20~55°С |
Standard charge voltage, V | 56~58,4 |
Rated voltage, V | 51.2V |
Maximum charging current, A | 100 |

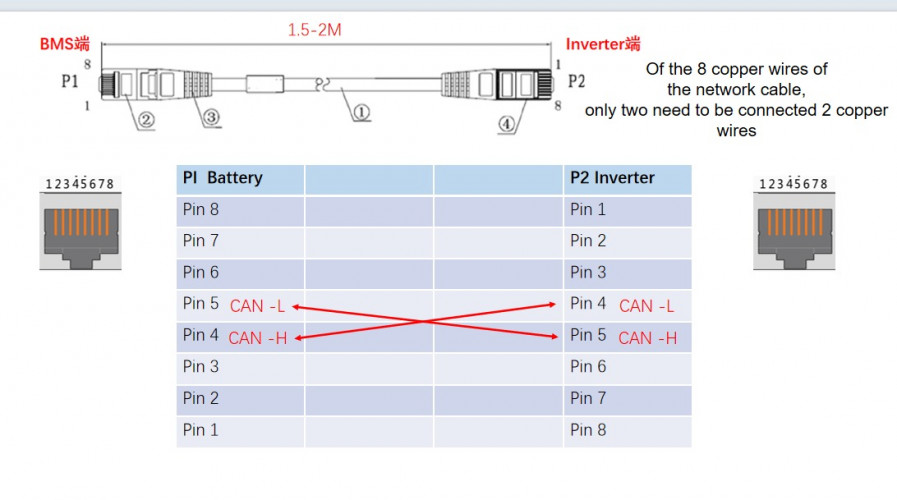

Interface | CAN and RS485 |
Discharge cut-off voltage, V | 44,8 |
Type | LiFePO4, LFP lithium iron phosphate rechargeable batteries |
Cycle life | ≥6000 (80% DOD,25°С) |
Maximum discharge current, A | 200 |
Country of Origin | China |
Warranty, months | 12 |
Weight, kg | 89 |
Gross weight, kg | 103.5 |
Length of transport packing, cm | 75.5 |
Width of transport packing, cm | 52.5 |
Height of transport packing, cm | 40 |
Description Battery pack 51.2V 200Ah LiFePO4, LFP wall type with EVE 3.2V 100Ah LiFePO4 grade A cells

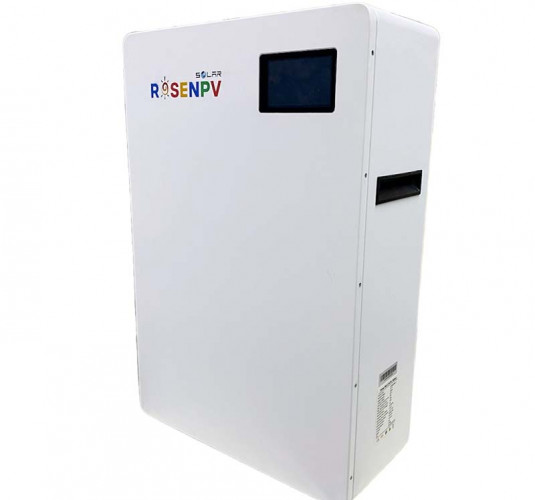

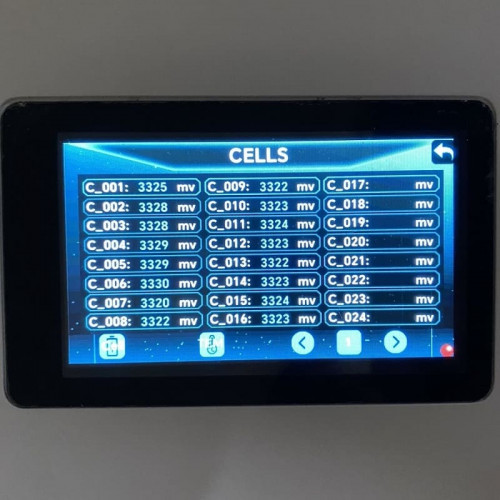

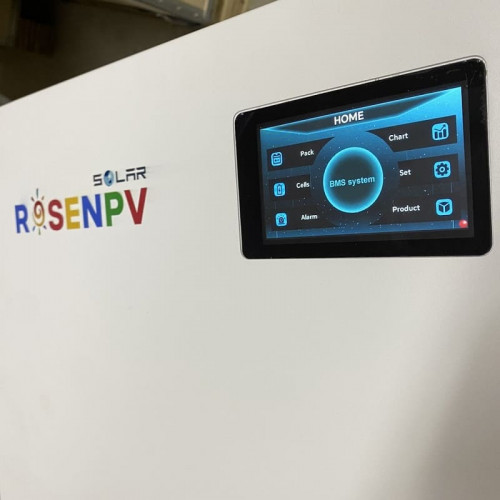

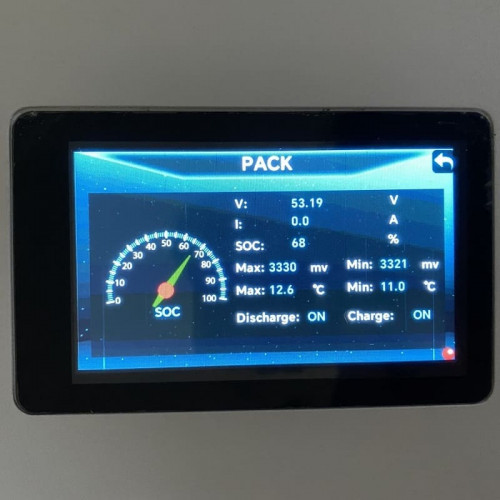

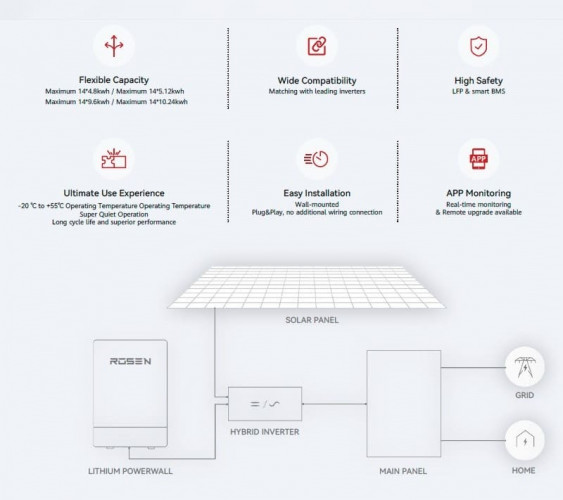

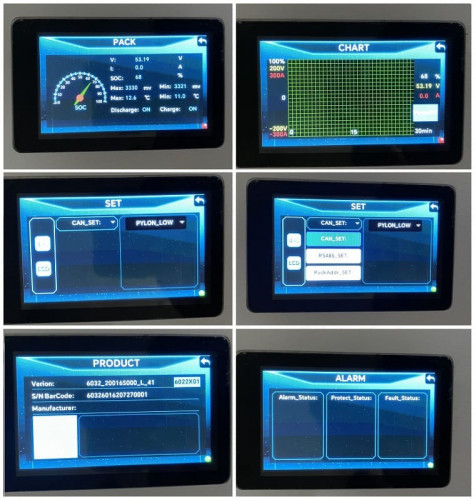

Lithium-iron-phosphate LiFePO4 wall-type battery. Built-in intelligent BMS system (battery management syste - battery management system) that effectively prevents overcharging, overdischarging, overvoltage, short circuit and other problems. Long service life: Using high-quality lithium-iron-phosphate batteries, the cycle life is increased to more than 6000 times at 80% DOD, 25°C and can be used for more than 10 years. Protection against overvoltage, low voltage, overcurrent, overtemperature, low temperature, short circuit. Wide compatibility with leading inventors. APP monitoring, remote update available. Easy installation without additional wiring.
Documentation Battery pack 51.2V 200Ah LiFePO4, LFP wall type with EVE 3.2V 100Ah LiFePO4 grade A cells
Download instructions, catalog for Battery pack 51.2V 200Ah LiFePO4, LFP wall type with EVE 3.2V 100Ah LiFePO4 grade A cells
Battery pack 51.2V 200Ah LiFePO4, LFP wall type with EVE 3.2V 100Ah LiFePO4 grade A cells reviews
