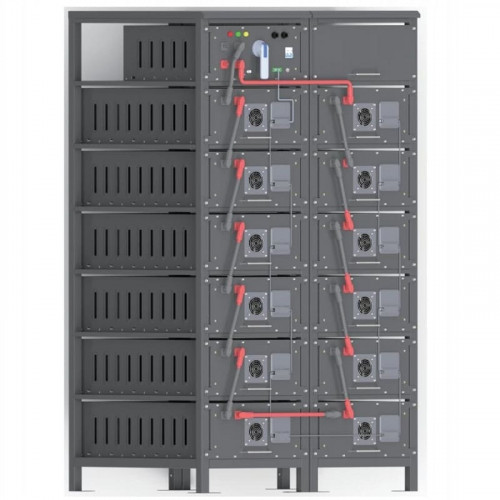

High voltage battery cabinet TH-704/280R/HV, LiFePO4, LFP
Brand:
CooliCharacteristics
Parallel functions:
support for 10 units in parallel
Producer:
Cooli
Control:
BMS (battery management system)
Service life, years:
≥15(25°С)
Energy, kW/h:
197,12
Dimensions, mm:
1732x950x1100
Humidity,%:
≤95(Non-condensing)
See all
Documentation
Categories
Favorite
Compare

Products from the same category

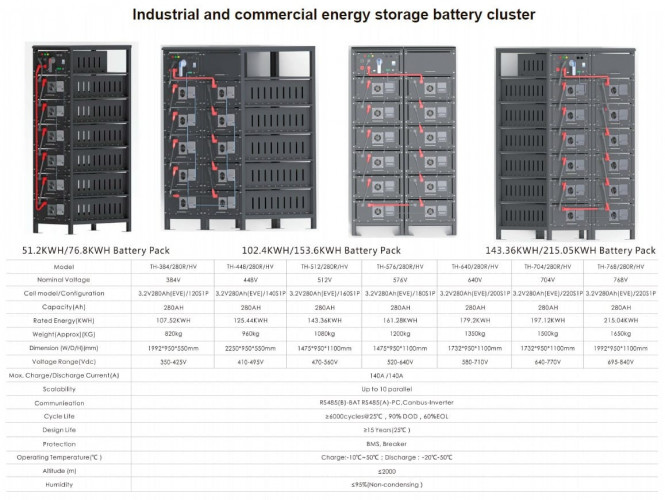

Features High voltage battery cabinet TH-704/280R/HV, LiFePO4, LFP
Parallel functions | support for 10 units in parallel |
Producer | Cooli |
Control | BMS (battery management system) |
Service life, years | ≥15(25°С) |
Energy, kW/h | 197,12 |
Dimensions, mm | 1732x950x1100 |
Humidity,% | ≤95(Non-condensing) |
Temperature range | charge: -10~50°C; discharge: -20~50°С |
Maximum charging current, A | 140 |
Cell model/configuration | 3.2V280Ah(EVE)/220S1P |
Rated voltage, V | 704V |
Interface | RS485(B)-BAT RS485(A)-PC, Canbus-Inverter |
Voltage range, V | 640-770 |
Type | LiFePO4, LFP lithium iron phosphate rechargeable batteries |
Cycle life | ≥6000 (25°С, 90% DOD, 60%EOL) |
Maximum discharge current, A | 140 |
Series | TH |
Country of Origin | China |
Warranty, months | 12 |
Weight, kg | ~1500 |

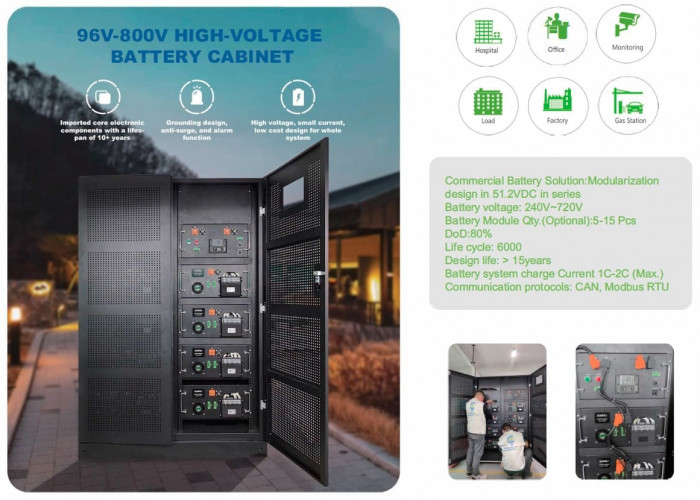

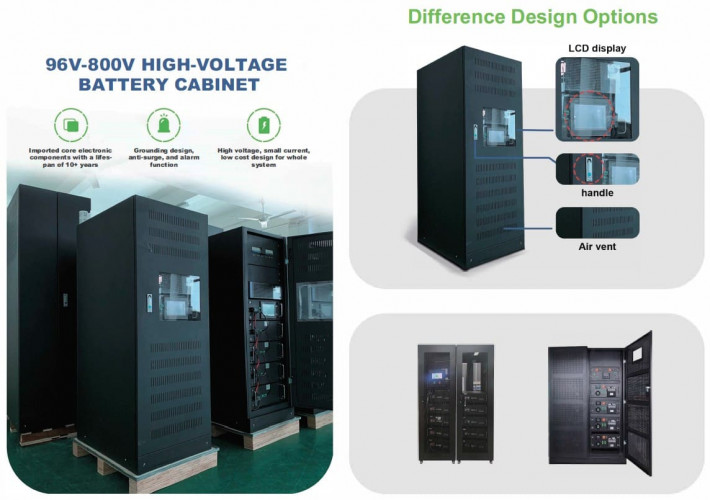

Description High voltage battery cabinet TH-704/280R/HV, LiFePO4, LFP
The industrial high-voltage battery cabinet contains the main electronic components with a service life of over 10 years. Grounding design, overvoltage protection and alarm function. High pressure, low flow. Possible use in hospitals, offices, video surveillance systems, factories, gas stations. Commercial solutions for batteries: modularity, design in 51.2 V constant flow in the series. Battery module capacity (additional): 5-15 pcs. DoD: 80%. Life cycle: 6000. Rozrunkovy term of service for more than 15 years. Communication protocols: CAN, Modbus RTU.
Documentation High voltage battery cabinet TH-704/280R/HV, LiFePO4, LFP
Download instructions, catalog for High voltage battery cabinet TH-704/280R/HV, LiFePO4, LFP
