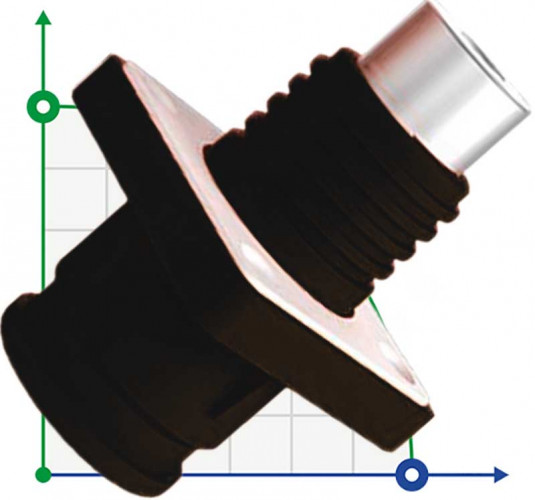

JC-CN08-S-03-LM Socket connector for energy storage systems 150A/200A, 1500V DC, black

Brand:
RJCNE
Characteristics
Producer:
RJCNE
Number of mating cycles:
≥ 500
Color:
black (-)
Operating temperature:
-40°C +125°C
Number of cores:
single core
Protection:
IP67\UL94 V-0
Insulation resistance:
>500MΩ
See all
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1050063
$13.23 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards

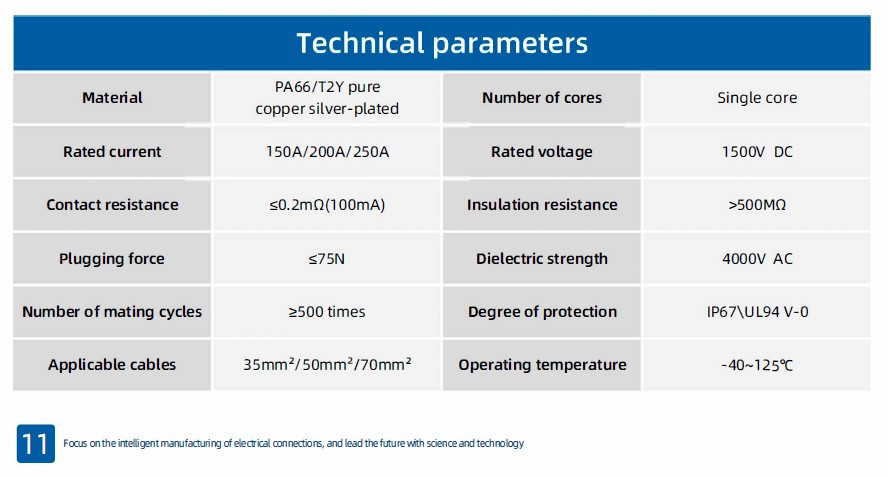

Features JC-CN08-S-03-LM Socket connector for energy storage systems 150A/200A, 1500V DC, black
Producer
RJCNE
Number of mating cycles
≥ 500
Color
black (-)
Operating temperature
-40°C +125°C
Number of cores
single core
Protection
IP67\UL94 V-0
Insulation resistance
>500MΩ
Dielectric strength
4000V AC
Rated voltage, V
1500V DC
Connection type
LM: nut type
Type
connector
Rated current, A
150A, 200A
Contact resistance
≤0.2mΩ(100mA)
Material
PA66/T2Y pure silver-plated copper
Plugging force
≤75N
Series
CN
Country of Origin
China
Description JC-CN08-S-03-LM Socket connector for energy storage systems 150A/200A, 1500V DC, black

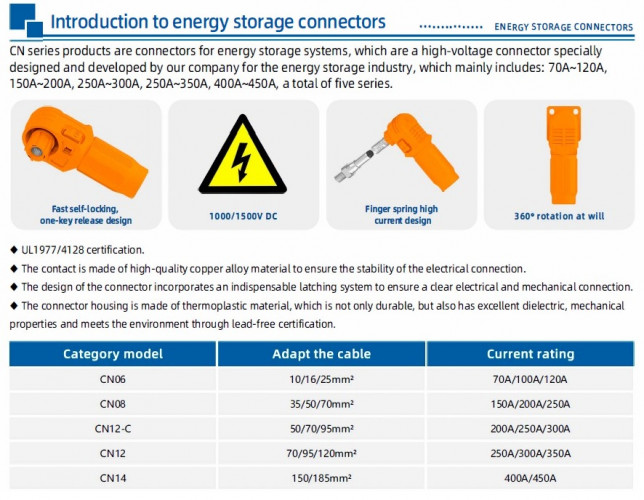

CN series products are connectors for energy storage systems, which are high-voltage connectors specially designed for the energy storage industry, which mainly includes: 70A ~ 120A, 150A ~ 200A, 250A ~ 300A, 250A ~ 350A, 400A ~ 450A. Connectors are UL1977/4128 certified. The contacts are made of high-quality copper alloy to ensure the reliability of the electrical connection. The design of the connector includes a reliable fixation system that ensures a high-quality electrical and mechanical connection. The body of the connector is made of thermoplastic material, which is not only durable, but also has excellent dielectric and mechanical properties, and meets environmental requirements thanks to the lead-free certification. Screws and cables are not included. Available colors: orange or red for positive pole (+), black for negative pole (-).
Documentation JC-CN08-S-03-LM Socket connector for energy storage systems 150A/200A, 1500V DC, black

Download instructions, catalog for JC-CN08-S-03-LM Socket connector for energy storage systems 150A/200A, 1500V DC, black
