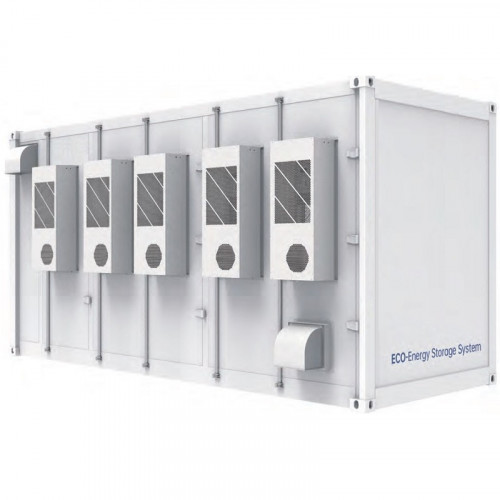

Air-cooled Battery Container ECO B20FT3404WS LiFePO4
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Control:
BMS (battery management system)
Energy, kW/h:
3 404
Cell compose method:
10P380S
Dimensions, mm:
6085x2438x3100
Protection:
IP55
Charge/Discharge Rate:
0,5P
See all
Documentation
Categories
Favorite
Compare

Products from the same category

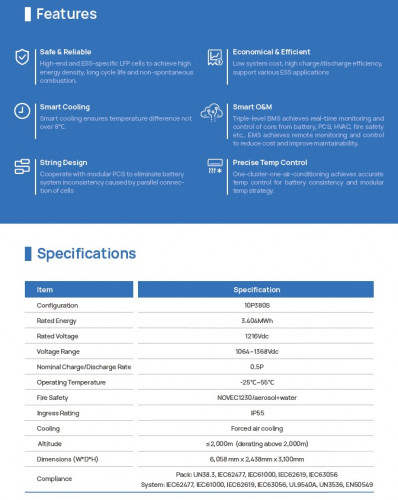

Features Air-cooled Battery Container ECO B20FT3404WS LiFePO4
Producer | BTS Engineering |
Control | BMS (battery management system) |
Energy, kW/h | 3 404 |
Cell compose method | 10P380S |
Dimensions, mm | 6085x2438x3100 |
Protection | IP55 |
Charge/Discharge Rate | 0,5P |
Temperature range | -25°C~55°C |
Rated voltage, V | 1216V |
Voltage range, V | 1064-1368 |
Type | LiFePO4, LFP lithium iron phosphate rechargeable batteries |
Country of Origin | China |
Warranty, months | 12 |
Description Air-cooled Battery Container ECO B20FT3404WS LiFePO4

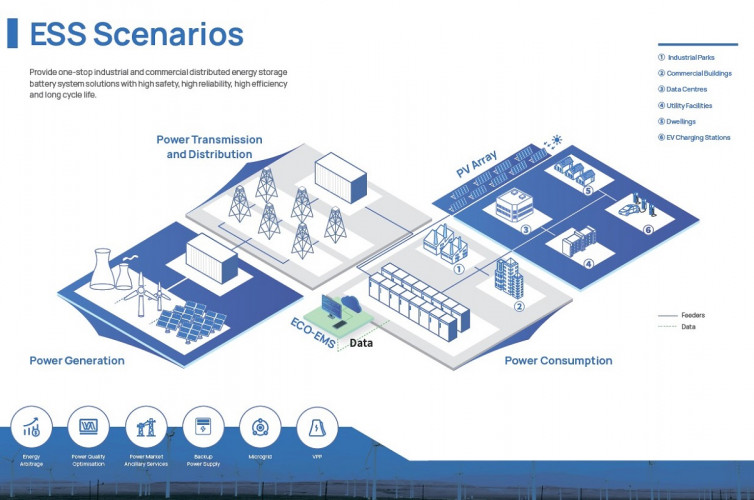

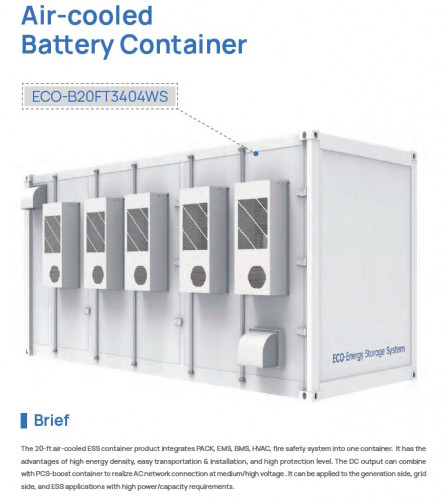

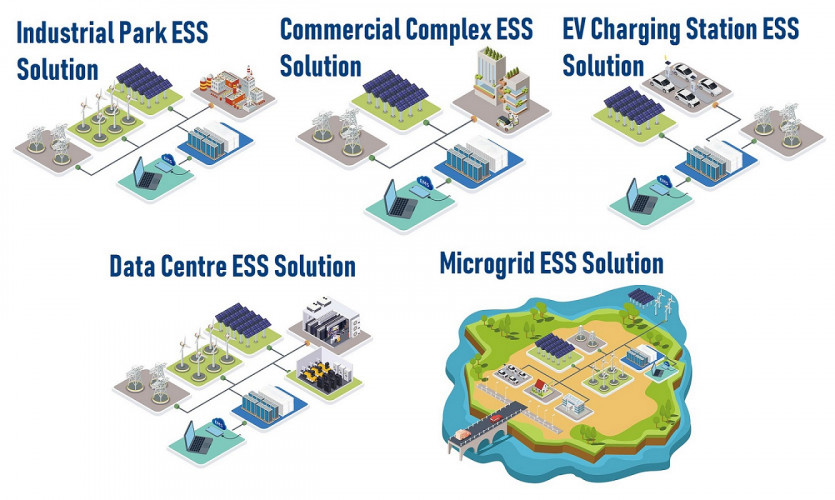

The 20-foot ESS (Energy Storage System) air-cooled container integrates PACK, EMS, BMS, HVAC, fire safety systems in one container. It has the advantages of high energy density, easy transportation and installation, and a high level of protection. The DC output can be combined with a PCS-boost container to implement a medium/high voltage AC connection. It can be applied on generation side, grid side and in ESS systems with high power/capacity requirements.
The price indicated is an indicative price for 1 kW of energy storage, for an accurate calculation of the cost of the product, you need to fill out the Questionnaire.
Documentation Air-cooled Battery Container ECO B20FT3404WS LiFePO4
Download instructions, catalog for Air-cooled Battery Container ECO B20FT3404WS LiFePO4
