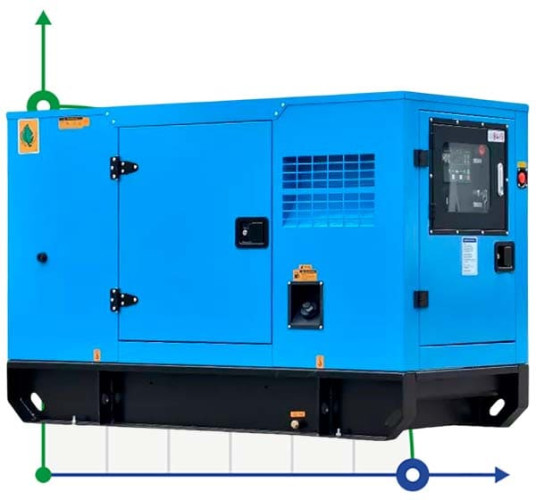

Industrial diesel generator XHYC-40GF with ATS, engine Cummins 40kVA, 36kW, 380V/50HZ closed type
Industrial diesel generator XHYC-40GF with ATS, engine Cummins 40kVA, 36kW, 380V/50HZ closed type
Industrial diesel generator XHYC-40GF with ATS, engine Cummins 40kVA, 36kW, 380V/50HZ closed type
Brand:
XINHONGYUANCharacteristics
Producer:
XINHONGYUAN
Alternator model:
HYF-40
Fuel type:
diesel fuel
Dimensions, mm:
1500x600x1100
Rated power, kW:
36
Bore * stroke, mm:
102x120
Generator type:
closed
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Industrial diesel generator XHYC-1000GF* with ATS, engine Cummins 1250kVA, 1000kW, 380V/50HZ open type
Pre-order only
$187,356.91
Industrial diesel generator XHYC-1000GF with ATS, engine Cummins 1250kVA, 1000kW, 380V/50HZ open type
Pre-order only
$240,955.94
Industrial diesel generator XHYC-20GF with ATS, engine Cummins 20kVA, 20kW, 380V/50HZ closed type
Pre-order only
$14,957.87
Industrial diesel generator XHYC-50GF with ATS, engine Cummins 50kVA, 50kW, 380V/50HZ closed type
Pre-order only
$18,665.38
Industrial diesel generator XHYC-120GF with ATS, engine Cummins 125kVA, 120kW, 380V/50HZ closed type
Pre-order only
$21,056.08
Industrial diesel generator XHYC-250GF with ATS, engine Cummins 300kVA, 250kW, 380V/50HZ closed type
Pre-order only
$39,408.24
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Industrial diesel generator XHYC-40GF with ATS, engine Cummins 40kVA, 36kW, 380V/50HZ closed type
Producer | XINHONGYUAN |
Alternator model | HYF-40 |
Fuel type | diesel fuel |
Dimensions, mm | 1500x600x1100 |
Rated power, kW | 36 |
Bore * stroke, mm | 102x120 |
Generator type | closed |
Model | XHYC-40GF |
Rated power, kVA | 40 |
Engine manufacturer | Cummins |
Frequency, Hz | 50 |
Oil capacity, l | 9,5 |
Rated voltage, V | 380V |
Compression ratio | 16,5:1 |
Engine model | 4BT3.9-G2 |
Fuel consumption, g/kW/h | 214 |
Country of Origin | China |
Warranty, months | 12 months but not more than 1000 motor hours |
Weight, kg | 680 (open) |
Description Industrial diesel generator XHYC-40GF with ATS, engine Cummins 40kVA, 36kW, 380V/50HZ closed type
XINHONGYUAN diesel generator with a Cummins engine of closed type. The generator includes ATS - a voltage monitoring system and automatic generator start in case of a power failure from the external power supply. The generator can be supplied in two versions: open and closed (silent). The diesel generator is suitable for industrial use as an emergency power source. It can be used to successfully maintain the infrastructure of public buildings, commercial and agricultural enterprises, as well as used as an emergency power supply system for buildings.
Documentation Industrial diesel generator XHYC-40GF with ATS, engine Cummins 40kVA, 36kW, 380V/50HZ closed type
Download instructions, catalog for Industrial diesel generator XHYC-40GF with ATS, engine Cummins 40kVA, 36kW, 380V/50HZ closed type
