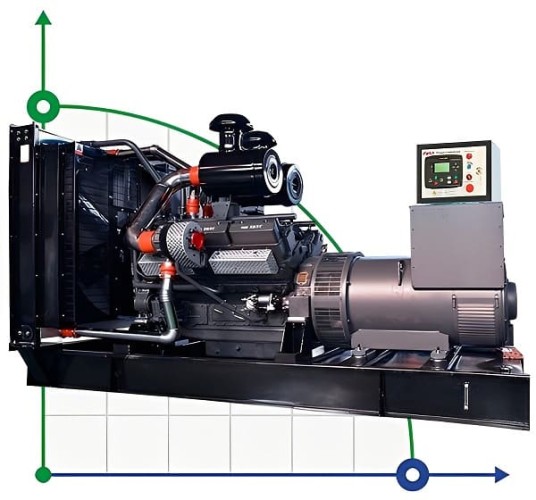

Industrial diesel generator XHYS-350GF with ATS, engine Kaipu 400kVA, 350kW, 380V/50HZ open type
Brand:
XINHONGYUANCharacteristics
Producer:
XINHONGYUAN
Alternator model:
HYF-400
Fuel type:
diesel fuel
Dimensions, mm:
3100x1400x1700
Rated power, kW:
350
Bore * stroke, mm:
135x165
Generator type:
open
See all
Documentation
Categories
Favorite
Compare

Products from the same category




Features Industrial diesel generator XHYS-350GF with ATS, engine Kaipu 400kVA, 350kW, 380V/50HZ open type
Producer | XINHONGYUAN |
Alternator model | HYF-400 |
Fuel type | diesel fuel |
Dimensions, mm | 3100x1400x1700 |
Rated power, kW | 350 |
Bore * stroke, mm | 135x165 |
Generator type | open |
Model | XHYS-350GF |
Rated power, kVA | 400 |
Engine manufacturer | Kaipu |
Frequency, Hz | 50 |
Oil capacity, l | 33 |
Rated voltage, V | 380V |
Compression ratio | 15.75:1 |
Engine model | KP425 |
Fuel consumption, g/kW/h | 210 |
Country of Origin | China |
Warranty, months | 12 months but not more than 1000 motor hours |
Weight, kg | 3 300 |
Description Industrial diesel generator XHYS-350GF with ATS, engine Kaipu 400kVA, 350kW, 380V/50HZ open type
XINHONGYUAN diesel generator with an open-type Kaipu engine. The generator includes ATS - a voltage monitoring system and automatic generator start in case of a power failure from the external power supply. The generator can be supplied in two versions: open and closed (silent). The diesel generator is suitable for industrial use as an emergency power source. It can be used to successfully maintain the infrastructure of public buildings, commercial and agricultural enterprises, as well as used as an emergency power supply system for buildings.
Documentation Industrial diesel generator XHYS-350GF with ATS, engine Kaipu 400kVA, 350kW, 380V/50HZ open type
Download instructions, catalog for Industrial diesel generator XHYS-350GF with ATS, engine Kaipu 400kVA, 350kW, 380V/50HZ open type
