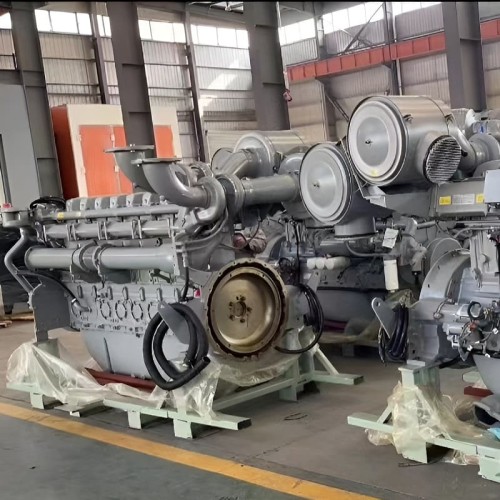

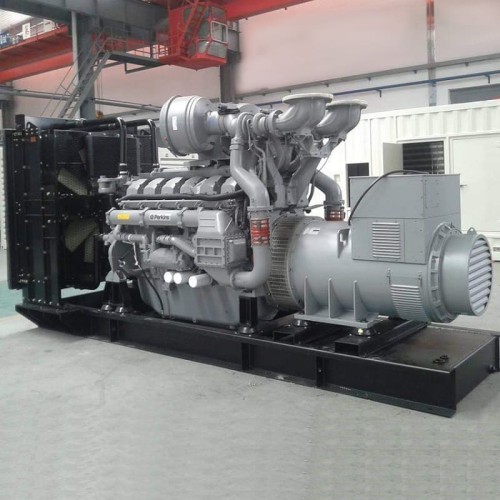

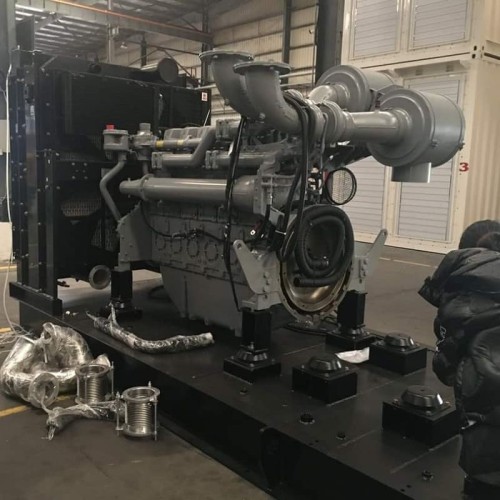

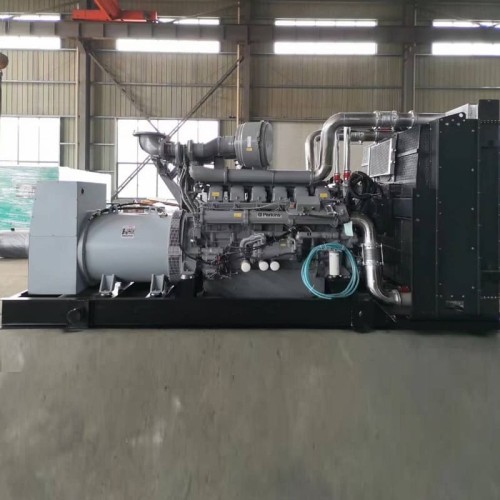

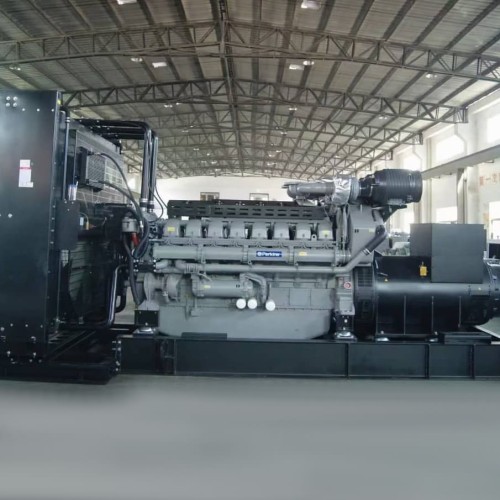

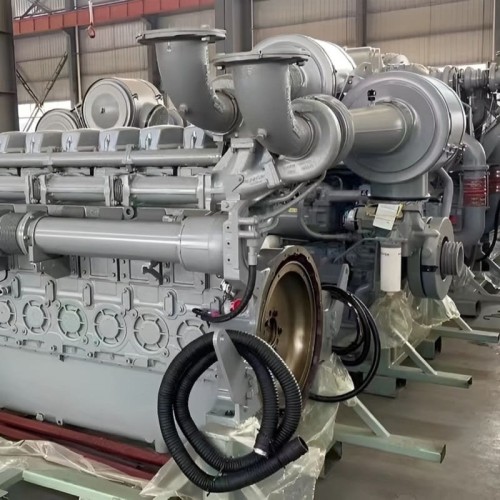

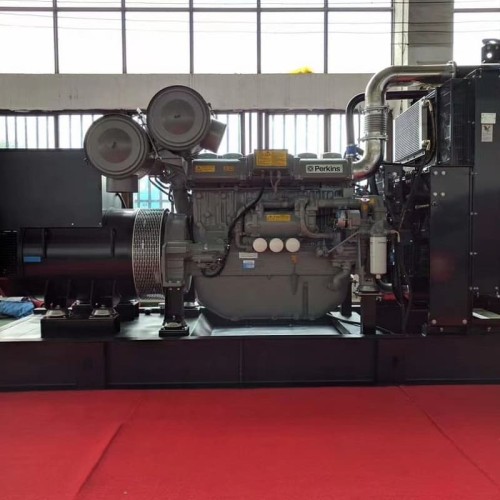

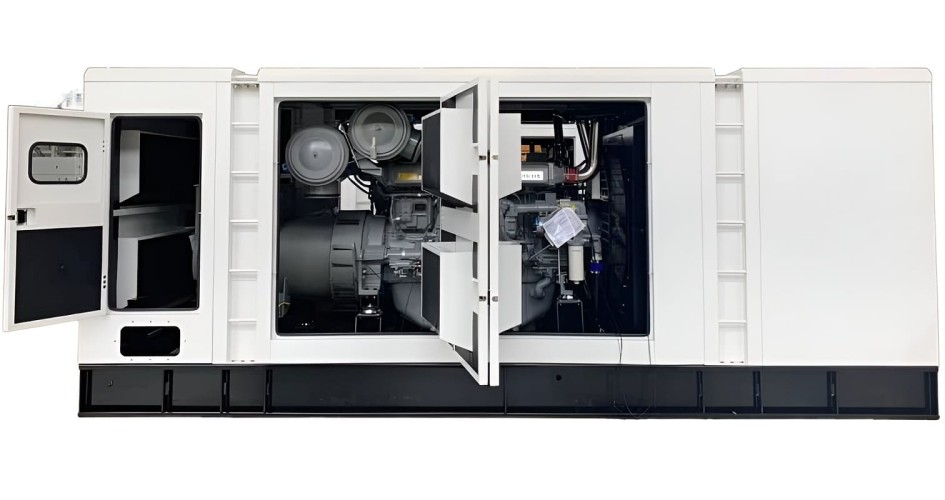

Industrial diesel generator XHYP-1200GF with ATS, engine Perkins 1600kVA, 1200kW, 380V/50HZ closed type
Brand:
XINHONGYUANCharacteristics
Producer:
XINHONGYUAN
Alternator model:
HYF-1600
Fuel type:
diesel fuel
Dimensions, mm:
4900x1870x2350
Rated power, kW:
1 200
Bore * stroke, mm:
160x190
Generator type:
closed
See all
Documentation
Categories
Favorite
Compare

Products from the same category




Features Industrial diesel generator XHYP-1200GF with ATS, engine Perkins 1600kVA, 1200kW, 380V/50HZ closed type
Producer | XINHONGYUAN |
Alternator model | HYF-1600 |
Fuel type | diesel fuel |
Dimensions, mm | 4900x1870x2350 |
Rated power, kW | 1 200 |
Bore * stroke, mm | 160x190 |
Generator type | closed |
Model | XHYP-1200GF |
Rated power, kVA | 1 600 |
Engine manufacturer | Perkins |
Frequency, Hz | 50 |
Oil capacity, l | 177 |
Rated voltage, V | 380V |
Compression ratio | 13.6:1 |
Engine model | 4012-46TAG2A |
Fuel consumption, g/kW/h | 212 |
Country of Origin | China |
Warranty, months | 12 months but not more than 1000 motor hours |
Weight, kg | 11850 (open) |
Description Industrial diesel generator XHYP-1200GF with ATS, engine Perkins 1600kVA, 1200kW, 380V/50HZ closed type

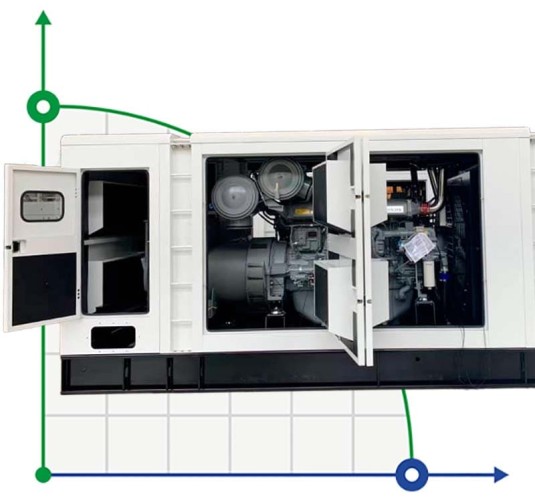

XINHONGYUAN diesel generator with a closed-type Perkins engine. The generator includes ATS - a voltage monitoring system and automatic generator start in case of a power failure from the external power supply. The generator can be supplied in two versions: open and closed (silent). The diesel generator is suitable for industrial use as an emergency power source. It can be used to successfully maintain the infrastructure of public buildings, commercial and agricultural enterprises, as well as used as an emergency power supply system for buildings.
