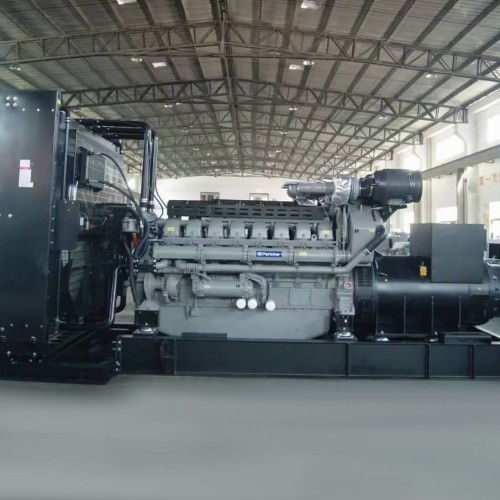

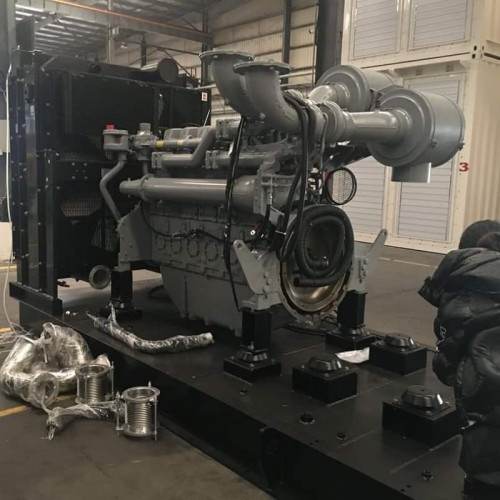

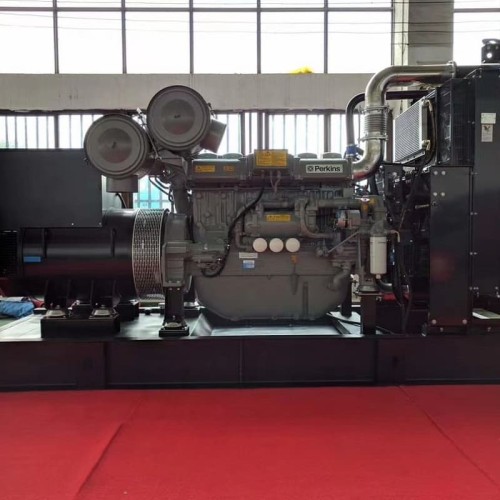

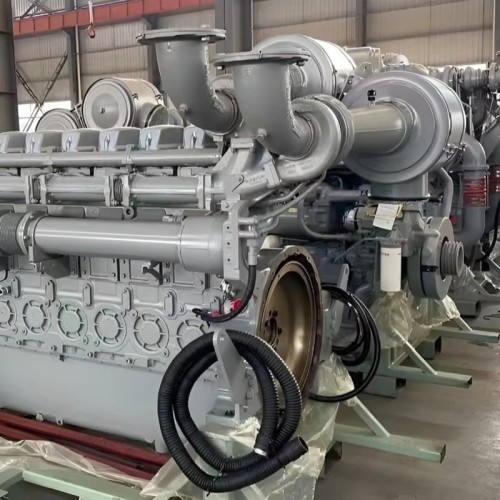

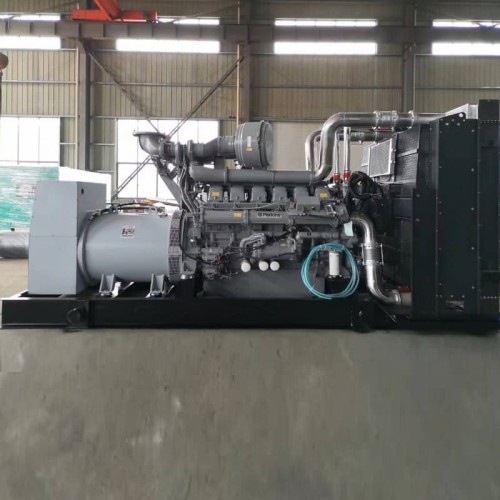

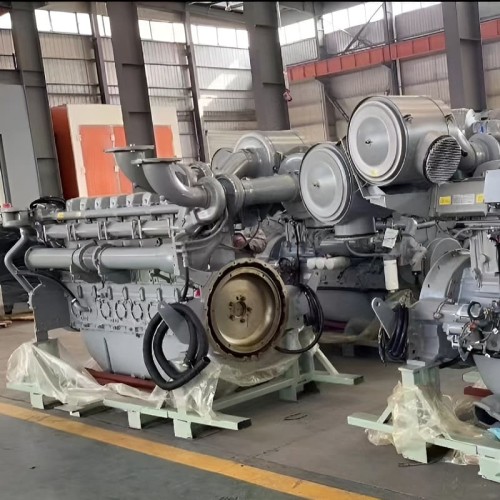

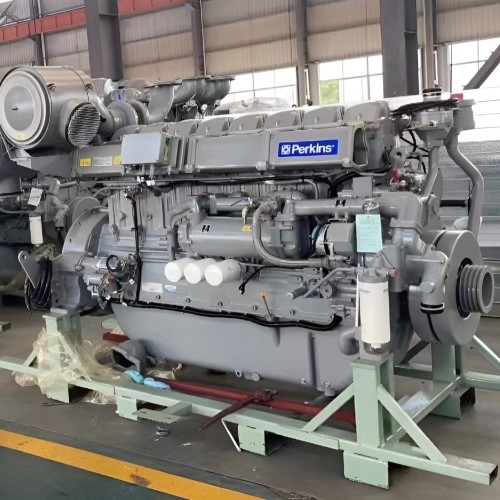

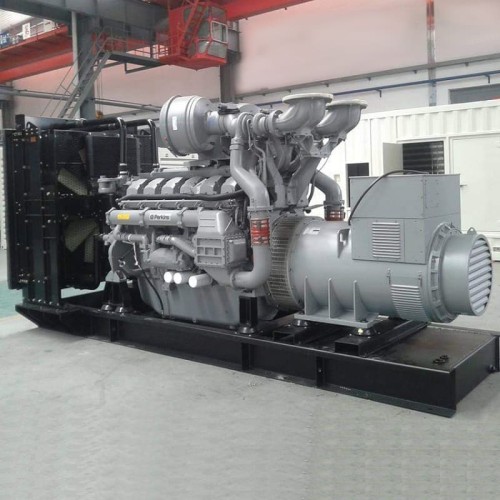

Industrial diesel generator XHYP-1500GF with ATS, engine Perkins 1850kVA, 1500kW, 380V/50HZ closed type
Brand:
XINHONGYUANCharacteristics
Alternator model:
HYF-1850
Producer:
XINHONGYUAN
Fuel type:
diesel fuel
Rated power, kW:
1 500
Bore * stroke, mm:
160x190
Generator type:
closed
Dimensions, mm:
5600x2780x3100
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Industrial diesel generator XHYP-1500GF with ATS, engine Perkins 1850kVA, 1500kW, 380V/50HZ closed type
Alternator model | HYF-1850 |
Producer | XINHONGYUAN |
Fuel type | diesel fuel |
Rated power, kW | 1 500 |
Bore * stroke, mm | 160x190 |
Generator type | closed |
Dimensions, mm | 5600x2780x3100 |
Rated power, kVA | 1 850 |
Engine manufacturer | Perkins |
Model | XHYP-1500GF |
Frequency, Hz | 50 |
Oil capacity, l | 213 |
Rated voltage, V | 380V |
Compression ratio | 13.6:1 |
Engine model | 4016TAG1A |
Fuel consumption, g/kW/h | 208 |
Country of Origin | China |
Warranty, months | 12 months but not more than 1000 motor hours |
Weight, kg | 12000 (open) |
Description Industrial diesel generator XHYP-1500GF with ATS, engine Perkins 1850kVA, 1500kW, 380V/50HZ closed type

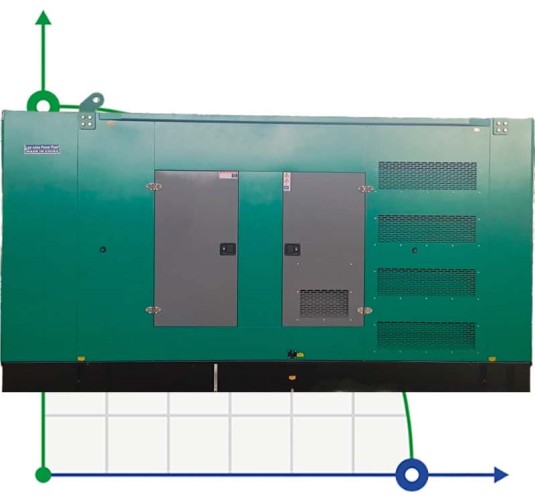

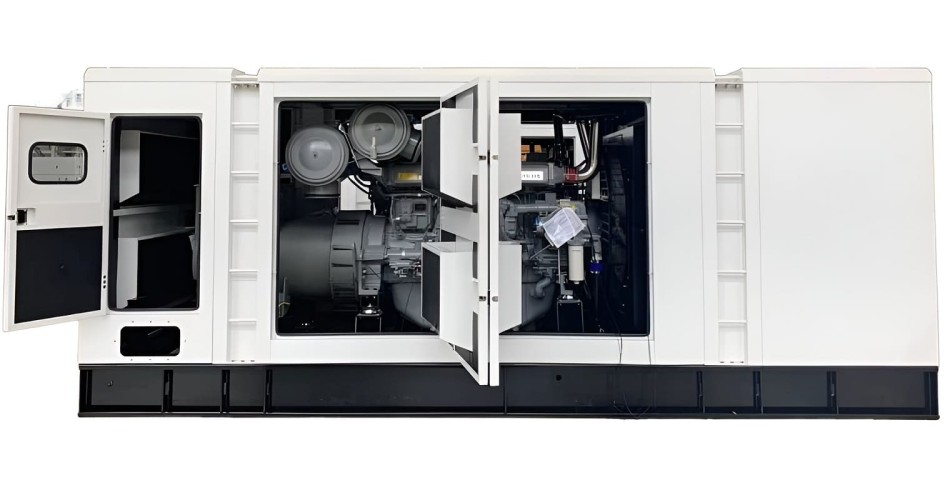

XINHONGYUAN diesel generator with a closed-type Perkins engine. The generator includes ATS - a voltage monitoring system and automatic generator start in case of a power failure from the external power supply. The generator can be supplied in two versions: open and closed (silent). The diesel generator is suitable for industrial use as an emergency power source. It can be used to successfully maintain the infrastructure of public buildings, commercial and agricultural enterprises, as well as used as an emergency power supply system for buildings.
Documentation Industrial diesel generator XHYP-1500GF with ATS, engine Perkins 1850kVA, 1500kW, 380V/50HZ closed type
Download instructions, catalog for Industrial diesel generator XHYP-1500GF with ATS, engine Perkins 1850kVA, 1500kW, 380V/50HZ closed type
