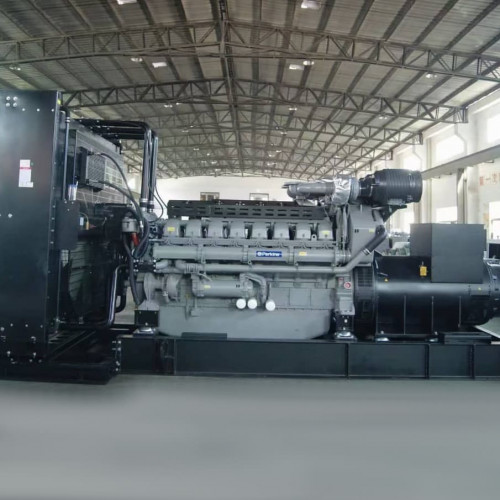

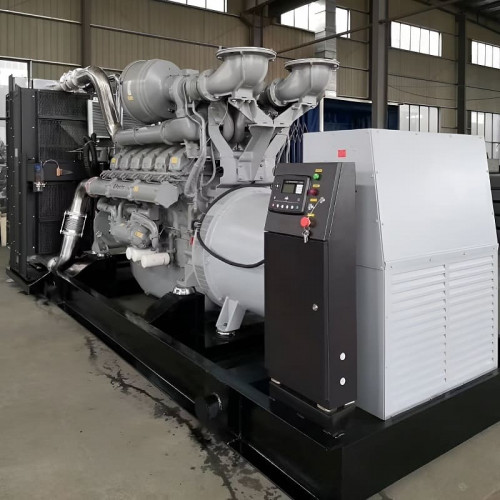

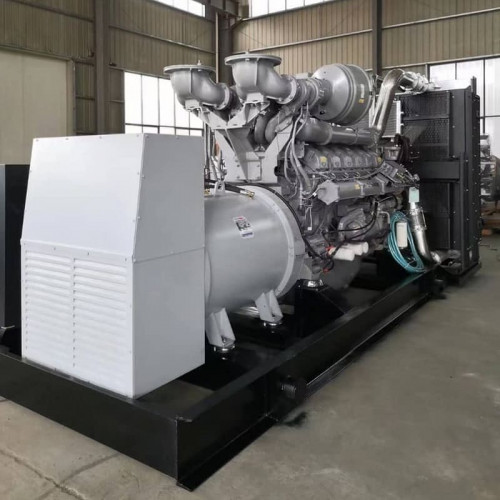

Industrial diesel generator XHYP-1600GF with ATS, engine Perkins 2000kVA, 1600kW, 380V/50HZ open type

Characteristics
Producer:
XINHONGYUAN
Alternator model:
HYF-2000
Fuel type:
diesel fuel
Dimensions, mm:
5600x2780x3100
Rated power, kW:
1 600
Bore * stroke, mm:
160x190
Generator type:
open
See all
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1039868
$410,766.11 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Industrial diesel generator XHYP-1600GF with ATS, engine Perkins 2000kVA, 1600kW, 380V/50HZ open type
Producer
XINHONGYUAN
Alternator model
HYF-2000
Fuel type
diesel fuel
Dimensions, mm
5600x2780x3100
Rated power, kW
1 600
Bore * stroke, mm
160x190
Generator type
open
Model
XHYP-1600GF
Rated power, kVA
2 000
Engine manufacturer
Perkins
Frequency, Hz
50
Oil capacity, l
213
Rated voltage, V
380V
Compression ratio
13.6:1
Engine model
4016TAG2A
Fuel consumption, g/kW/h
208
Country of Origin
China
Warranty, months
12 months but not more than 1000 motor hours
Weight, kg
12 000
Description Industrial diesel generator XHYP-1600GF with ATS, engine Perkins 2000kVA, 1600kW, 380V/50HZ open type
XINHONGYUAN diesel generator with an open-type Perkins engine. The generator includes ATS, which is a voltage monitoring system and automatic generator start in case of a power failure from the external power supply. The generator can be supplied in two versions: open and closed (silent). The diesel generator is suitable for industrial use as an emergency power source. It can be used to successfully maintain the infrastructure of public buildings, commercial and agricultural enterprises, as well as used as an emergency power supply system for buildings.
Documentation Industrial diesel generator XHYP-1600GF with ATS, engine Perkins 2000kVA, 1600kW, 380V/50HZ open type

Download instructions, catalog for Industrial diesel generator XHYP-1600GF with ATS, engine Perkins 2000kVA, 1600kW, 380V/50HZ open type
