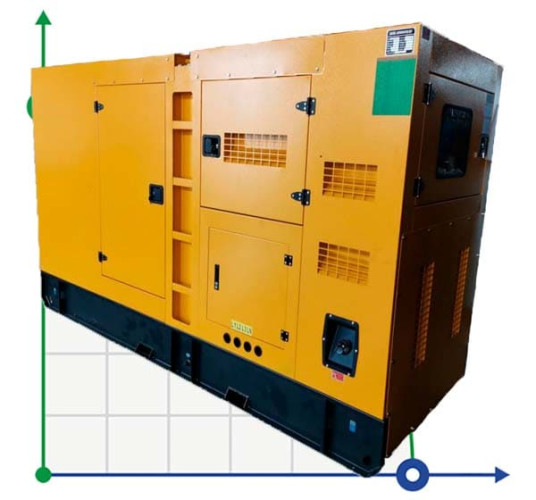

Industrial diesel generator VLAIS KDE-100T with ATS, engine Ricardo 100kVA, 80kW, 380V/50HZ closed type

Brand:
VLAIS
Characteristics
Producer:
VLAIS
Alternator model:
CP-274C/80kW
Fuel type:
diesel fuel
Rate of turn, rpm:
1 500
Operating temperature:
-18°C +50°C
Dimensions, mm:
2800x1080x1500
Rated power, kW:
80
See all
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1039706
$16,888.33 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features Industrial diesel generator VLAIS KDE-100T with ATS, engine Ricardo 100kVA, 80kW, 380V/50HZ closed type
Producer
VLAIS
Alternator model
CP-274C/80kW
Fuel type
diesel fuel
Rate of turn, rpm
1 500
Operating temperature
-18°C +50°C
Dimensions, mm
2800x1080x1500
Rated power, kW
80
Bore * stroke, mm
105x130
Generator type
closed
Model
KDE-100T
Tank volume
150
Rated power, kVA
100
Fuel consumption at full load, (l/h)
26
Engine manufacturer
Ricardo
Frequency, Hz
50
Insulation grade
H
Rated voltage, V
380V
Maximum power, kW
88
Rated current, A
152
Maximum power, kVA
110
Engine model
6105AZLD/121kW
Country of Origin
China
Warranty, months
12 months but not more than 1000 motor hours
Weight, kg
1 300
Description Industrial diesel generator VLAIS KDE-100T with ATS, engine Ricardo 100kVA, 80kW, 380V/50HZ closed type
VLAIS diesel generator with control panel and Ricardo engine of closed type. Includes ATS - a voltage monitoring system and automatic generator start in the event of a power failure from the external power supply. Diesel engine: 4-cylinder, 4-stroke, in-line, direct injection, naturally aspirated or turbocharged, water-cooled, equipped with an electric starter. The starting system is an electric starter. The generator is equipped with an automatic voltage regulator (AVR) and a single bearing. The control panel displays voltage, current, frequency, water temperature and oil pressure. The generator has protection against high cooling water temperature, low oil pressure, high and low frequency protection, high and low voltage protection. To ensure safe transport, the generator is supplied without a battery.

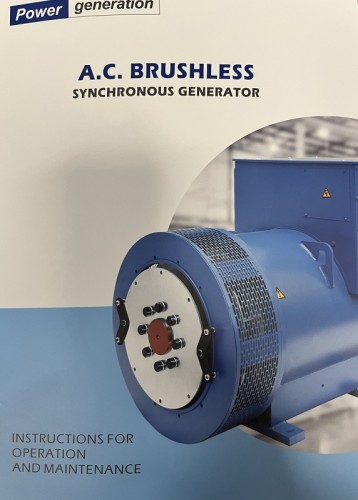

Documentation Industrial diesel generator VLAIS KDE-100T with ATS, engine Ricardo 100kVA, 80kW, 380V/50HZ closed type

Download instructions, catalog for Industrial diesel generator VLAIS KDE-100T with ATS, engine Ricardo 100kVA, 80kW, 380V/50HZ closed type
