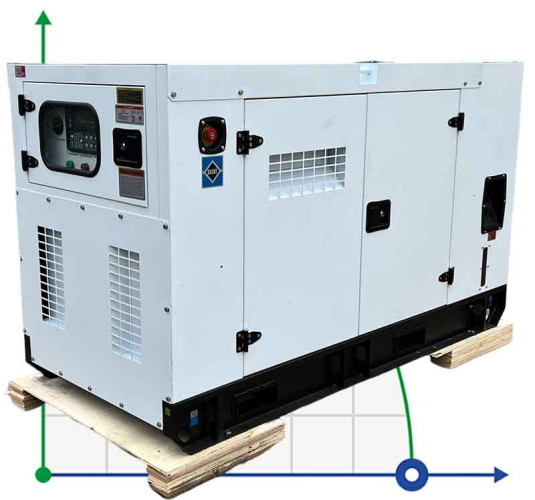

Industrial diesel generator KDE-25000 with ATS, engine Ricardo 25kVA, 20kW, 380V/50HZ closed type
Brand:
VLAISCharacteristics
Alternator model:
CP-184F/22kW
Producer:
VLAIS
Fuel type:
diesel fuel
Control panel:
Mebay DC52D
Rated power, kW:
20
Bore * stroke, mm:
100x115
Generator type:
closed
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Industrial diesel generator KDE-25000 with ATS, engine Ricardo 25kVA, 20kW, 380V/50HZ closed type
Alternator model | CP-184F/22kW |
Producer | VLAIS |
Fuel type | diesel fuel |
Control panel | Mebay DC52D |
Rated power, kW | 20 |
Bore * stroke, mm | 100x115 |
Generator type | closed |
Rate of turn, rpm | 1500/1800 |
Operating temperature | -18°C +50°C |
Dimensions, mm | 2000х1020х1200 |
Tank volume | 70 |
Rated power, kVA | 25 |
Fuel consumption at full load, (l/h) | 5,6 |
Engine manufacturer | Ricardo |
Model | KDE-25000 |
Frequency, Hz | 50 |
Insulation grade | H |
Rated voltage, V | 380V |
Maximum power, kW | 22 |
Rated current, A | 36,1 |
Maximum power, kVA | 27,5 |
Engine model | K4100D/30.1kW |
Country of Origin | China |
Warranty, months | 12 months but not more than 1000 motor hours |
Weight, kg | 850 |
Description Industrial diesel generator KDE-25000 with ATS, engine Ricardo 25kVA, 20kW, 380V/50HZ closed type

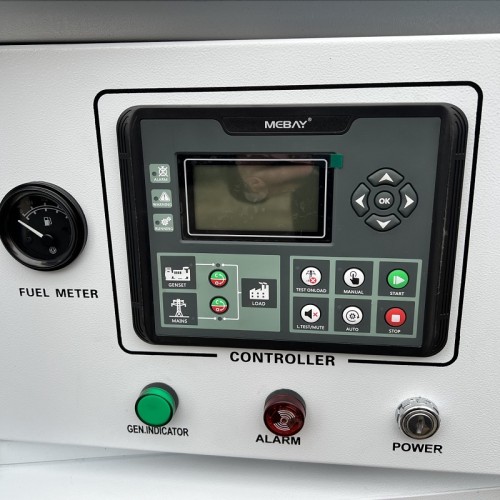

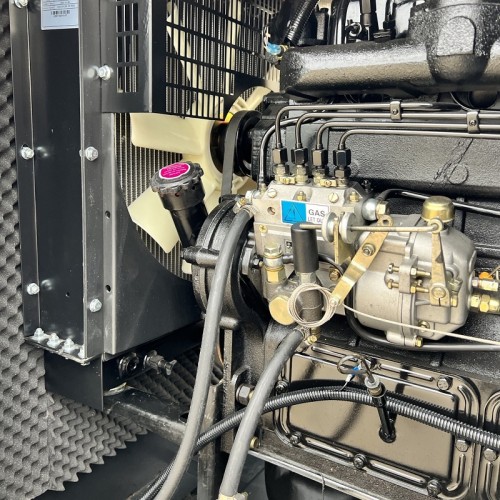

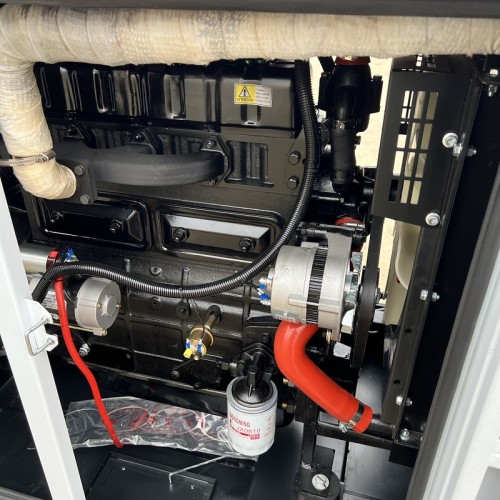

VLAIS diesel generator with control panel and Ricardo engine of closed type. Includes ATS - a voltage monitoring system and automatic generator start in the event of a power failure from the external power supply. Diesel engine: 4-cylinder, 4-stroke, in-line, direct injection, naturally aspirated or turbocharged, water-cooled, equipped with an electric starter. The starting system is an electric starter. The generator is equipped with an automatic voltage regulator (AVR) and a single bearing. The control panel displays voltage, current, frequency, water temperature and oil pressure. The generator has protection against high cooling water temperature, low oil pressure, high and low frequency protection, high and low voltage protection. To ensure safe transport, the generator is supplied without a battery.
