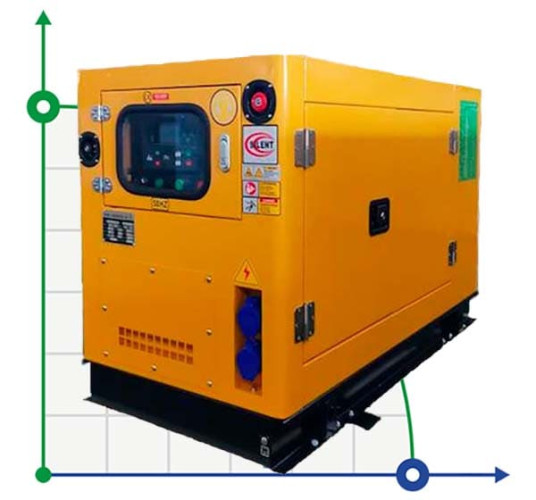

Industrial diesel generator VLAIS KP-PC14 with ATS, engine Ricardo 13.5kVA, 10.8kW, 380V/50+E143:E368
Brand:
VLAISCharacteristics
Producer:
VLAIS
Alternator model:
STF-164C/10.8kW
Fuel type:
diesel fuel
Control panel:
Mebay DC52D
Rate of turn, rpm:
1500/1800
Dimensions, mm:
1710x840x1170
Rated power, kW:
10,8
See all
Documentation
Categories
Favorite
Compare

Products from the same category




Features Industrial diesel generator VLAIS KP-PC14 with ATS, engine Ricardo 13.5kVA, 10.8kW, 380V/50+E143:E368
Producer | VLAIS |
Alternator model | STF-164C/10.8kW |
Fuel type | diesel fuel |
Control panel | Mebay DC52D |
Rate of turn, rpm | 1500/1800 |
Dimensions, mm | 1710x840x1170 |
Rated power, kW | 10,8 |
Bore * stroke, mm | 90x105 |
Generator type | closed |
Model | KP-PC14 |
Tank volume | 40 |
Rated power, kVA | 13,5 |
Fuel consumption at full load, (l/h) | 2,16 |
Engine manufacturer | Ricardo |
Frequency, Hz | 50 |
Insulation grade | H |
Rated voltage, V | 380V |
Rated current, A | 19,45 |
Engine model | K490D/22kW |
Country of Origin | China |
Warranty, months | 12 months but not more than 1000 motor hours |
Weight, kg | 600 |
Description Industrial diesel generator VLAIS KP-PC14 with ATS, engine Ricardo 13.5kVA, 10.8kW, 380V/50+E143:E368
VLAIS diesel generator with control panel and Ricardo engine of closed type. Includes ATS - a voltage monitoring system and automatic generator start in the event of a power failure from the external power supply. The diesel engine is a 4-cylinder, 4-stroke, in-line, direct injection, naturally aspirated or turbocharged, water-cooled, equipped with an electric starter. The starting system is an electric starter. The generator is equipped with an automatic voltage regulator (AVR) and a single bearing. The control panel displays voltage, current, frequency, water temperature and oil pressure. The generator has protection against high cooling water temperature, low oil pressure, high and low frequency protection, high and low voltage protection. To ensure safe transport, the generator is supplied without a battery.
