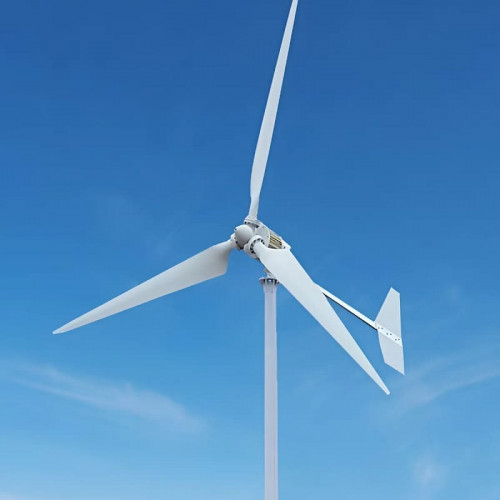

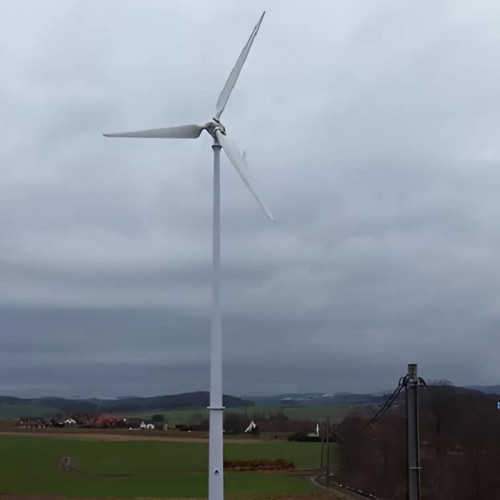

Horizontal wind turbine 10 kW, 380vac
Horizontal wind turbine 10 kW, 380vac
Horizontal wind turbine 10 kW, 380vac
Horizontal wind turbine 10 kW, 380vac
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Housing material:
carbon steel
Survival Speed, m/s:
65
Magnet material:
NdFeB
Blades Material:
reinforced glass fibre
Operating temperature:
-40°C +80°C
Rated power, kW:
10
See all
Categories
Favorite
Compare
Products from the same category
20 kW Set horizontal wind turbine G-Series RX-20KH3 20 kW 380 V, grid-tie inverter controller WWGIT100 20 kW 380 V
Pre-order only
$27,457.63
Set horizontal wind turbine G-Series RX-50KG 50 kW 380 V, grid-tie inverter&controller WWGIT 50 kW 380 V
Pre-order only
$50,847.46
Set horizontal wind turbine G-Series RX-10KG 10 kW 380 V, grid controller FKJ-GT 10 kW 380 V, three-phase grid inverter 10 kW 380 V
Pre-order only
$15,980.63
DK-Series RX-250DK 250 kW horizontal wind generator
Pre-order only
$227,178.02
DK-Series RX-300DK 300 kW horizontal wind generator
Pre-order only
$421,559.42
DK-Series RX-500DK 500 kW horizontal wind generator
Pre-order only
$696,108.07
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Horizontal wind turbine 10 kW, 380vac
Producer | BTS Engineering |
Housing material | carbon steel |
Survival Speed, m/s | 65 |
Magnet material | NdFeB |
Blades Material | reinforced glass fibre |
Operating temperature | -40°C +80°C |
Rated power, kW | 10 |
Wind Generator Type | Three phase permanent magnet AC synchronous generator |
Service life, years | 20 |
Model | ES-10k |
Wheel Diameter, m | 7,2 |
Blades Quantity | 3 |
Rated voltage, V | 380V |
Maximum power, kW | 13 |
Start Up Speed, m/s | 1 |
Rated Speed, m/s | 10 |
Overload Protection | electromagnet/wind wheel yaw |
Country of Origin | China |
Description Horizontal wind turbine 10 kW, 380vac
1. Carbon steel housing, compact, safe
2. Reinforced fibreglass blades with optimised aerodynamic shape and structure to improve wind energy utilisation and wind turbine performance.
3. Patented permanent magnet AC generator with special stator, effectively reducing torque, combining wind wheel and generator well and ensuring the performance of the whole system.
4. The tail adopts mechanical yawing technique, which enables it to survive the storm and operate safely
5. With zinc-rich epoxy primer and polyurethane anti-corrosion treatment, the wind turbine is UV protected, acid rain resistant, salt resistant.
