Saddle-shaped nozzle Interpack, AISI 304, 10x0,3 mm, VFF
Brand:
VFFCharacteristics
Producer:
VFF
Pour density, kg/m3:
600
Specific surface area, m2/m3:
620
Dimensions, mm:
10x0,3
Nozzle type:
Interpack
Void factor, %:
92
Diameter, mm:
10
See all
Categories
Favorite
Compare

Products from the same category

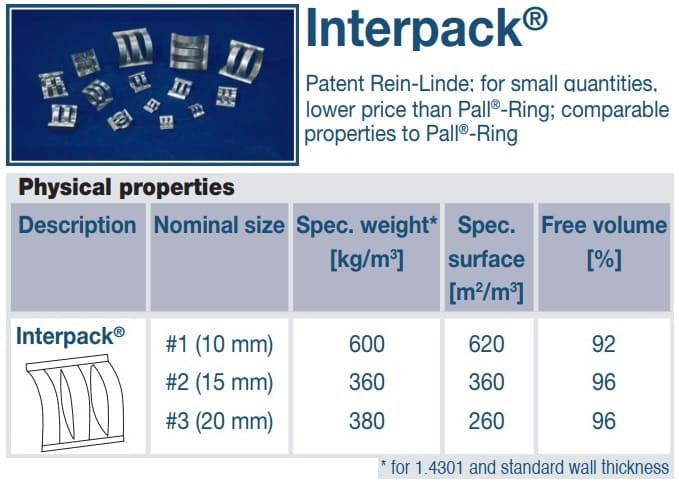

Features Saddle-shaped nozzle Interpack, AISI 304, 10x0,3 mm, VFF
Producer | VFF |
Pour density, kg/m3 | 600 |
Specific surface area, m2/m3 | 620 |
Dimensions, mm | 10x0,3 |
Nozzle type | Interpack |
Void factor, % | 92 |
Diameter, mm | 10 |
Material | AISI 304 stainless steel |
Country of Origin | Germany |
Analogue for | AMACS, Koch-Glitsch, Christy Catalytics, НКС DOLSIN, Ultimo Engineers, Munters, MACH Engineering LLC, Pall Ring Company, MTE |

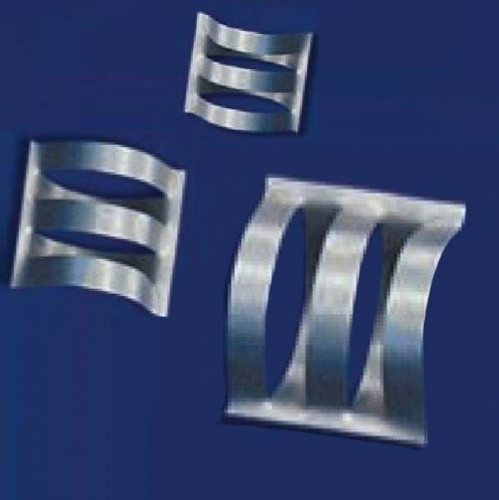

Description Saddle-shaped nozzle Interpack, AISI 304, 10x0,3 mm, VFF
The Interpack metal saddle-shaped nozzle was invented by the American scientist Norton in 1978, This is a new type of irregular nozzle. In the late 70s, two similar products were also invented. One of them is a metal rectangular saddle-shaped nozzle, the other is a metal ring with a double arc. Two bends on the nozzle increase the mechanical strength of the nozzle and its stability. This type of saddle-shaped nozzle has an increased chemical resistance and mechanical density due to its surface. These properties increase their efficiency and service life by 30%. During cyclic operation, the nozzle elements show a high level of heat resistance.
