Ceramic structured packing 400Y

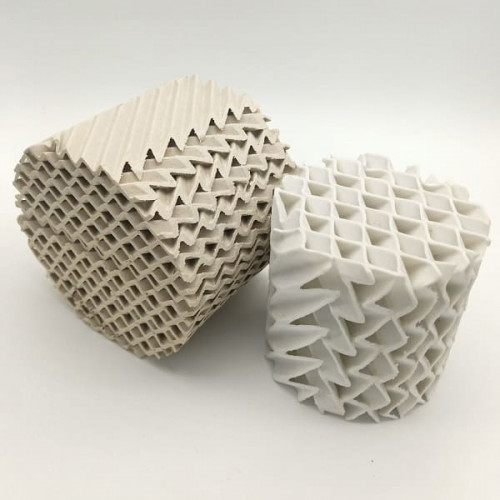

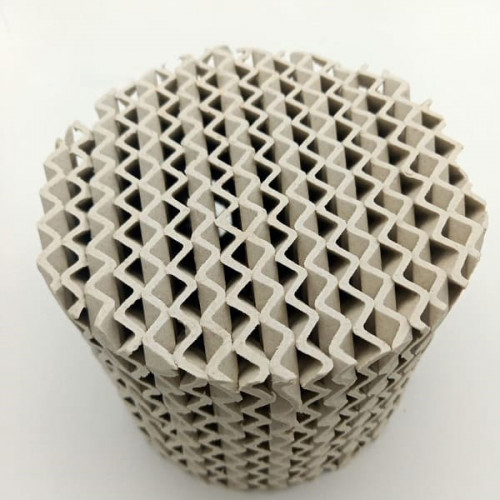

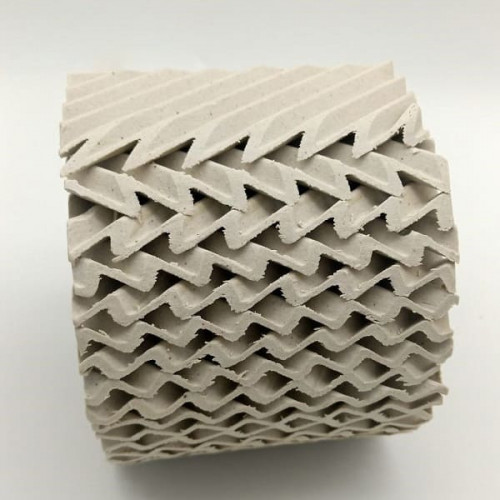

Ceramic structured packing 400Y Keywords: ceramic structured packing, ceramic corrugated packing, ceramic lightweight packing, ceramic packing Application ● Rectification of organic halide. ● rectification and absorption of some aggressive mixtures, which are certainly regulated by the pressure drop and the theoretical plate number. ● It is used in columns that contain a large amount of natural media that are used to absorb nitric acid and concentrated sulfuric acid, as well as for air purification in chemical plants. ● Operation in vacuum conditions at a lower absolute pressure of 100pa. ● Used in heat exchanger and cleaning, or as a catalyst carrier. A ceramic structured packing consists of many units of the same geometric design. Corrugated sheets, placed in parallel, create cylindrical blocks called a column packing. This is a form of high-quality packing with separation efficiency several times higher than that of a bulk packing. They have the quality of a low pressure drop, increased operational elasticity, minimal reinforcing effect and maximum liquid treatment compared to a bulk packing. Advantages ● High productivity The new column design can reduce the diameter, while the reconstruction of the old columns can significantly reduce the throughput. ● High separation efficiency. Since it has a much larger specific surface area in comparison with an irregular packing. ● Low pressure drop, which leads to a significant reduction in energy consumption. ● Greater flexibility and economies of scale are not obvious. ● Suitable for all column diameters. ● High corrosion resistance for alkalis and acids, especially to H2S, naphthenic acid and Cl -. Application: ● Rectification of organic halide. ● Absorption of several aggressive mixtures, which are determined by the pressure drop and the theoretical plate number. ● It is used in some columns that contain a large amount of natural media, which are used to absorb nitric acid and concentrated sulfuric acid, as well as to purify the air in chemical plants. ● Operation in vacuum conditions at a lower absolute pressure of 100pa. ● Used in heat exchanger and purification, or as a catalyst carrier. Chemical composition: SiO2 ≥72% Fe2O3≤0.5% CaO ≤1.0% Al2O3 ≥23% MgO ≤1.0% Other- 2% Physical properties: Specific weight (g/cm3) - 2.5 Water absorption (wt. %) ≤ 0.5 Acid resistance (wt. %) ≥99.5% Incineration losses (wt. %) ≤ 5.0 Maximum operating temperature, °C - 800 Crushing strength (MPa) - ≥130% Mohs hardness - ≥7 Specific surface area (m2 / m3) - 400 Void ratio, a - 75 Angle - 450 Pressure drop (mmHg/m) - 3 Theoretical number of plates, m-1 - 3 Hydraulic diameter, mm - 8 Liquid load (m3/m2h) - 0.2-100 Max. coefficient,m/s (kg/m3)-1 - 2.0
