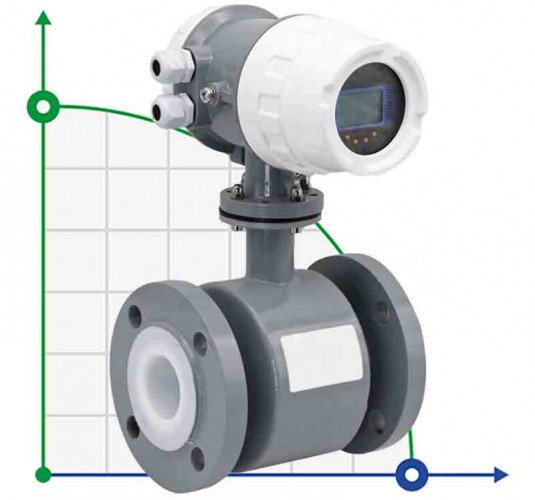

KLD-DN65/PN16 carbon steel electromagnetic flowmeter (condensate, conductivity >20 μS/cm, 0.9982 kg/m³, 5–110 °C), 10–30 m³/h, 4–20 mA + RS485
KLD-DN65/PN16 carbon steel electromagnetic flowmeter (condensate, conductivity >20 μS/cm, 0.9982 kg/m³, 5–110 °C), 10–30 m³/h, 4–20 mA + RS485
KLD-DN65/PN16 carbon steel electromagnetic flowmeter (condensate, conductivity >20 μS/cm, 0.9982 kg/m³, 5–110 °C), 10–30 m³/h, 4–20 mA + RS485
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Housing material:
carbon steel
Control signal, mA:
4-20mA+RS485
Electrode material:
AISI 316L
Flow range:
10...30 m3/h
Working pressure, bar:
1-6
Explosion protection:
No
See all
Documentation
Favorite
Compare
Products from the same category
DN65 Расходомер (ротаметр) из нержавеющей стали KLZDN65/PN16 (дизельное топливо 820-840 кг/м3, 20-40°C) 4000~40000 л/ч
Pre-order only
$1,348
DN50 Electromagnetic flow meter KLD-DN50/PN6 (for 35% hydrochloric acid 10-30°C), 30m3/h, 4-20mA+RS485
Pre-order only
$882
6ES5710-8MA21, SIMATIC, Standard mounting rail 35mm, Length 530 mm for 600 mm cabinets
Pre-order only
$70
6ES7512-1DM03-0AB0, SIMATIC DP, CPU 1512SP-1 PN для ET 200SP, central processing
Pre-order only
$1,316
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures KLD-DN65/PN16 carbon steel electromagnetic flowmeter (condensate, conductivity >20 μS/cm, 0.9982 kg/m³, 5–110 °C), 10–30 m³/h, 4–20 mA + RS485

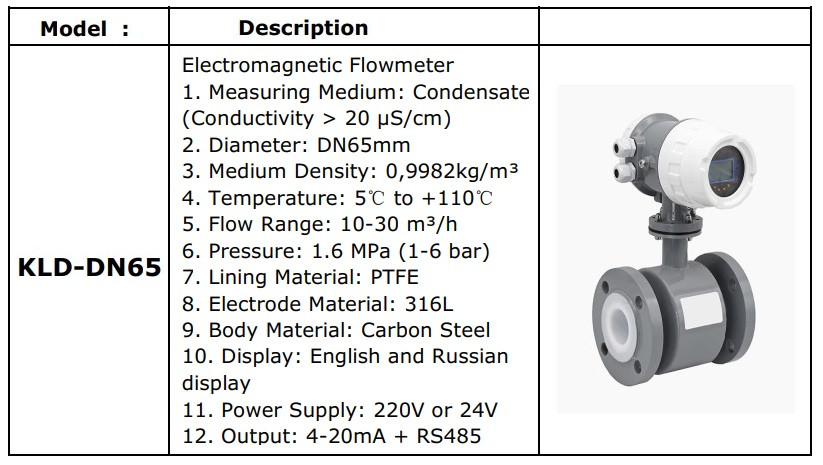

Producer | BTS Engineering |
Housing material | carbon steel |
Control signal, mA | 4-20mA+RS485 |
Electrode material | AISI 316L |
Flow range | 10...30 m3/h |
Working pressure, bar | 1-6 |
Explosion protection | No |
Nom.pressure, Mpa | 1,6 |
Temperature range | 5...+110°С |
Voltage, V | 24, 220 |
Material of lining | PTFE |
Connection type | flanged |
Connection diameter, DN | 65 |
Type of flow meter | electromagnetic |
Country of Origin | China |
Description KLD-DN65/PN16 carbon steel electromagnetic flowmeter (condensate, conductivity >20 μS/cm, 0.9982 kg/m³, 5–110 °C), 10–30 m³/h, 4–20 mA + RS485
The measuring principle of electromagnetic flow meter is based on Faraday's law of electromagnetic induction. The sensor is mainly composed of a measuring tube with an insulated lining, a pair of electrodes installed by penetrating the wall of the measuring tube, a pair of coils and an iron core to generate a working magnetic field. When a conductive fluid flows through the sensor's measuring tube, a voltage signal directly proportional to the average fluid flow rate will be induced at the electrodes. The signal is amplified and processed by the transmitter to realise various display functions.
