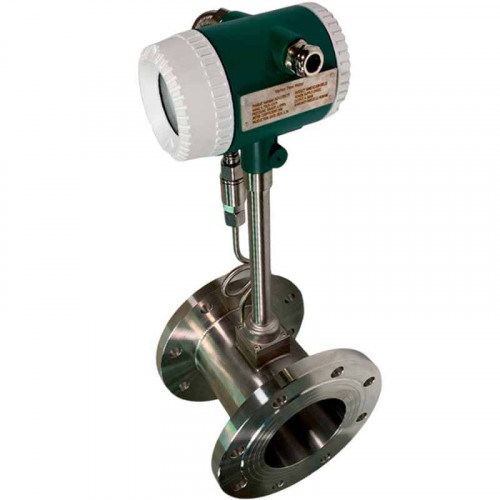

DN125 Stainless steel vortex flow meter KLUGB PN16 RF DIN flange, for steam 0.75-11 t/h <1.6 MPa, <250°C, 4-20mA, ExdIIBT6
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Housing material:
AISI 304 stainless steel
Control signal, mA:
4-20
Flow range:
0.75-11 t/h
Explosion protection:
Yes
Voltage, V:
24
Max.temperature, C:
250
See all
Documentation
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features DN125 Stainless steel vortex flow meter KLUGB PN16 RF DIN flange, for steam 0.75-11 t/h <1.6 MPa, <250°C, 4-20mA, ExdIIBT6
Producer | BTS Engineering |
Housing material | AISI 304 stainless steel |
Control signal, mA | 4-20 |
Flow range | 0.75-11 t/h |
Explosion protection | Yes |
Voltage, V | 24 |
Max.temperature, C | 250 |
Connection type | flanged |
Conditional passage,DN | 125 |
ATEX standard | d II BT6 |
Country of Origin | China |
Weight, kg | 19 |
Length of transport packing, cm | 67 |
Width of transport packing, cm | 26 |
Height of transport packing, cm | 24,5 |
Description DN125 Stainless steel vortex flow meter KLUGB PN16 RF DIN flange, for steam 0.75-11 t/h <1.6 MPa, <250°C, 4-20mA, ExdIIBT6
On-screen display of transient flow + accumulated flow + medium temperature + medium pressure; With temperature and pressure compensation.
Vortex flow meter is used to measure the flow rate of gases or liquids in complete pipelines. The measurement principle is based on the development of a vortex Karman street following a body embedded in the pipeline.
The vortices are periodically discharged first on one side and then on the other side of the flow body (body with vortices), which is installed perpendicular to the pipe axis. The vortex flow creates a so-called "vortex Karman street" with a variable pressure, the frequency of which is proportional to the flow rate.
