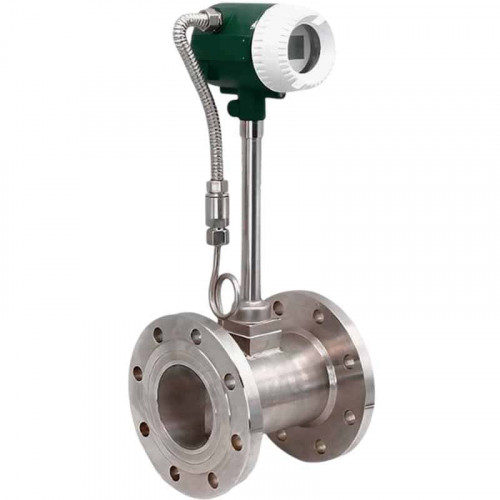

DN65 Stainless steel vortex flow meter PN16 RF DIN flange, for steam, 60-600 m3/h, <1.6 MPa, <250°C, 4-20mA, ExdIIBT6

DN65 Stainless steel vortex flow meter PN16 RF DIN flange, for steam, 60-600 m3/h, <1.6 MPa, <250°C, 4-20mA, ExdIIBT6
DN65 Stainless steel vortex flow meter PN16 RF DIN flange, for steam, 60-600 m3/h, <1.6 MPa, <250°C, 4-20mA, ExdIIBT6
Characteristics
Producer:
BTS Engineering
Housing material:
AISI 304 stainless steel
Control signal, mA:
4-20
Flow range:
60...600 m3/h
Voltage, V:
24
Explosion protection:
Yes
Max.temperature, C:
250
See all
Ukraine: Out of stock
Poland: Out of stock
Germany: Out of stock
Code: 1044180
$1,814.82 netto
Amount:
Favorite
Compare
We deliver anywhere in the world
product_promo_title_1Exchange or returnWe will return or exchange for another product
product_promo_title_2Fast shippingWe will pick up and send promptly
product_promo_title_3Warranty and qualityGuaranteed return of goods within 10 days
product_promo_title_4On-line payment on the sitePayment is made by bank cards
Features DN65 Stainless steel vortex flow meter PN16 RF DIN flange, for steam, 60-600 m3/h, <1.6 MPa, <250°C, 4-20mA, ExdIIBT6
Producer
BTS Engineering
Housing material
AISI 304 stainless steel
Control signal, mA
4-20
Flow range
60...600 m3/h
Voltage, V
24
Explosion protection
Yes
Max.temperature, C
250
Conditional passage,DN
65
Connection type
flanged
ATEX standard
d II BT6
Country of Origin
China
Description DN65 Stainless steel vortex flow meter PN16 RF DIN flange, for steam, 60-600 m3/h, <1.6 MPa, <250°C, 4-20mA, ExdIIBT6
On-screen display of transient flow + accumulated flow + medium temperature + medium pressure; With temperature and pressure compensation. Vortex flow meter is used to measure the flow rate of gases or liquids in complete pipelines. The measurement principle is based on the development of a vortex Karman street following a body embedded in the pipeline. The vortices are periodically discharged first on one side and then on the other side of the flow body (body with vortices), which is installed perpendicular to the pipe axis. The vortex flow creates a so-called "vortex Karman street" with a variable pressure, the frequency of which is proportional to the flow rate.
Documentation DN65 Stainless steel vortex flow meter PN16 RF DIN flange, for steam, 60-600 m3/h, <1.6 MPa, <250°C, 4-20mA, ExdIIBT6

Download instructions, catalog for DN65 Stainless steel vortex flow meter PN16 RF DIN flange, for steam, 60-600 m3/h, <1.6 MPa, <250°C, 4-20mA, ExdIIBT6
