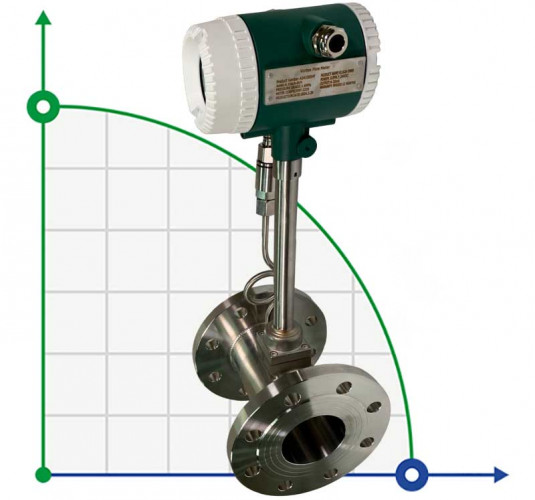

DN80 Stainless steel AISI 316 vortex flow meter KLUGB/PN16 flange, for steam 175-2700 kg/h (density 2.7 kg/m3) 1.6 MPa, 150°C, 4-20mA+RS485
DN80 Stainless steel AISI 316 vortex flow meter KLUGB/PN16 flange, for steam 175-2700 kg/h (density 2.7 kg/m3) 1.6 MPa, 150°C, 4-20mA+RS485
DN80 Stainless steel AISI 316 vortex flow meter KLUGB/PN16 flange, for steam 175-2700 kg/h (density 2.7 kg/m3) 1.6 MPa, 150°C, 4-20mA+RS485
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Housing material:
AISI 316 stainless steel
Display:
displays instantaneous flow rate + cumulative flow rate + temperature + pressure
Control signal, mA:
4-20mA+RS485
Accuracy class (measurement error), %:
1,5
Protection:
IP65
Flow range:
175-2700 kg/h
See all
Documentation
Favorite
Compare
Products from the same category
DN25 Flow meter (rotameter) stainless steel AISI 316L KLZZ/PN10 (Water for Injection), 500-5000 l/h Clamp, 85-99°C, 4-20mA+485 Mbps
Pre-order only
$1,257
DN50 Flow meter (rotameter) stainless steel AISI 316L KLZZ/PN10 (pure water), 1500-16000 l/h Clamp, 15-99°C, 4-20mA+485 Mbps
Pre-order only
$1,737
DN40 KLZZ PN6 stainless steel rotameter flow meter for vegetable oil 110°C, 500...3000 l/h, 4-20mA, Ex
Pre-order only
$1,407
DN200 Gas ultrasonic flow meter PN16 (gas), 48~3000 m3/h, AISI 304, 4-20mA, RS485, ExdⅡ BT6Gb, flange connection
Pre-order only
$10,936
6EP3336-3SB00-0AX0 power supply SITOP PSU4200 1AC 24 V/20 A
Pre-order only
$142
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days

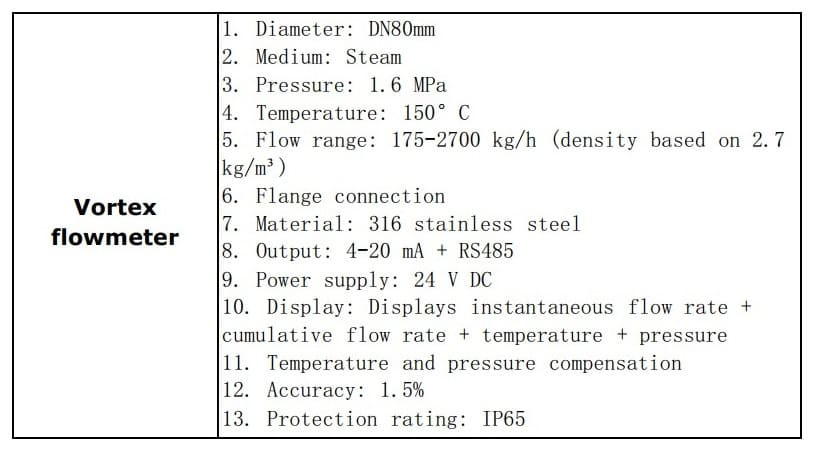

On-line payment on the sitePayment is made by bank cardsFeatures DN80 Stainless steel AISI 316 vortex flow meter KLUGB/PN16 flange, for steam 175-2700 kg/h (density 2.7 kg/m3) 1.6 MPa, 150°C, 4-20mA+RS485
Producer | BTS Engineering |
Housing material | AISI 316 stainless steel |
Display | displays instantaneous flow rate + cumulative flow rate + temperature + pressure |
Control signal, mA | 4-20mA+RS485 |
Accuracy class (measurement error), % | 1,5 |
Protection | IP65 |
Flow range | 175-2700 kg/h |
Additionally | temperature and pressure compensation |
Voltage, V | 24 |
Max.temperature, C | 150 |
Connection type | flanged |
Connection diameter, DN | 80 |
Type of flow meter | vortex |
Country of Origin | China |
Working Environment | пара |
Description DN80 Stainless steel AISI 316 vortex flow meter KLUGB/PN16 flange, for steam 175-2700 kg/h (density 2.7 kg/m3) 1.6 MPa, 150°C, 4-20mA+RS485
On-screen display of transient flow + accumulated flow + medium temperature + medium pressure; With temperature and pressure compensation.
Vortex flow meter is used to measure the flow rate of gases or liquids in complete pipelines. The measurement principle is based on the development of a vortex Karman street following a body embedded in the pipeline.
The vortices are periodically discharged first on one side and then on the other side of the flow body (body with vortices), which is installed perpendicular to the pipe axis. The vortex flow creates a so-called "vortex Karman street" with a variable pressure, the frequency of which is proportional to the flow rate.
Documentation DN80 Stainless steel AISI 316 vortex flow meter KLUGB/PN16 flange, for steam 175-2700 kg/h (density 2.7 kg/m3) 1.6 MPa, 150°C, 4-20mA+RS485
Download instructions, catalog for DN80 Stainless steel AISI 316 vortex flow meter KLUGB/PN16 flange, for steam 175-2700 kg/h (density 2.7 kg/m3) 1.6 MPa, 150°C, 4-20mA+RS485
