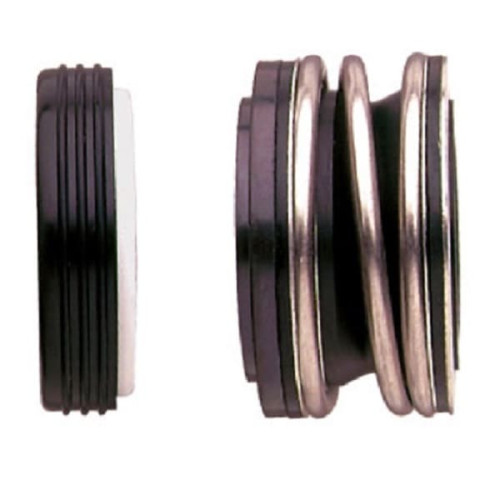

AESSEAL B02 mechanical seal
AESSEAL B02 mechanical seal
Brand:
AESSEALCharacteristics
Producer:
AESSEAL
Pressure:
1,6 mPa
Operating temperature:
-20°C + 140°C
Rotation velocity:
10 m/s
Seal type:
R-MG1
Country of Origin:
United Kingdom
Application:
Salmson, SD, Seepex, SPOMASZ ZAMOŚĆ S.A., Standard, Sulzer ABS, Svanehoj, TAJFUN, WILO, Yulo, Zenith, SAER, Pentax, Pedrollo, Nocchi, Alfa Laval, Speroni, ALLWEILER, CNP, CRI-MAN SpA, DAB, DWO, Ebara, EMAUX, ERDURO, Evroaqua, Foras, Grundfos, GÜCÜM, Hidrostal, Hydro-Vacuum S.A., Inoxpa, IRG, Johnson pump, KM, KML, KSB, Mas Daf
See all
Categories
Favorite
Compare
Products from the same category
Mechanical seal AESSEAL M02-A-VP-0571+S08- BVQ-0508
Pre-order only
$955.74
Mechanical seal AESSEAL M04-A-VP-04Z0+S010-DVQ-0380
Pre-order only
$792.93
AESSEAL T04D mechanical seal
Pre-order only
Price on request
AESSEAL B052 mechanical seal
Pre-order only
Price on request
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures AESSEAL B02 mechanical seal
Producer | AESSEAL |
Pressure | 1,6 mPa |
Operating temperature | -20°C + 140°C |
Rotation velocity | 10 m/s |
Seal type | R-MG1 |
Country of Origin | United Kingdom |
Application | Salmson, SD, Seepex, SPOMASZ ZAMOŚĆ S.A., Standard, Sulzer ABS, Svanehoj, TAJFUN, WILO, Yulo, Zenith, SAER, Pentax, Pedrollo, Nocchi, Alfa Laval, Speroni, ALLWEILER, CNP, CRI-MAN SpA, DAB, DWO, Ebara, EMAUX, ERDURO, Evroaqua, Foras, Grundfos, GÜCÜM, Hidrostal, Hydro-Vacuum S.A., Inoxpa, IRG, Johnson pump, KM, KML, KSB, Mas Daf |
Analogue for | Anga A1, Burgmann MG1, DIMER TCP.1-60, Flowserve 190, Hermetyka M212.N2, Latty T700, LIDERING LRB17, Roten L3, Sterling SMG1, US SEAL VGMC-1, Vulcan 19, BTS R-MG1 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description AESSEAL B02 mechanical seal
Single mechanical, mechanical seal of the AESSEAL B02 pump shaft, bellows type, unloaded, with a central spring, independent of the direction of rotation of the shaft. It is used in centrifugal pumps, mixers and other equipment.it is especially recommended for media containing solid inclusions (for example, wastewater).
It is used at temperatures from -20 to + 140°C, with a pressure of up to 1.6 MPA and a rotation speed of up to 10 m/sec.
It can be used in Alfa Laval, Ebara, Lowara, KSB (Etanorm, Etachrom), WILO (MVI, MHI, IPL / DPL), Grundfos (CDM), Saer (IP), Calpeda (GM, MXS) , GNOME, km, dab, Johnson Pump, Foras, Zenit (DTRT) and other pumps.
Analogs: LIDERING LRB17, Burgmann Mg1, Vulcan 19, Roten L3, Flowserve 190, Latty T700, Hermetyka M212.N2, Sterling SMG1, Anga A1, dimer TCP.1-60, US SEAL VGMC-1, BTS Engineering R-MG1.
