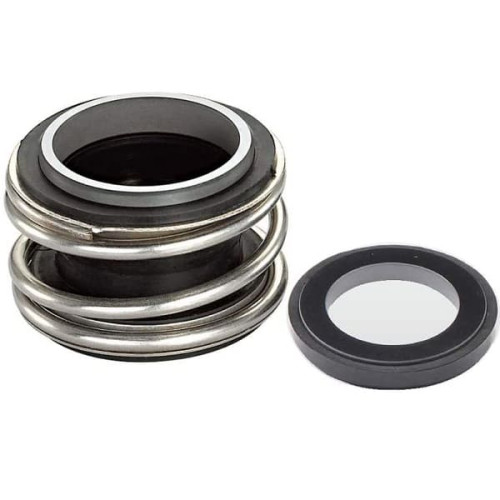

FLOWSERVE 190 mechanical seal
FLOWSERVE 190 mechanical seal
Brand:
FLOWSERVECharacteristics
Producer:
FLOWSERVE
Pressure:
1,6 mPa
Operating temperature:
-20°C + 140°C
Rotation velocity:
10 m/s
Seal type:
R-MG1
Country of Origin:
USA
Application:
SD, Seepex, SPOMASZ ZAMOŚĆ S.A., Standard, Sulzer ABS, Svanehoj, TAJFUN, WILO, Yulo, Zenith, Salmson, SAER, Pentax, Evroaqua, Alfa Laval, Speroni, ALLWEILER, CNP, CRI-MAN SpA, DAB, DWO, Ebara, EMAUX, ERDURO, Pedrollo, Foras, Grundfos, GÜCÜM, Hidrostal, Hydro-Vacuum S.A., Inoxpa, IRG, Johnson pump, KM, KML, KSB, Mas Daf, Nocchi
See all
Categories
Favorite
Compare
Products from the same category
FLOWSERVE 142 mechanical seal
Pre-order only
Price on request
FLOWSERVE 170 mechanical seal
Pre-order only
Price on request
Flowserve AWP mechanical seal
Pre-order only
Price on request
Flowserve 43D mechanical seal
Pre-order only
Price on request
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures FLOWSERVE 190 mechanical seal
Producer | FLOWSERVE |
Pressure | 1,6 mPa |
Operating temperature | -20°C + 140°C |
Rotation velocity | 10 m/s |
Seal type | R-MG1 |
Country of Origin | USA |
Application | SD, Seepex, SPOMASZ ZAMOŚĆ S.A., Standard, Sulzer ABS, Svanehoj, TAJFUN, WILO, Yulo, Zenith, Salmson, SAER, Pentax, Evroaqua, Alfa Laval, Speroni, ALLWEILER, CNP, CRI-MAN SpA, DAB, DWO, Ebara, EMAUX, ERDURO, Pedrollo, Foras, Grundfos, GÜCÜM, Hidrostal, Hydro-Vacuum S.A., Inoxpa, IRG, Johnson pump, KM, KML, KSB, Mas Daf, Nocchi |
Analogue for | AESSEAL B02, AESSEAL B09U, Anga A1, Burgmann MG1, DIMER TCP.1-60, Hermetyka M212.N2, Latty T700, LIDERING LRB17, Roten L3, Sterling SMG1, US SEAL VGMC-1, Vulcan 19, BTS R-MG1 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description FLOWSERVE 190 mechanical seal
Single mechanical, mechanical seal of the Flowserve 190 pump shaft, bellows type, unloaded, with a central spring, independent of the direction of rotation of the shaft. It is used in centrifugal pumps, mixers and other equipment.it is especially recommended for media containing solid inclusions (for example, wastewater).
It is used at temperatures from -20 to + 140°C, with a pressure of up to 1.6 MPA and a rotation speed of up to 10 m/sec.
It can be used in Alfa Laval, Ebara, Lowara, KSB (Etanorm, Etachrom), WILO (MVI, MHI, IPL / DPL), Grundfos (CDM), Saer (IP), Calpeda (GM, MXS) , GNOME, km, dab, Johnson Pump, Foras, Zenit (DTRT) and other pumps.
Analogs: LIDERING LRB17, Burgmann MG1, AESSEAL B02, AESSEAL B09U, Vulcan 19, Roten L3, Latty T700, Hermetyka M212.N2, Sterling SMG1, Anga A1, dimer TCP.1-60, US SEAL VGMC-1, BTS Engineering R-MG1
