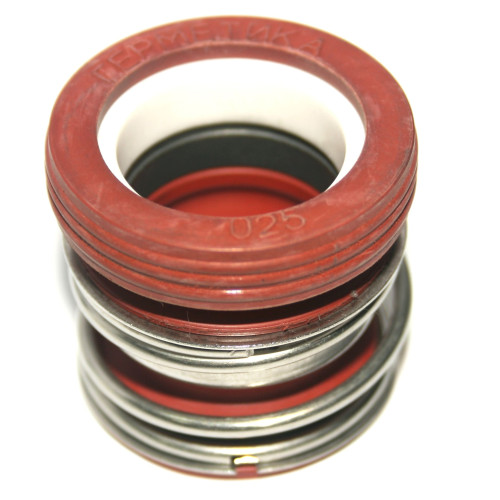

HERMETICA M212.N2 mechanical seal
HERMETICA M212.N2 mechanical seal
Brand:
HERMETICACharacteristics
Producer:
HERMETICA
Pressure:
1,6 mPa
Operating temperature:
-20°C + 140°C
Rotation velocity:
10 m/s
Seal type:
R-MG1
Application:
Salmson, SD, Seepex, SPOMASZ ZAMOŚĆ S.A., Standard, Sulzer ABS, Svanehoj, TAJFUN, WILO, Yulo, Zenith, SAER, Pentax, Pedrollo, Nocchi, Alfa Laval, Speroni, ALLWEILER, CNP, CRI-MAN SpA, DAB, DWO, Ebara, EMAUX, ERDURO, Evroaqua, Foras, Grundfos, GÜCÜM, Hidrostal, Hydro-Vacuum S.A., Inoxpa, IRG, Johnson pump, KM, KML, KSB, Mas Daf
Analogue for:
AESSEAL B02, AESSEAL B09U, Anga A1, Burgmann MG1, DIMER TCP.1-60, Flowserve 190, Hermetyka M212.N2, Latty T700, LIDERING LRB17, Roten L3, Sterling SMG1, US SEAL VGMC-1, BTS R-MG1
See all
Categories
Favorite
Compare
Products from the same category
HERMETICA M112K.5I mechanical seal
Pre-order only
Price on request
HERMETICA М112К.FR mechanical seal
Pre-order only
Price on request
HERMETICA М212.NC mechanical seal
Pre-order only
Price on request
HERMETICA M212.K12 mechanical seal
Pre-order only
Price on request
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures HERMETICA M212.N2 mechanical seal
Producer | HERMETICA |
Pressure | 1,6 mPa |
Operating temperature | -20°C + 140°C |
Rotation velocity | 10 m/s |
Seal type | R-MG1 |
Application | Salmson, SD, Seepex, SPOMASZ ZAMOŚĆ S.A., Standard, Sulzer ABS, Svanehoj, TAJFUN, WILO, Yulo, Zenith, SAER, Pentax, Pedrollo, Nocchi, Alfa Laval, Speroni, ALLWEILER, CNP, CRI-MAN SpA, DAB, DWO, Ebara, EMAUX, ERDURO, Evroaqua, Foras, Grundfos, GÜCÜM, Hidrostal, Hydro-Vacuum S.A., Inoxpa, IRG, Johnson pump, KM, KML, KSB, Mas Daf |
Analogue for | AESSEAL B02, AESSEAL B09U, Anga A1, Burgmann MG1, DIMER TCP.1-60, Flowserve 190, Hermetyka M212.N2, Latty T700, LIDERING LRB17, Roten L3, Sterling SMG1, US SEAL VGMC-1, BTS R-MG1 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description HERMETICA M212.N2 mechanical seal
Single mechanical, mechanical seal of the AESSEAL B02 pump shaft, bellows type, unloaded, with a central spring, independent of the direction of rotation of the shaft. It is used in centrifugal pumps, mixers and other equipment.it is especially recommended for media containing solid inclusions (for example, wastewater).
It is used at temperatures from -20 to + 140°C, with a pressure of up to 1.6 MPA and a rotation speed of up to 10 m/sec.
It can be used in Alfa Laval, Ebara, Lowara, KSB (Etanorm, Etachrom), WILO (MVI, MHI, IPL / DPL), Grundfos (CDM), Saer (IP), Calpeda (GM, MXS) , GNOME, km, dab, Johnson Pump, Foras, Zenit (DTRT) and other pumps.
Analogs: LIDERING LRB17, Burgmann MG1, AESSEAL B02, AESSEAL B09U, Roten L3, Flowserve 190, Latty T700, Hermetyka M212.N2, Sterling SMG1, Anga A1, dimer TCP.1-60, US SEAL VGMC-1, BTS Engineering R-MG1.
