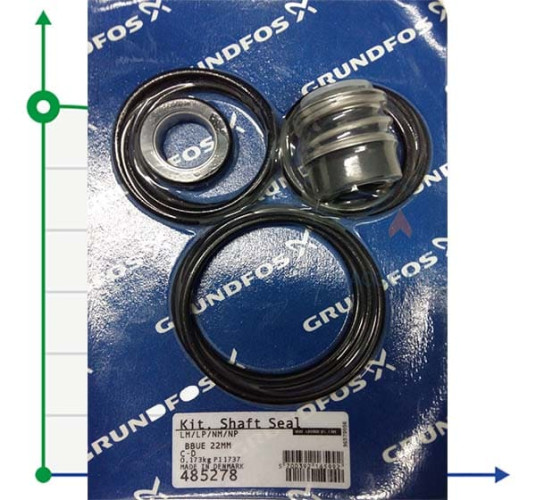

Mechanical seal Grundfos BBUE 22mm LM/LP/NM / NP art. no. 485278

Brand:

GRUNDFOS

0 Comment

Characteristics

Producer:

GRUNDFOS

Operating temperature:

from -20 to +120

Seal type:

R-MG13

Diameter, mm:

Material:

EPDM

Country of Origin:

Denmark

Analogue for:

Aesseal B012G, BTS R-MG13 G60, Burgmann MG12S

Categories

Mechanical seals for Grundfos pumps

Favorite

Compare

Products from the same category

AUUE shaft seal GRUNDFOS CR/CRN 8/16 Art. no. 985874

Pre-order only

$401.26

Shaft seal CVBE/V A-B for GRUNDFOS CH8/CH12 Art. no. 004N5012

Pre-order only

$118.75

Gasket with seal AQQE / V (A-VERSION) GRUNDFOS art. no. 96932392

Pre-order only

$186.49

Pump shaft seal Grundfos MQ 3-35/45 art. 96450696

Pre-order only

$94.75

Shaft seal (gasket) CVBE/V CH-2/4 GRUNDFOS CH-2/4 art. no. 985164

Pre-order only

$111.31

Shaft seal BAQE GG D38 GRUNDFOS TP/NB/NK Art. no. 96537605

Pre-order only

$240.34

Features Mechanical seal Grundfos BBUE 22mm LM/LP/NM / NP art. no. 485278

Producer	GRUNDFOS
Operating temperature	from -20 to +120
Seal type	R-MG13
Diameter, mm	22
Material	EPDM
Country of Origin	Denmark
Analogue for	Aesseal B012G, BTS R-MG13 G60, Burgmann MG12S

Description Mechanical seal Grundfos BBUE 22mm LM/LP/NM / NP art. no. 485278

BBUE 22mm shaft seal, set for Grundfos LM, LP, NM, NP circulation pumps Technical characteristics: shaft diameter: 22 mm; friction pair: graphite with inclusions of polymer resins on tungsten carbide (BU); secondary seal: EPDM (except petroleum products and water-oil solutions); working t°: -20°C to +120°C; working P: up to 16 bar. SKU: 485278
