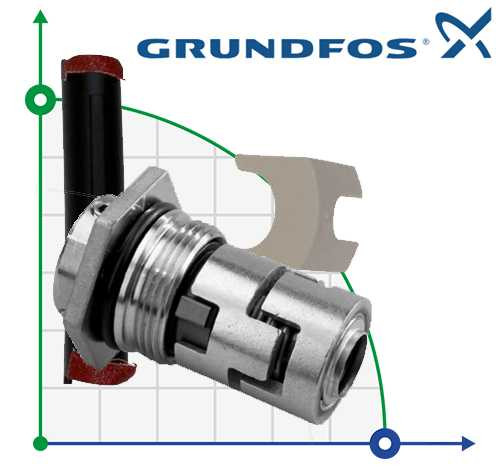

Mechanical seal for Grundfos HQQE pump CR/CRN/CRI-1/3/5 Art. 96455086
Mechanical seal for Grundfos HQQE pump CR/CRN/CRI-1/3/5 Art. 96455086
Mechanical seal for Grundfos HQQE pump CR/CRN/CRI-1/3/5 Art. 96455086
Brand:
GRUNDFOSCharacteristics
Producer:
GRUNDFOS
Operating temperature:
-20°C + 120°C

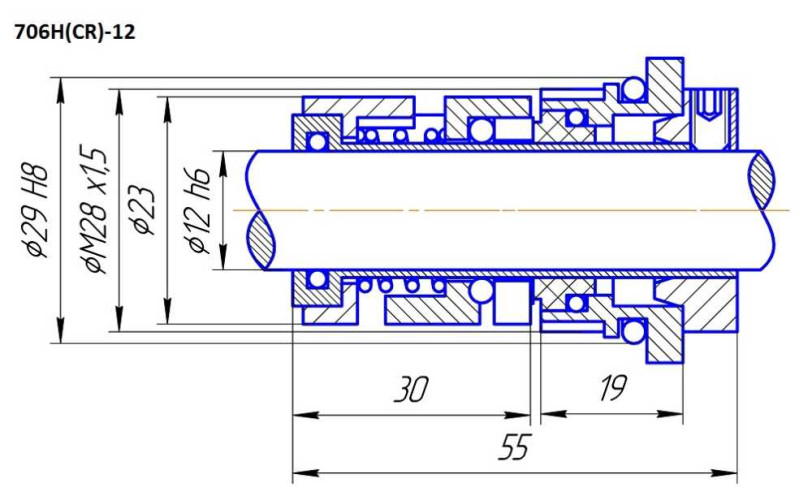

Seal type:
R-706H(CR)
Diameter, mm:
12
Country of Origin:
Denmark
Application:
CDLF, Grundfos, TSNS
Analogue for:
BTS R-706H(CR), Герметика М211K.CR
Categories
Favorite
Compare
Products from the same category
Mechanical seal for Grundfos pump shaft to S1, fr46, YJ34520 (96567331)
Pre-order only
$309.96
Mechanical seal HQQE for CR Grundfos Art. 96511844
Pre-order only
$302.45
Mechanical seal Grundfos HQQE CR/CRN/CRI 32...150 Art. 96525458
Pre-order only
$393.23
Gasket with seal GRUNDFOS AQQE / V (A-VERSION) art. 96932394
Pre-order only
$199.33
Shaft seal BAQE GG D38 GRUNDFOS TP/NB/NK Art. no. 96537605
Pre-order only
$218.50
Shaft seal GRUNDFOS SEG.40.09, 12, 15 set art. 96076122
Pre-order only
$356.37
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal for Grundfos HQQE pump CR/CRN/CRI-1/3/5 Art. 96455086
Producer | GRUNDFOS |
Operating temperature | -20°C + 120°C |
Seal type | R-706H(CR) |
Diameter, mm | 12 |
Country of Origin | Denmark |
Application | CDLF, Grundfos, TSNS |
Analogue for | BTS R-706H(CR), Герметика М211K.CR |
Description Mechanical seal for Grundfos HQQE pump CR/CRN/CRI-1/3/5 Art. 96455086
Shaft seals HQQE, set for vertical multistage centrifugal pumps Grundfos CR 1, CR 3, CR 5, CRN 1, CRN 3, CRN 5, CRI 1, CRI 3, CRI 5
Technical characteristics:
Friction pair: silicon carbide by silicon carbide (QQ)
Secondary seal: EPDM (except petroleum products and water-oil solutions)
Operating temperature: -20°C to +120°C
Working pressure: up to 30 bar
Article number: 96455086
