Shaft seal BAQE GG D38 GRUNDFOS TP/NB/NK Art. no. 96537605
Shaft seal BAQE GG D38 GRUNDFOS TP/NB/NK Art. no. 96537605
Brand:
GRUNDFOSCharacteristics
Producer:
GRUNDFOS
Operating temperature:
from -20 to +120
Seal type:
R-MG13
Diameter, mm:
38
Material:
EPDM
Country of Origin:
Denmark
Analogue for:
AESSEAL B093U, BTS R-MG13
Categories
Favorite
Compare
Products from the same category
Mechanical seal for Grundfos pump shaft to S1, fr46, YJ34520 (96567331)
Pre-order only
$309.96
Mechanical seal for Grundfos HQQE pump CR/CRN/CRI-1/3/5 Art. 96455086
Pre-order only
$250.42
Mechanical seal Grundfos BBUE 22mm LM/LP/NM / NP art. no. 485278
Pre-order only
$397.15
Pump shaft seal Grundfos MQ 3-35/45 art. 96450696
Pre-order only
$86.13
Shaft seal (gasket) CVBE/V CH-2/4 GRUNDFOS CH-2/4 art. no. 985164
Pre-order only
$101.19
Shaft seal GRUNDFOS SEG.40.09, 12, 15 set art. 96076122
Pre-order only
$356.37
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Shaft seal BAQE GG D38 GRUNDFOS TP/NB/NK Art. no. 96537605
Producer | GRUNDFOS |
Operating temperature | from -20 to +120 |
Seal type | R-MG13 |
Diameter, mm | 38 |
Material | EPDM |
Country of Origin | Denmark |
Analogue for | AESSEAL B093U, BTS R-MG13 |
Description Shaft seal BAQE GG D38 GRUNDFOS TP/NB/NK Art. no. 96537605

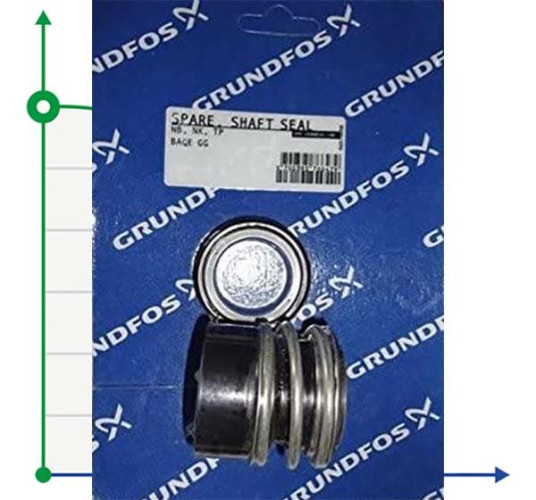

BAQE D38 shaft seal for Grundfos TP, NB, NK pumps.
Description: Service kit, shaft seal, replacement spare part for Grundfos TP, NB, NK pumps. The diameter is 38 mm. Type-quick-wear parts. Service life-2-3 years
The BAQE GG D38 GRUNDFOS 96537605 shaft seal usually fails due to wear or dry running. A leak from under the pump shaft is a signal that the mechanical seal needs to be replaced.
Technical characteristics: friction pair: graphite with metal inclusions on silicon carbide (AQ). Secondary seal: EPDM (except petroleum products and water-oil solutions). Operating temperature: -20 ° C to +120 ° C. Working pressure: up to 16 bar. SPARE, SHAFT SEAL BAQE GG D38 - 96537605. Kit, shaft seal TP/NB / NK, BAQE, D38
