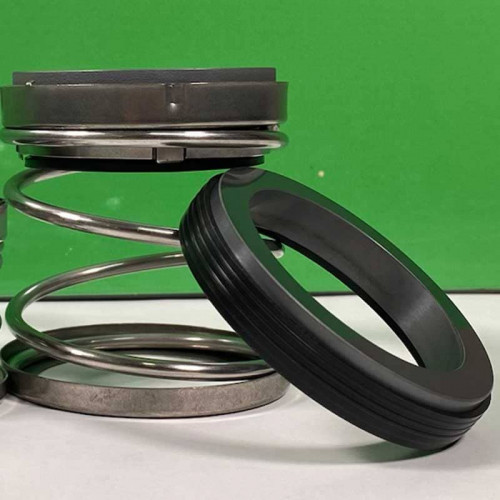

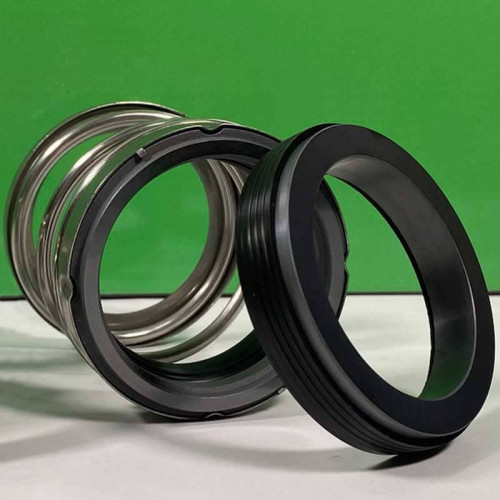

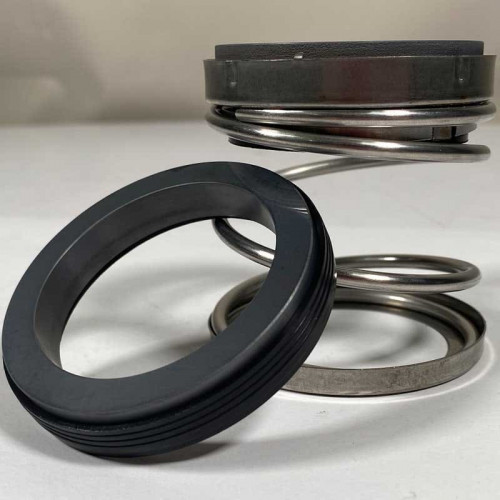

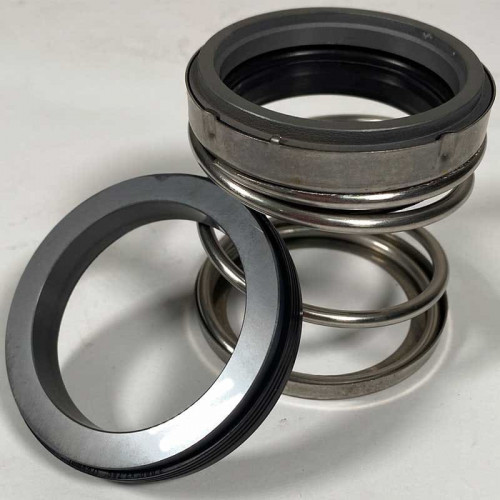

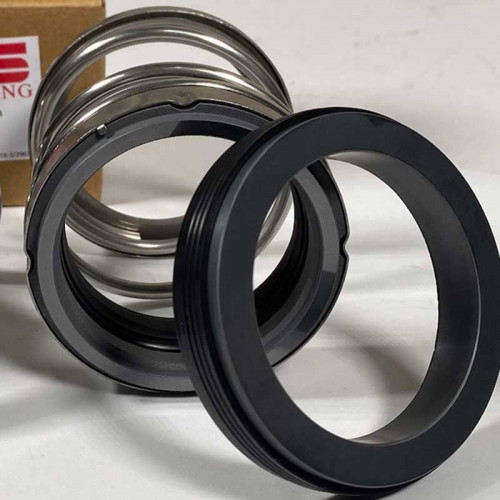

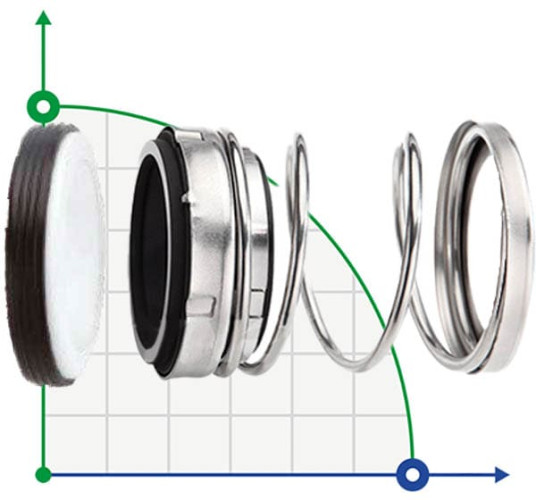

Mechanical seal R-21 28, CAR/SIC, EPDM, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
CAR/SIC
Pressure:
1.5 MPa
Operating temperature:
-20°C + 150°C
Rotation velocity:
15 m/s
Seal type:
R-21
Shaft diameter:
28
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-21 22, CAR/SIC, EPDM, 304
In stock
$39.25
Mechanical seal R-21 24, CAR/SIC, EPDM, 304
Pre-order only
$43.32
Mechanical seal R-21 25, CAR/SIC, EPDM, 304
In stock
$44.68
Mechanical seal R-21 30, CAR/SIC, EPDM, 304
Pre-order only
$54.15
Mechanical seal R-21 32, CAR/SIC, EPDM, 304
Pre-order only
$56.81
Mechanical seal R-21 33, CAR/SIC, EPDM, 304
Pre-order only
$59.59
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-21 28, CAR/SIC, EPDM, 304
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Pressure | 1.5 MPa |
Operating temperature | -20°C + 150°C |
Rotation velocity | 15 m/s |
Seal type | R-21 |
Shaft diameter | 28 |
Rubber type | EPDM |
Material of metal part | 304 |
Application | TONKAFLO, Summit, Scot Motorpump, Rovatti, LOWARA, Koshin, Inoxpa, Goulds Pumps, DESMI, Baltimore Aircoil |
Analogue for | Sealol 43CU short, LIDERING LRB01, Hermetica M112K.5SP, Burgmann MG921 / D1-G55, AESSEL P04T, AESSEL P04, Vulcan 11, US SEAL C, Roten 21A, John Crane 21, Flowserve 110 |
Description Mechanical seal R-21 28, CAR/SIC, EPDM, 304
Mechanical seal R-21 single seal, which is used at temperatures ranging from -20 to + 150°C, a pressure up to 1, 5 mPa.s is the rotation speed of 13m/sec.
They are used in centrifugal pumps, turbine pumps, compressors, pumps for hot water, mixers and other equipment, oil, chemical and food industries.
Analog mechanical seals: John Crane Type 21, Vulcan Type 11, AESSEAL P04 / P04T.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

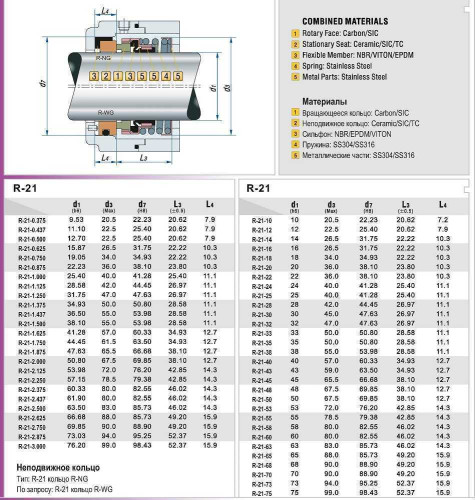

Documentation Mechanical seal R-21 28, CAR/SIC, EPDM, 304
Download instructions, catalog for Mechanical seal R-21 28, CAR/SIC, EPDM, 304
Video Mechanical seal R-21 28, CAR/SIC, EPDM, 304
