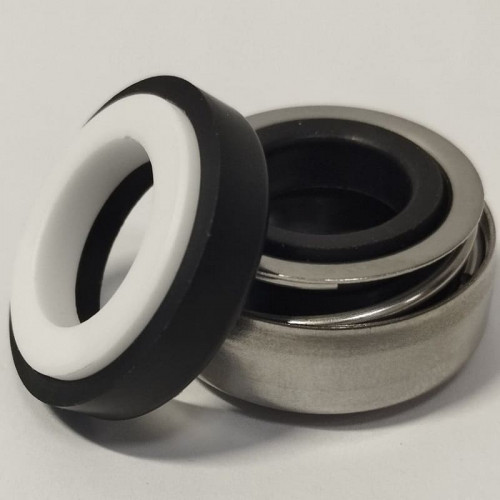

Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Pressure:
0,4 MPa
Operating temperature:
-20°C + 150°C
Rotation velocity:
10 m/s
Seal type:
R-BT-AR
Outer diameter of the fixed ring, mm:
50
Stationary and rotating face:
CAR/CER
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal for pump Inoxpa, WILO, Rovatti, SACI Pumps R-BT-AR 20, L, CAR/CER, EPDM, 304
Pre-order only
$24
$25
-4%
Pump mechanical seal R-BT-AR 22, S, CAR/CER, EPDM, 304
Pre-order only
$26
$27
-4%
Mechanical seal for VARISCO pump, WILO R-BT-AR 22, CAR/CER, EPDM, 304
Pre-order only
$26
$27
-4%
Mechanical pump seal R-BT-AR 24, CAR/CER, EPDM, 304
Pre-order only
$28
$30
-7%
Mechanical seal for pump GRUNDFOS, Pentax, SAER, DOMAK, Zenit R-BT-AR 25, CAR/CER, EPDM, 304
Pre-order only
$29
$31
-6%
Pump mechanical seal R-BT-AR 25, S, CAR/CER, EPDM, 304
Pre-order only
$29
$31
-6%
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Producer | BTS Engineering |
Pressure | 0,4 MPa |
Operating temperature | -20°C + 150°C |
Rotation velocity | 10 m/s |
Seal type | R-BT-AR |
Outer diameter of the fixed ring, mm | 50 |
Stationary and rotating face | CAR/CER |
Material of metal part | AISI 304 stainless steel |
Rubber type | EPDM |
Shaft diameter | 23 |
Application | VARISCO, WILO, Zenith, VODOLIY, Vorskla, VARAN, AL-KO, VAC, Caprari, Aquaria, Aquatechnika, Kripsol, Speroni, Bronzoni, Calpeda, Grundfos, Speck pumpen, Inoxpa, Johnson pump, Kenle, LOWARA, Nocchi, Omnigena, Packo, Pedrollo, Pentax, SAER |
Analogue for | Hermetica М212.NC, AESSEAL B01, Anga C10, Burgmann BT-AR, Flowserve 118, John Crane PR/DR, Latty T750, LIDERING AR / LRB31, Roten 37B/L5, Sterling BT, US SEAL VGMA, Vulcan 18 |
Gross weight, kg | 0.1 |
Length of transport packing, cm | 5,5 |
Width of transport packing, cm | 5 |
Height of transport packing, cm | 5 |
Description Pump mechanical seal R-BT-AR 23, CAR/CER, EPDM, 304
Single mechanical seal (stuffing gland) with rubber bellows and arbitrary direction of rotation. Seals with reduced installation length are widely used in serial production of water pumps, household pumps for home and garden, washing machines, submersible and vortex pumps. Can be used in pumps AL-KO, Calpeda (MXP, MGP, NGL), Kripsol, Pedrolo (JCR, PRO-NGA 1A) article 11516101203, Grundfos JP Basic 4 PT, PACKO, and others. Analogue of mechanical seals: Burgmann BT-AR, AESSEAL B01, Vulcan 18, Anga C10, Hermetic M212.NC. Mechanical seal for pump Wilo, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum
