Mechanical seal R-M3N 32, SIC/SIC, VITON, 304, G6
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
1.0 MPa
Operating temperature:
-20°C +180°C
Rotation velocity:
15 m/s
Seal type:
R-M3N
Type of conta-ring:
G6
See all
Documentation
Categories
Favorite
Compare

Products from the same category




Features Mechanical seal R-M3N 32, SIC/SIC, VITON, 304, G6
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 1.0 MPa |
Operating temperature | -20°C +180°C |
Rotation velocity | 15 m/s |
Seal type | R-M3N |
Type of conta-ring | G6 |
Shaft diameter | 32 |
Rubber type | VITON |
Material of metal part | 304 |
Application | Inox (CSF Inox), KM, ALLWEILER, Calpeda, Ebara, ERDURO, Flowserve (SIHI), Hydro-Vacuum S.A., KMS, KSB, LOWARA, Pedrollo, Pentax, Pumpenbau Schaffhausen AG (SIHI), Sieva, Simaco, SLW, BShM |
Analogue for | Hecker HN 430N, AESSEAL T01, AESSEAL T01D, AESSEAL T02, Anga A3, Burgmann M32, Burgmann M3N, Flowserve 38, Flowserve 38D, Flowserve 39, Flowserve CRO, Hermetica М211К, Latty T800, LIDERING LS18/ LS19, Roten 2E, Roten L4B, US SEAL VGME-1, US SEAL VGME-2, US SEAL VGME-3, Vulcan 8, Vulcan 8.DIN |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-M3N 32, SIC/SIC, VITON, 304, G6

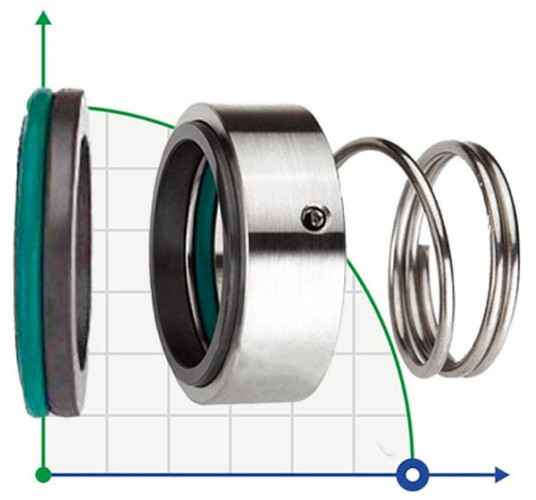

Single unbalanced seal with conical spring, unilateral direction of movement. It has a wide range of destinations in the water, sewage, submersible, chemical pumps. It is applied at temperatures from -20 to + 180°C, a pressure up to 1 MPa and the rotation speed to 15 m/sec.
Possible use in pumps: Allweiler, Lowara, Salpeda (N4, NM4), CM and others.
Analog mechanical seals: Burgmann M3N / M3 / M32 / M37G / M37, Flowserve Pac-Seal 38 / 38D / 39, Vulcan Type 8 / 8.DIN / 8D, AESSEAL T01 / T01D / T02, ROTEN 2/22/5 / L4B , ANGA A3, Sealant M211K.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
