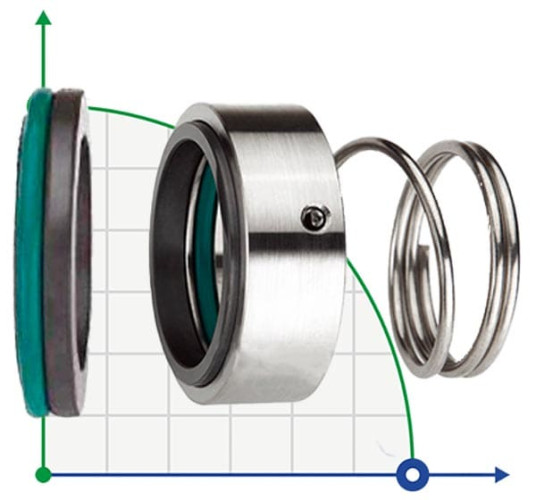

Mechanical seal R-M3N 40, SIC/SIC, VITON, 304, G6

Single unbalanced seal with conical spring, unilateral direction of movement. It has a wide range of destinations in the water, sewage, submersible, chemical pumps. It is applied at temperatures from -20 to + 180°C, a pressure up to 1 MPa and the rotation speed to 15 m/sec. Possible use in pumps: Allweiler, Lowara, Salpeda (N4, NM4), CM and others. Analog mechanical seals: Burgmann M3N / M3 / M32 / M37G / M37, Flowserve Pac-Seal 38 / 38D / 39, Vulcan Type 8 / 8.DIN / 8D, AESSEAL T01 / T01D / T02, ROTEN 2/22/5 / L4B , ANGA A3, Sealant M211K. Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
