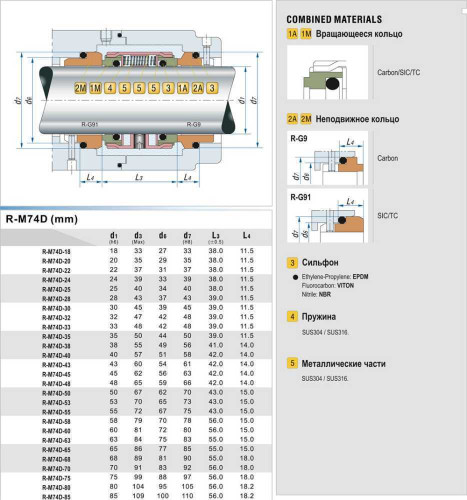

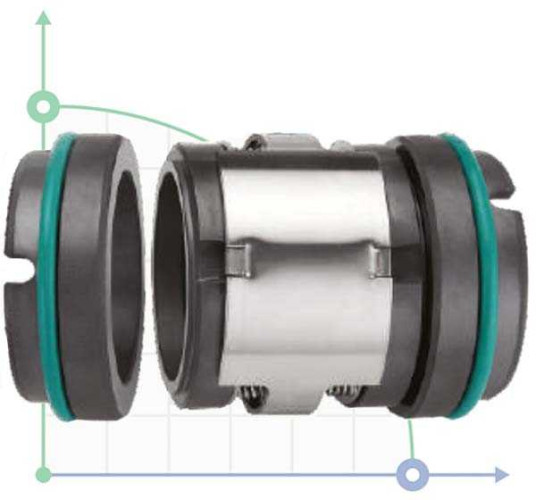

Mechanical seal R-M74D 28, TC/TC, EPDM, 304, G9

The double mechanical seal R-M74D, unbalanced, multi-spring, not dependent on the rotational direction of the shaft. Use at temperatures of -50 to + 220°C, a pressure up to 2 MPa and 5 rotation speed to 20 m/sec. Sealing R-M74D works perfectly with substances that do not create a lubricating effect of toxic, flammable fast and explosive substances. Use locking fluid system provides lubrication of the packing, cooling and also prevents the appearance of a precipitate at the surface of the friction couple, increasing its efficiency. sealing Analog: Burgmann M74-D, Anga VD Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
