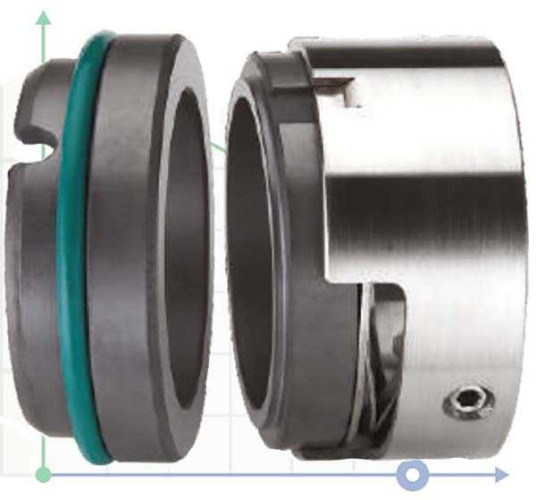

Mechanical seal R-M74 100, SIC/CAR, VITON, 304, G9
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/CAR
Pressure:
1,6 mPa
Operating temperature:
-20°C +200°C
Rotation velocity:
20 m/s
Seal type:
R-M74
Type of conta-ring:
G9
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Mechanical seal R-M74 100, SIC/CAR, VITON, 304, G9
Producer | BTS Engineering |
Stationary and rotating face | SIC/CAR |
Pressure | 1,6 mPa |
Operating temperature | -20°C +200°C |
Rotation velocity | 20 m/s |
Seal type | R-M74 |
Type of conta-ring | G9 |
Shaft diameter | 100 |
Rubber type | VITON |
Material of metal part | 304 |
Analogue for | Burgmann M74, LIDERING LMS11 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-M74 100, SIC/CAR, VITON, 304, G9

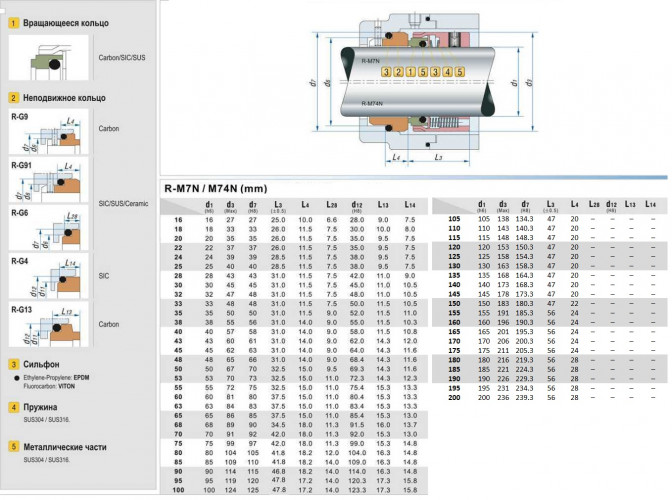

Single seal unbalanced R-M74 has the same dimensions as the R-M7N, but with one difference Ale: R-M74 has MULTI unit. The seal is designed to work with petrochemical products maloagressivnymi chemical compounds and substances that are used in the refrigeration industry.
It is used at temperatures from -50 to + 220°C, a pressure up to 2 MPa and 5 rotation speed to 20 m/sec.
Analog mechanical seals: Burgmann M74, Anga V, AESSEAL W07DM, Flowserve Europac 600, Sterling 270, Vulcan 1677.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-M74 100, SIC/CAR, VITON, 304, G9
Download instructions, catalog for Mechanical seal R-M74 100, SIC/CAR, VITON, 304, G9
