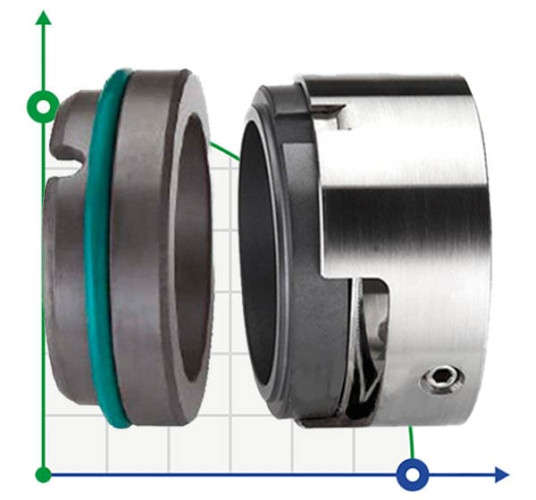

Mechanical seal R-M7N 70, CAR/SIC, EPDM, 304, G9
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
CAR/SIC
Pressure:
2.5 MPa
Operating temperature:
-40°C +200°C
Rotation velocity:
20 m/s
Seal type:
R-M7N
Type of conta-ring:
G9
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-M7N 90, SIC/SIC, VITON, 316, G9
Pre-order only
$701.53
Mechanical seal R-M7N 95, SIC/SIC, VITON, 316, G9
Pre-order only
$740.10
Mechanical seal R-M7N 100, SIC/SIC, VITON, 316, G9
Pre-order only
$780.05
Mechanical seal R-M7N 70, CAR/SIC, EPDM, 316, G9
In stock
$545.77
Mechanical seal R-M7N 43, SIC/SIC, EPDM, 304, G9
In stock
$335.43
Mechanical seal R-M7N 50, SIC/SIC, VITON, 316, G6
In stock
$390
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-M7N 70, CAR/SIC, EPDM, 304, G9
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Pressure | 2.5 MPa |
Operating temperature | -40°C +200°C |
Rotation velocity | 20 m/s |
Seal type | R-M7N |
Type of conta-ring | G9 |
Shaft diameter | 70 |
Rubber type | EPDM |
Material of metal part | 304 |
Application | Oh, Thune Eureka, Sterling (SIHI), Pompetravaini, Netzsch, KSB, Bornemann |
Analogue for | Vulcan 1677, Sterling 270, LIDERING LWS10, Latty U68, Hermetica M251.K2, Flowserve Europac 600, Burgmann M7N, Anga V, AESSEAL W07DMU |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-M7N 70, CAR/SIC, EPDM, 304, G9
Single mechanical seal with an arbitrary direction of rotation. The seal is designed to work with petrochemical products maloagressivnymi chemical compounds and substances that are used in the refrigeration industry.
It is used at temperatures from -50 to + 220°C, a pressure up to 2 MPa and 5 rotation speed to 20 m/sec.
It is used in these types of pumps Grundfos:
R-M7N-28:
- Grundfos NB 32, NB 40, NB 50, NB 65, NB 80, NB 100.
Article Grundfos: 96658834, 97769916, 96658835, 97769904, 96658832, 96658833, 97769915, 96551967, 97769903, 96551964, 9655196.
R-M7N-38:
- Grundfos NB 40, NB 50, NB 65, NB 80, NB 100, NB 125, NB 150.
Article Grundfos: 96551960, 97769917, 96551962, 97769905, 96551929, 96551961, 96658855, 97769918, 96658856, 97769906, 96658853, 96658854.
R-M7N-48:
- Grundfos NB 80, NB 100, NB 125, NB 150.
Article Grundfos: 96658866, 97685505, 96658867, 97685502, 96658864, 96658865, 96658799, 97685504, 96658800, 97685501, 96658798 96,658,797.
R-M7N-55:
- Grundfos NB 150, NB 200, NB 250.
Article Grundfos: 96658810, 97685588, 96658811, 97685584, 96658808, 96658809, 97536543, 97685589, 97536544, 97685585, 97769923, 97769925.
R-M7N-60:
- Grundfos NB 125, NB 150, NB 250.
Article Grundfos: 96658823, 97685590, 96658824, 97685586, 96658821, 96658822, 97536585, 97685591, 97536586, 97685587, 97769924, 97769926.
Possible applications in pumps: KSB, Grundfos, Allweiler and others.
Analog mechanical seals: Burgmann M7N, M74, Anga V, AESSEAL W07DM, Flowserve Europac 600, Sterling 270, Vulcan 1677.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

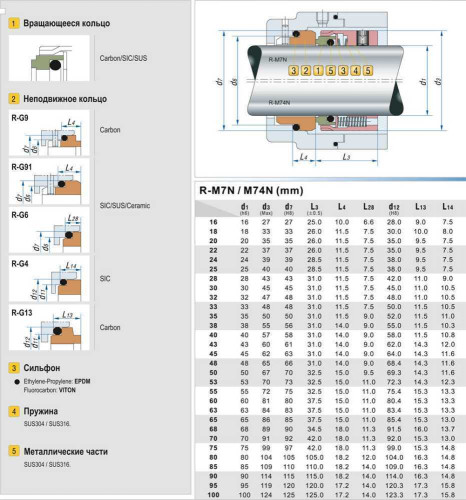

Documentation Mechanical seal R-M7N 70, CAR/SIC, EPDM, 304, G9
Download instructions, catalog for Mechanical seal R-M7N 70, CAR/SIC, EPDM, 304, G9
Video Mechanical seal R-M7N 70, CAR/SIC, EPDM, 304, G9
Mechanical seal R-M7N 70, CAR/SIC, EPDM, 304, G9 reviews
