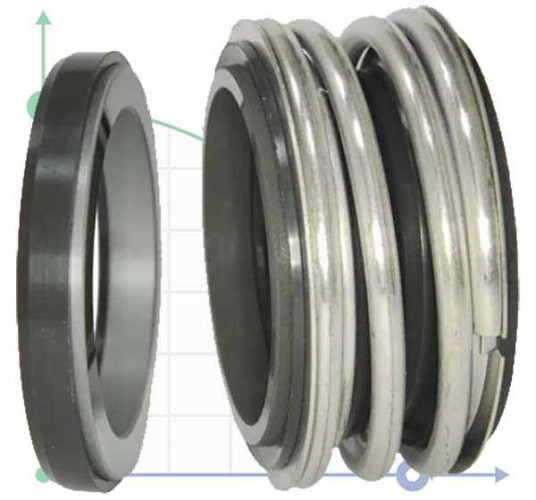

Mechanical seal R-MG1 8, CAR/CER, EPDM, 304, G60
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
CAR/CER
Pressure:
1,6 mPa
Operating temperature:
-20°C + 140°C
Rotation velocity:
10 m/s
Seal type:
R-MG1
Type of conta-ring:
G60
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards
Features Mechanical seal R-MG1 8, CAR/CER, EPDM, 304, G60
Producer | BTS Engineering |
Stationary and rotating face | CAR/CER |
Pressure | 1,6 mPa |
Operating temperature | -20°C + 140°C |
Rotation velocity | 10 m/s |
Seal type | R-MG1 |
Type of conta-ring | G60 |
Shaft diameter | 8 |
Rubber type | EPDM |
Material of metal part | 304 |
Application | Pentax, SAER, Salmson, SD, Seepex, SPOMASZ ZAMOŚĆ S.A., Standard, Sulzer ABS, Svanehoj, TAJFUN, WILO, Yulo, Zenith, Pedrollo, Nocchi, Mas Daf, KSB, Alfa Laval, Speroni, ALLWEILER, CNP, CRI-MAN SpA, DAB, DWO, Ebara, KM, KML, ERDURO, Evroaqua, Foras, Grundfos, GÜCÜM, EMAUX, Hidrostal, Hydro-Vacuum S.A., Inoxpa, IRG, Johnson pump |
Analogue for | AESSEAL B02, AESSEAL B09U, Anga A1, Burgmann MG1, DIMER TCP.1-60, Flowserve 190, Hermetyka M212.N2, Latty T700, LIDERING LRB17, Roten L3, Sterling SMG1, US SEAL VGMC-1, Vulcan 19 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-MG1 8, CAR/CER, EPDM, 304, G60
Single End seal MG1, with an elastomeric bellows, unbalanced, with a central spring, independent of the direction of rotation of the shaft. Used in centrifugal pumps, mixers and other equipment, it is particularly recommended for the media, which contain solids (e.g., sewage).
Apply at temperatures from -20 to + 140°C, pressures up to 1.6 MPa and the rotation speed to 10 m/sec.
Possible use in pumps Alfa Laval, Ebara (3M, DWO), Lowara, KSB (Etanorm, Etachrom), WILO (MVI, MHI, IPL / DPL), Grundfos (CDM), Saer (IP), Calpeda (GM, MXS) , Gnome, KM, DAB, Johnson Pump, Foras, Zenit (DTRT) and others.
Analog mechanical seals: Burgmann MG1, AESSEAL B09U / B02, Flowserve Pac-Seal 190, ROTEN L3, Vulcan Type 19, ANGA A1, Sterling SMG1, Sealant 212.N2.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
