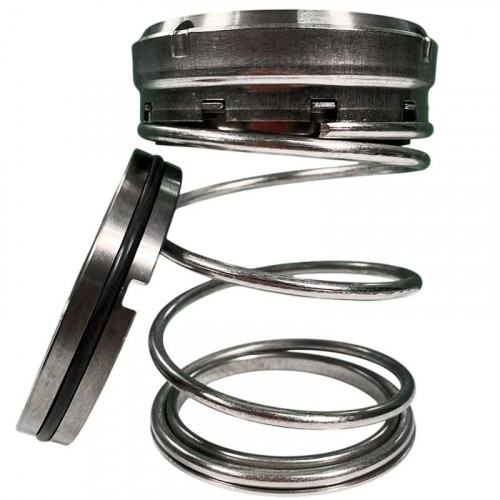

Mechanical seal for pump shaft R-T1 1.3/8, TC/TC, VITON, 304, WG

Brand:

BTS Engineering

0 Comment

Characteristics

Producer:

BTS Engineering

Pressure:

1.7 MPa

Operating temperature:

-40°C +200°C

Rotation velocity:

13 m/s

Seal type:

R-T1

Stationary and rotating face:

TC/TC

Material of metal part:

AISI 304 stainless steel

See all

Categories

R-T1 / R-FBC

Favorite

Compare

Products from the same category

Mechanical seal for pump GRUNDFOS, Tuthill R-T1 1.7/16, SIC/SIC, VITON, 304

Pre-order only

$139

$147

-5%

Mechanical seal for Mission Pump R-T1 1.7/8, TC/TC, VITON, 304

Pre-order only

$378

$398

-5%

Mechanical seal for pump shaft R-T1 1/4, SIC/SIC, VITON, 304

Pre-order only

$19

$20

-5%

Ordinary Mechanical shaft seal R-FBC 90, SIC/SIC, VITON, 304, NG

Pre-order only

$439

$462

-5%

Ordinary Mechanical shaft seal R-FBC 95, SIC/SIC, VITON, 304, NG

Pre-order only

$463

$487

-5%

Ordinary Mechanical shaft seal R-FBC 100, SIC/SIC, VITON, 304, NG

Pre-order only

$487

$513

-5%

Features Mechanical seal for pump shaft R-T1 1.3/8, TC/TC, VITON, 304, WG

Producer	BTS Engineering
Pressure	1.7 MPa
Operating temperature	-40°C +200°C
Rotation velocity	13 m/s
Seal type	R-T1
Stationary and rotating face	TC/TC
Material of metal part	AISI 304 stainless steel
Type of conta-ring	WG
Rubber type	VITON
Shaft diameter	1.3/8"
Application	Tuthill, Mission Pump, MCM, Mattco, Harrisburg, Halco, Dragon Derrickk, Cobra
Analogue for	Flowserve 51, Vulcan A5, Vulcan 22, US SEAL E, Sealol 43 CU Long, Roten 51A, LIDERING LRB00U + PF L50, John Crane 1, Flowserve 220, Burgmann MG901/D1-G55, AESSEAL P05U, AESSEAL P05T
Gross weight, kg	0.1
Length of transport packing, cm	6,5
Width of transport packing, cm	6,5
Height of transport packing, cm	6

Description Mechanical seal for pump shaft R-T1 1.3/8, TC/TC, VITON, 304, WG

The R-T1 mechanical shaft seal is used at temperatures from -40 to + 180°C, with a pressure of up to 1.7 MPa and a rotation speed of up to 13 m/s. It does not depend on the direction of rotation of the shaft. It has a reliable transmission due to its special design, which allows it to work in high pressure conditions. The R-T1 seal is used in pumps, mixers, air compressors, fans and other equipment. It is often used in the pulp and paper, petrochemical, food, processing, and energy industries. This seal is widely used in slurry pumps, in particular Mission Magnum & Supreme 2500, MCM250, Halco2500, Double Life250, Mattco, Harrisburg, Cobra, Dragon Derrickk premium 250 Analogues: John Crane Type1, Vulcan Type A5. Mechanical seal for pump Wilo, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
