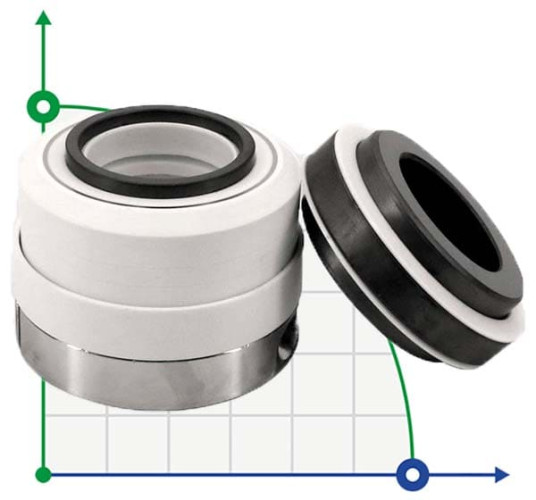

Mechanical seal PTFE bellows R-WB2R 40, SIC/SIC, PTFE, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
1.7 MPa
Operating temperature:
-40°C +200°C
Rotation velocity:
13 m/s
Seal type:
R-WB2
Shaft diameter:
40
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal PTFE bellows R-WB2R 25, SIC/SIC, PTFE, 316
Pre-order only
$175.70
Mechanical seal PTFE bellows R-WB2R 30, SIC/SIC, PTFE, 304
In stock
$175.70
Mechanical seal PTFE bellows R-WB2R 35, SIC/SIC, PTFE, 304
Pre-order only
$182.38
Mechanical seal PTFE bellows R-WB2R 45, SIC/SIC, PTFE, 304
In stock
$187.68
Mechanical seal PTFE bellows R-WB2R 50, SIC/SIC, PTFE, 304
Pre-order only
$189.08
Mechanical seal PTFE bellows R-WB2R 55, SIC/SIC, PTFE, 304
Pre-order only
$189.08
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal PTFE bellows R-WB2R 40, SIC/SIC, PTFE, 304
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 1.7 MPa |
Operating temperature | -40°C +200°C |
Rotation velocity | 13 m/s |
Seal type | R-WB2 |
Shaft diameter | 40 |
Rubber type | PTFE |
Material of metal part | 304 |
Analogue for | John Crane 10R, Anga A11 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal PTFE bellows R-WB2R 40, SIC/SIC, PTFE, 304
Bellows R-WB2R of Teflon (PTFE), resistant to high concentrations of acids, salts, strong oxidants, and reactive organic compounds.
Analogue mechanical seals: John Crane 10T / 10R, Anga A10 / 11.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal PTFE bellows R-WB2R 40, SIC/SIC, PTFE, 304
Download instructions, catalog for Mechanical seal PTFE bellows R-WB2R 40, SIC/SIC, PTFE, 304
Video Mechanical seal PTFE bellows R-WB2R 40, SIC/SIC, PTFE, 304
