Mechanical seal R-BT-FN.NU 25, SIC/SIC, VITON, 304, G60
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
1.4 MPa
Operating temperature:
-20°C +180°C
Rotation velocity:
15 m/s
Seal type:
R-BT-FN.NU
Type of conta-ring:
G60
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-BT-FN.NU 25, SIC/SIC, EPDM, 304, G60
In stock
$45.28
Mechanical seal R-BT-FN.NU 20, SIC/SIC, VITON, 304, G60
Pre-order only
$43.93
Mechanical seal R-BT-FN.NU 22, SIC/SIC, VITON, 304, G60
Pre-order only
$48.02
Mechanical seal R-BT-FN.NU 28, SIC/SIC, VITON, 304, G60
Pre-order only
$60.37
Mechanical seal R-BT-FN.NU 30, SIC/SIC, VITON, 304, G60
Pre-order only
$65.84
Mechanical seal R-BT-FN.NU 32, SIC/SIC, VITON, 304, G60
Pre-order only
$70
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsWe recommend to see

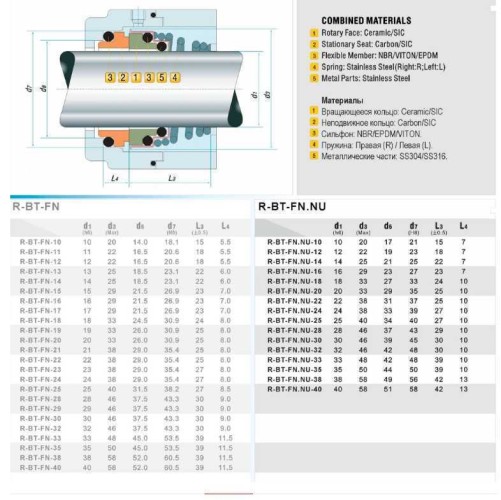

Features Mechanical seal R-BT-FN.NU 25, SIC/SIC, VITON, 304, G60
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 1.4 MPa |
Operating temperature | -20°C +180°C |
Rotation velocity | 15 m/s |
Seal type | R-BT-FN.NU |
Type of conta-ring | G60 |
Shaft diameter | 25 |
Rubber type | VITON |
Material of metal part | 304 |
Application | Processpumpar, Pedrollo, LOWARA, Speroni, Calpeda, GZA(SM), DAB, Ebara, Flowserve (SIHI), Grundfos, GTP |
Analogue for | Vulcan 13.DIN, Sterling SU3, Roten UNITEN 3, Roplan R62D, Latty T901D, Hermetica М112К.FRA, Flowserve 43D, DIMER TCO.15-7, Burgmann BT-FN.NU, AESSEAL T04D |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-BT-FN.NU 25, SIC/SIC, VITON, 304, G60

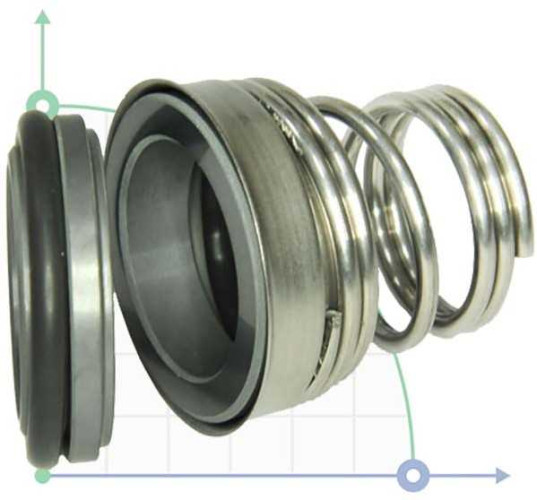

Single mechanical seal with conical spring R-BT-FN.NU and a one-way direction of rotation. Seal unbalanced. Widely used seal with conical spring.
Recommended for tandem pumps, milking clean water pumps for home and garden. Rotational ceramic movable ring is sealed in the installed parts auxiliary O-ring.
Possible use in pumps Lowara, Ebara (3M) and others.
Analog mechanical seals Burgmann BT-FN.NU, AESSEAL T04D, Roten UNITEN, Vulcan 13.DIN, Sterling SU3, Roplan R62D, Latty T901D, Flowserve 43D.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
