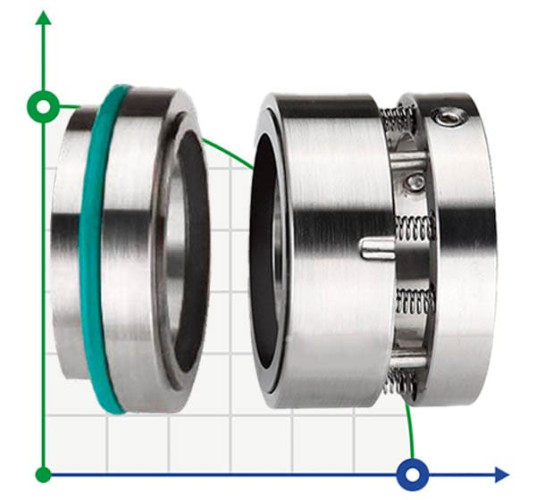

Mechanical seal R-102U 28, SIC/SIC, VITON, 304, T5A
Mechanical seal R-102U 28, SIC/SIC, VITON, 304, T5A
Mechanical seal R-102U 28, SIC/SIC, VITON, 304, T5A
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
1.2 MPa
Operating temperature:
-30°C +180°C
Rotation velocity:
10 m/s
Seal type:
R-102U
Type of conta-ring:
T5A
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-102U 25, SIC/SIC, VITON, 304, T5A
Pre-order only
$127.24
Mechanical seal R-102U 30, SIC/SIC, VITON, 304, T5A
Pre-order only
$153.90
Mechanical seal R-102U 35, SIC/SIC, VITON, 304, T5A
Pre-order only
$179.04
Mechanical seal R-102U 40, SIC/SIC, VITON, 304, T5A
Pre-order only
$304.77
Mechanical seal R-102U 80, SIC/SIC, VITON, 304, T5A
Pre-order only
$610.97
Mechanical seal R-102U 85, SIC/SIC, VITON, 304, T5A
Pre-order only
$649.45
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-102U 28, SIC/SIC, VITON, 304, T5A
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 1.2 MPa |
Operating temperature | -30°C +180°C |
Rotation velocity | 10 m/s |
Seal type | R-102U |
Type of conta-ring | T5A |
Shaft diameter | 28 |
Rubber type | VITON |
Material of metal part | 304 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-102U 28, SIC/SIC, VITON, 304, T5A
Mechanical seal R-102U is used at temperatures ranging from -20 to + 120°C, a pressure up to 1, 2 MPa and the rotation speed to 10 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.

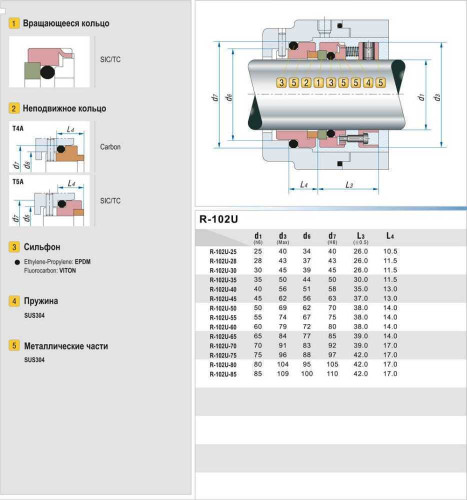

Documentation Mechanical seal R-102U 28, SIC/SIC, VITON, 304, T5A
Download instructions, catalog for Mechanical seal R-102U 28, SIC/SIC, VITON, 304, T5A
