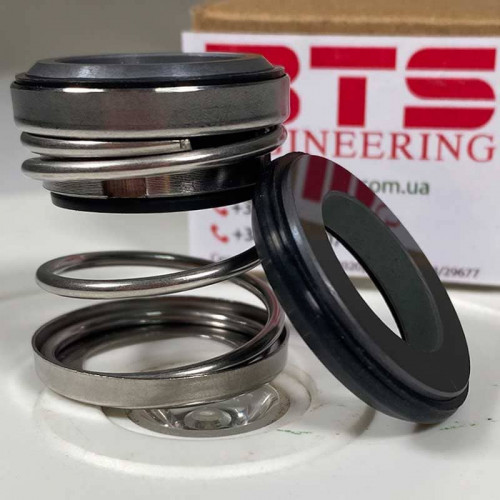

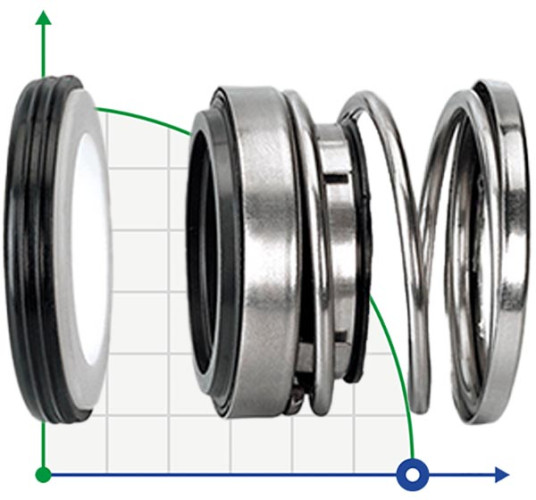

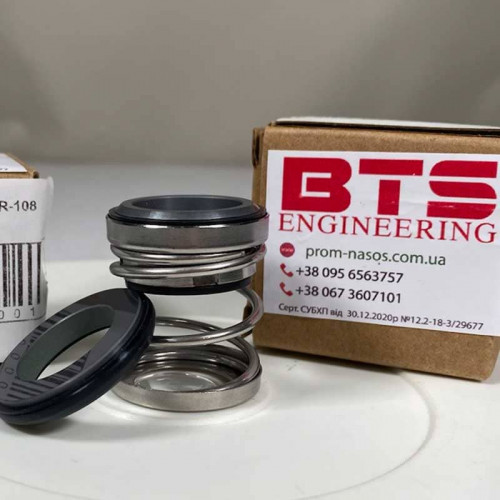

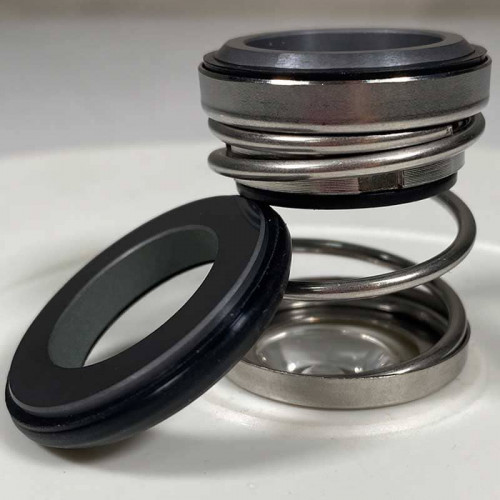

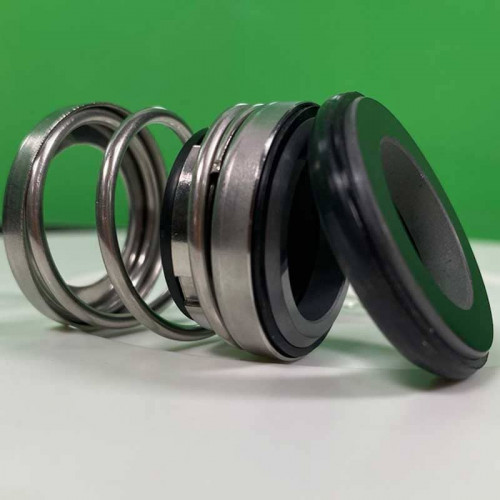

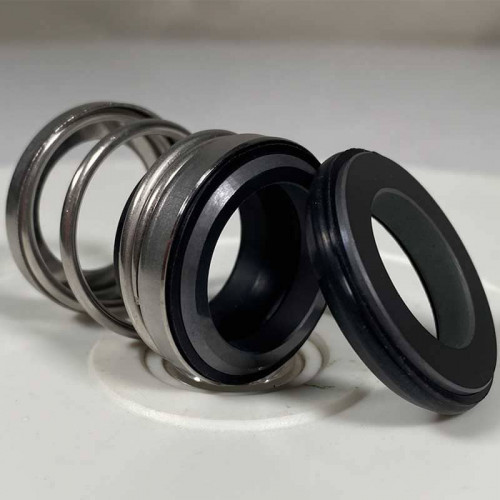

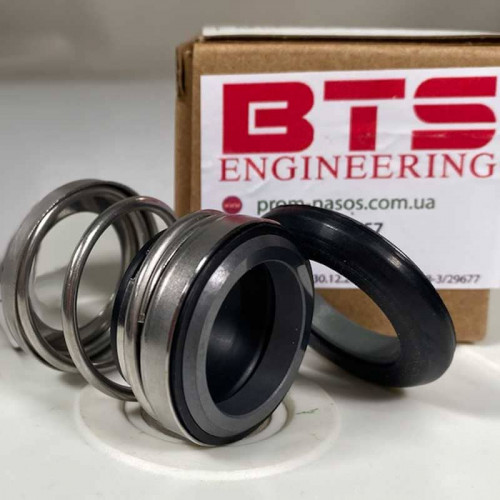

Mechanical seal R-108 15, SIC/SIC, EPDM, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
0,6 MPa
Operating temperature:
-20°C + 150°C
Rotation velocity:
8 m/s
Seal type:
R-108
Shaft diameter:
15
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-108 11, SIC/SIC, EPDM, 304
Pre-order only
$20.25
Mechanical seal R-108 12, SIC/SIC, EPDM, 304
Pre-order only
$21.65
Mechanical seal R-108 14, SIC/SIC, EPDM, 304
Pre-order only
$24.34
Mechanical seal R-108 16, SIC/SIC, EPDM, 304
Pre-order only
$28.43
Mechanical seal R-108 17, SIC/SIC, EPDM, 304
Pre-order only
$29.76
Mechanical seal R-108 17, SIC/SIC, EPDM, 304, L
Pre-order only
$29.76
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-108 15, SIC/SIC, EPDM, 304

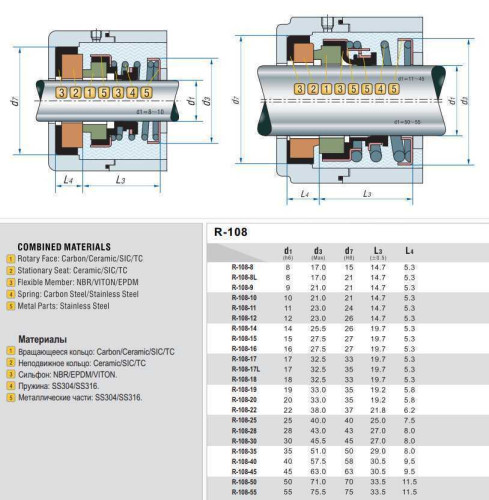

Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 0,6 MPa |
Operating temperature | -20°C + 150°C |
Rotation velocity | 8 m/s |
Seal type | R-108 |
Shaft diameter | 15 |
Rubber type | EPDM |
Material of metal part | 304 |
Application | Pentair Swimmey, Taifu, Othmro, OPTIMA, Onga, Aquario, AL-KO, Aquaria, Aquatechnika, Kripsol, ASTA, Dreno, E-Tech, Europump, H.World, Inbeat |
Analogue for | Burgmann MG910/D1-G50, AESSEAL P01, AESSEAL P01T, Flowserve 100, John Crane 1A, Latty T100, LEADERING LRB00L, Roten 51, Us Seal U, Vulcan 10, Vulcan A1 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-108 15, SIC/SIC, EPDM, 304
Mechanical seal R-108 is used at temperatures up to + 120°C, a pressure up to 1, 2 MPa and rotation speed of 25 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-108 15, SIC/SIC, EPDM, 304
Download instructions, catalog for Mechanical seal R-108 15, SIC/SIC, EPDM, 304
Video Mechanical seal R-108 15, SIC/SIC, EPDM, 304
Mechanical seal R-108 15, SIC/SIC, EPDM, 304 reviews
Help in selection
+38 067 360-71-01
Selection of mechanical seals
+38 095 656-37-57
Pump selection
If you have any questions when placing an order, or need help choosing a product, please contact the specified contacts.
