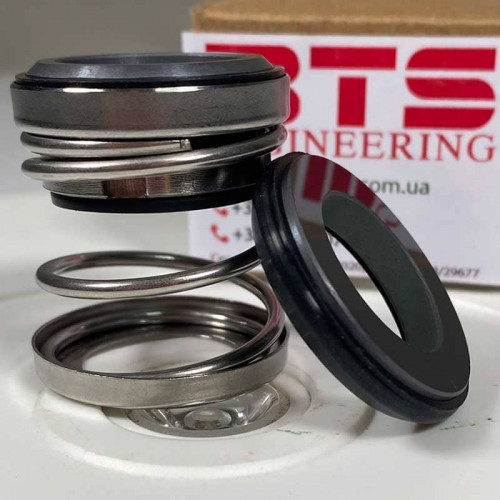

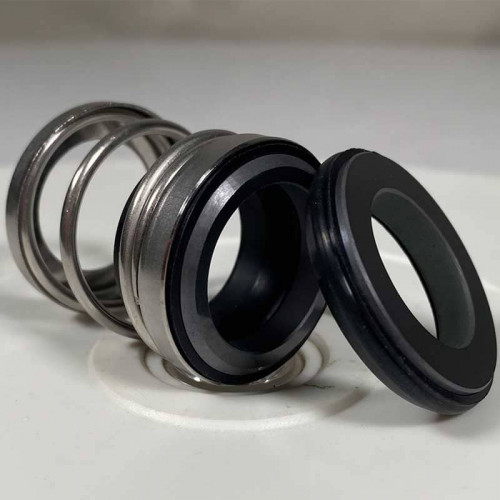

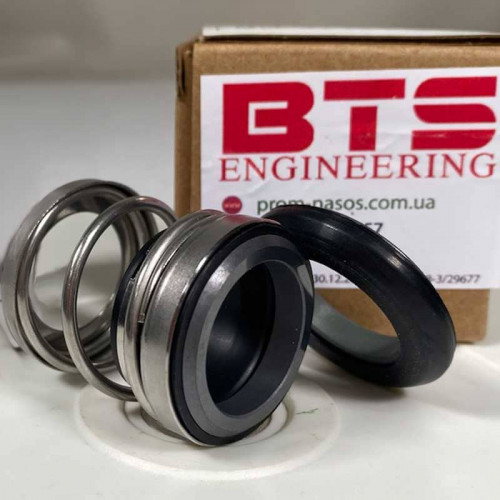

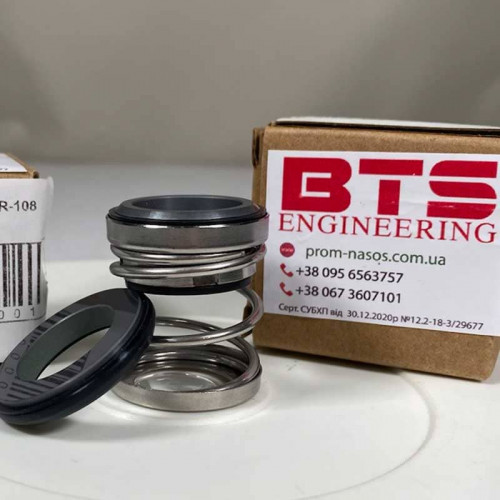

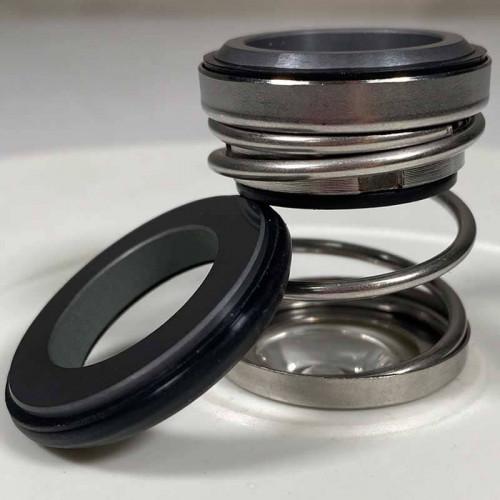

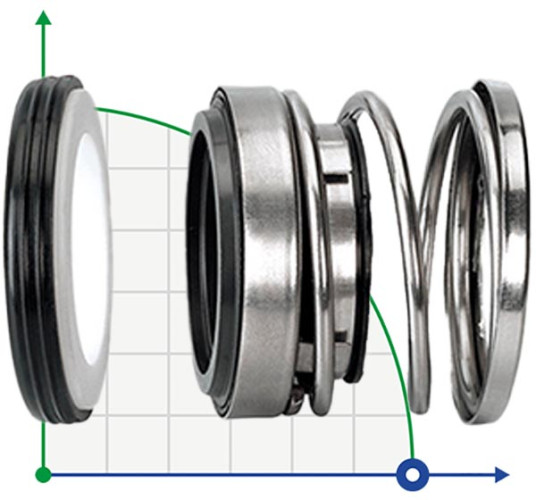

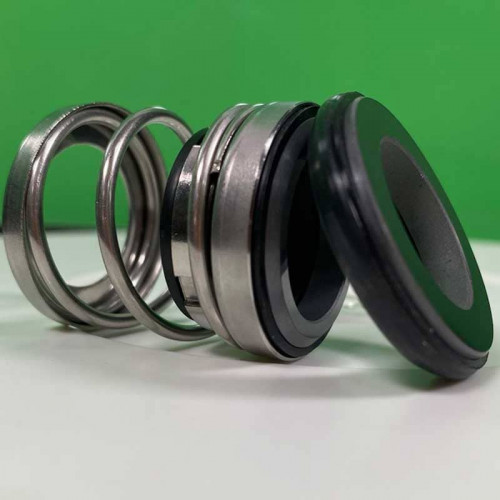

Mechanical seal R-108 25, SIC/SIC, EPDM, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
0,6 MPa
Operating temperature:
-20°C + 150°C
Rotation velocity:
8 m/s
Seal type:
R-108
Shaft diameter:
25
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-108 19, SIC/SIC, EPDM, 304
Pre-order only
$33.83
Mechanical seal R-108 20, SIC/SIC, EPDM, 304
In stock
$41.92
Mechanical seal R-108 22, SIC/SIC, EPDM, 304
Pre-order only
$35.19
Mechanical seal R-108 28, SIC/SIC, EPDM, 304
Pre-order only
$59.47
Mechanical seal R-108 30, SIC/SIC, EPDM, 304
Pre-order only
$64.92
Mechanical seal R-108 35, SIC/SIC, EPDM, 304
Pre-order only
$74.39
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-108 25, SIC/SIC, EPDM, 304
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 0,6 MPa |
Operating temperature | -20°C + 150°C |
Rotation velocity | 8 m/s |
Seal type | R-108 |
Shaft diameter | 25 |
Rubber type | EPDM |
Material of metal part | 304 |
Application | Pentair Swimmey, Taifu, OPTIMA, Othmro, Onga, Kripsol, AL-KO, Aquaria, Aquario, Aquatechnika, ASTA, Dreno, E-Tech, Europump, H.World, Inbeat |
Analogue for | Burgmann MG910/D1-G50, AESSEAL P01, AESSEAL P01T, Flowserve 100, John Crane 1A, Latty T100, LEADERING LRB00L, Roten 51, Us Seal U, Vulcan 10, Vulcan A1 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-108 25, SIC/SIC, EPDM, 304
Mechanical seal R-108 is used at temperatures up to + 120°C, a pressure up to 1, 2 MPa and rotation speed of 25 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
