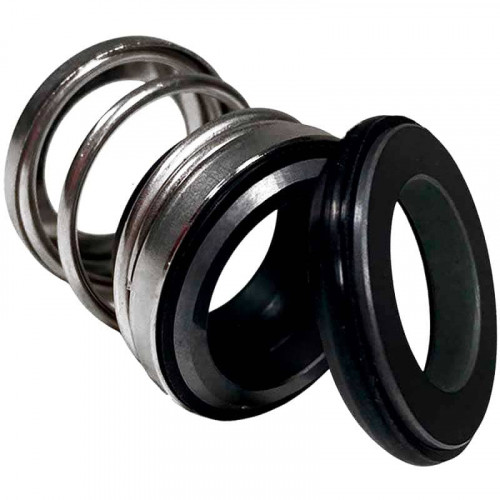

Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Pressure:
0,6 MPa
Operating temperature:
-20°C + 150°C
Rotation velocity:
8 m/s
Seal type:
R-108
Outer diameter of the fixed ring, mm:
43
Stationary and rotating face:
SIC/SIC
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-108 22, SIC/SIC, EPDM, 304
Pre-order only
$34
Mechanical seal for pump shaft R-108 25, SIC/SIC, EPDM, 304 type ROTEN 51, LIDERING LRB00L, JOHN CRANE 1A
Pre-order only
$52
Mechanical seal for pump shaft R-108 30, SIC/SIC, EPDM, 304
Pre-order only
$63
Mechanical seal for pump shaft R-108 35, SIC/SIC, VITON, 316
Pre-order only
$86
Mechanical seal for pump shaft R-108 40, SIC/SIC, EPDM, 304
Pre-order only
$109
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Producer | BTS Engineering |
Pressure | 0,6 MPa |
Operating temperature | -20°C + 150°C |
Rotation velocity | 8 m/s |
Seal type | R-108 |
Outer diameter of the fixed ring, mm | 43 |
Stationary and rotating face | SIC/SIC |
Material of metal part | AISI 304 stainless steel |
Rubber type | EPDM |
Shaft diameter | 28 |
Application | AL-KO, H.World, Aquaria, Aquatechnika, ASTA, Dreno, E-Tech, Europump, Inbeat, Kripsol, Onga, OPTIMA, Othmro, Pentair Swimmey, Taifu, Aquario |
Analogue for | Vulcan 10, Burgmann MG910/D1-G50, Flowserve 100, John Crane 1A, Latty T100, LEADERING LRB00L, Roten 51, Us Seal U, Vulcan A1, AESSEAL P01T, AESSEAL P01 |
Gross weight, kg | 0.1 |
Length of transport packing, cm | 5,5 |
Width of transport packing, cm | 5 |
Height of transport packing, cm | 5 |
Description Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Mechanical seal R-108 is used at temperatures up to + 120 ° C, with a pressure of up to 1.2 MPa and a rotation speed of up to 25 m / s. Mechanical seal for pumps Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos, for pumps KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pumps SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
Download instructions, catalog for Mechanical seal for pump shaft R-108 28, SIC/SIC, EPDM, 304
