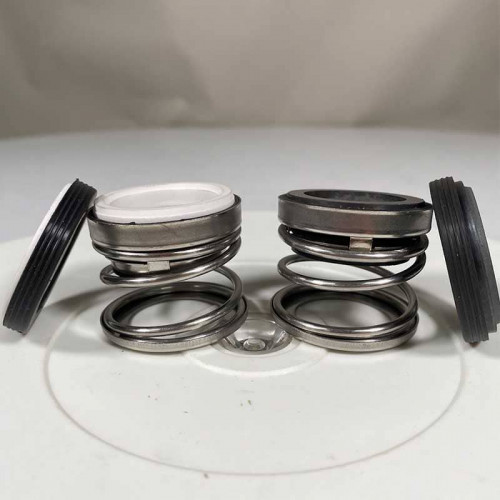

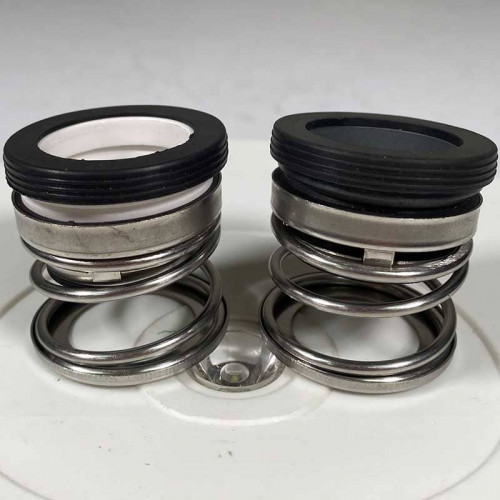

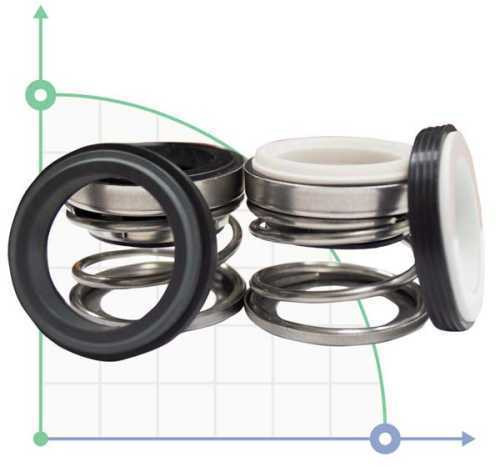

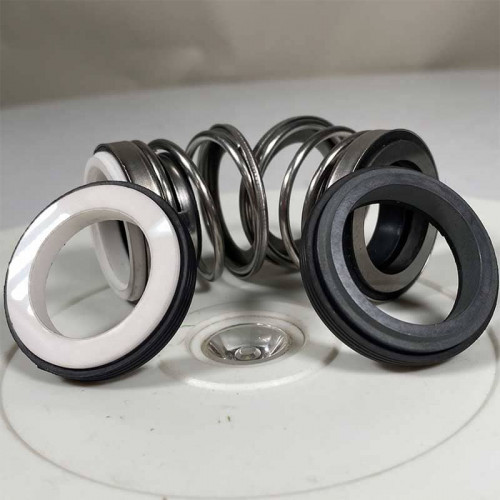

Mechanical seal R-108D 45, СER/CER/SIC/SIC, NBR, 304
Mechanical seal R-108D 45, СER/CER/SIC/SIC, NBR, 304
Mechanical seal R-108D 45, СER/CER/SIC/SIC, NBR, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
CER/CER/SIC/SIC
Pressure:
0,6 MPa
Operating temperature:
-20°C + 150°C
Rotation velocity:
8 m/s
Seal type:
R-108D
Shaft diameter:
45
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-108D 25, CER/TC/CER/TC, NBR, 304
Pre-order only
$104.31
Mechanical seal R-108 10, SIC/SIC, EPDM, 304
Pre-order only
$17.58
Mechanical seal R-108 11, SIC/SIC, EPDM, 304
Pre-order only
$20.25
Mechanical seal R-108D 25, СER/CER/SIC/SIC, NBR, 304
In stock
$104.31
Mechanical seal R-108D 30, СER/CER/SIC/SIC, NBR, 304
Pre-order only
$126.18
Mechanical seal R-108D 30, СER/CER/СER/CER, NBR, 304
Pre-order only
$126.18
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-108D 45, СER/CER/SIC/SIC, NBR, 304
Producer | BTS Engineering |
Stationary and rotating face | CER/CER/SIC/SIC |
Pressure | 0,6 MPa |
Operating temperature | -20°C + 150°C |
Rotation velocity | 8 m/s |
Seal type | R-108D |
Shaft diameter | 45 |
Rubber type | NBR |
Material of metal part | 304 |
Application | Speroni |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-108D 45, СER/CER/SIC/SIC, NBR, 304

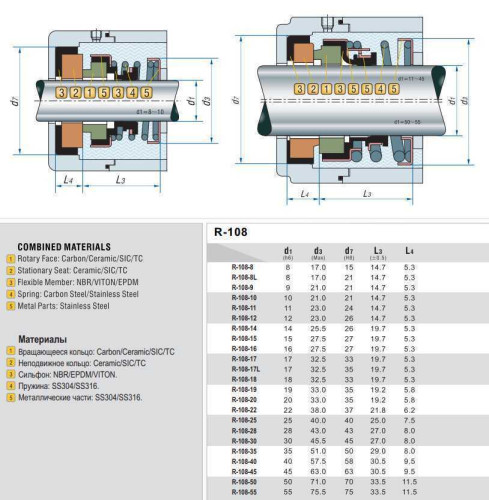

The double mechanical seal R-108D is used at temperatures ranging from -40 to + 120°C, a pressure of 0 to 6 MPa and rotation speed of 8 m/sec.
WQ pumps used in the following types:
25 shaft-50WQ20-15-1.5
30 shaft-80WQ40-15-4.0
45 shaft-WQ100-15-7.5
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-108D 45, СER/CER/SIC/SIC, NBR, 304
Download instructions, catalog for Mechanical seal R-108D 45, СER/CER/SIC/SIC, NBR, 304
