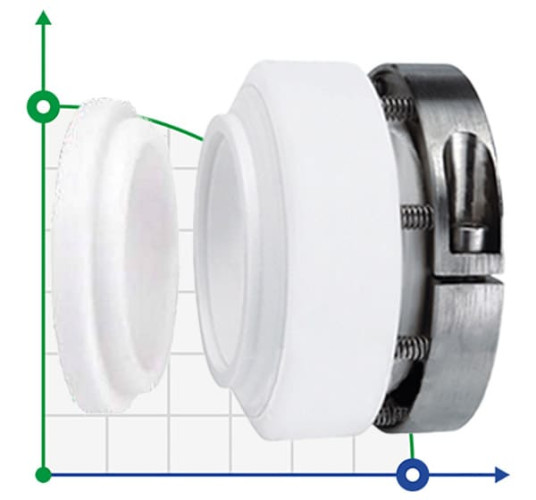

PTFE bellows mechanical seal R-152T 35, PTFE/CER, PTFE
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
PTFE/CER
Pressure:
0.5 MPa
Rate of turn, rpm:
3 000
Operating temperature:
from -20 to +120
Seal type:
R-152T
Shaft diameter:
35
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cards

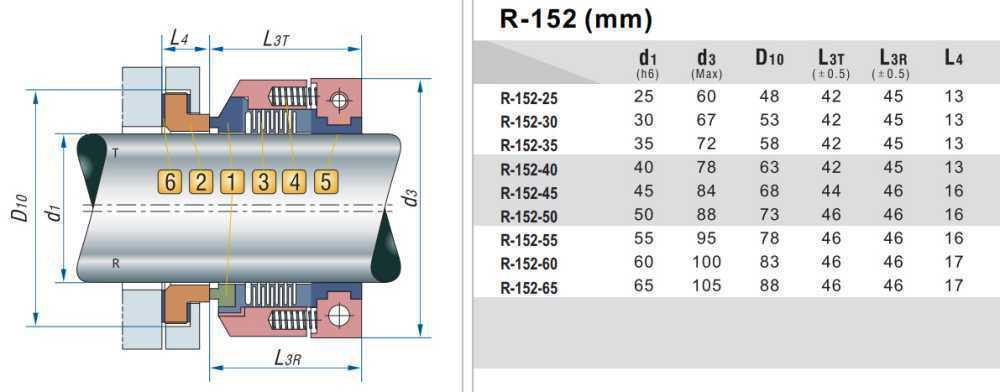

Features PTFE bellows mechanical seal R-152T 35, PTFE/CER, PTFE
Producer | BTS Engineering |
Stationary and rotating face | PTFE/CER |
Pressure | 0.5 MPa |
Rate of turn, rpm | 3 000 |
Operating temperature | from -20 to +120 |
Seal type | R-152T |
Shaft diameter | 35 |
Rubber type | PTFE |
Analogue for | AESSEL B08, Flowserve TBR, LEADERING LTB16, John Crane 10T, Fluiten ES, Corropac 30, Anga A10 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description PTFE bellows mechanical seal R-152T 35, PTFE/CER, PTFE
R-152 mechanical seal used at temperatures from -40 to + 120°C, a pressure of 0 to 5 MPa and the rotation speed to 3000 rev/min.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
