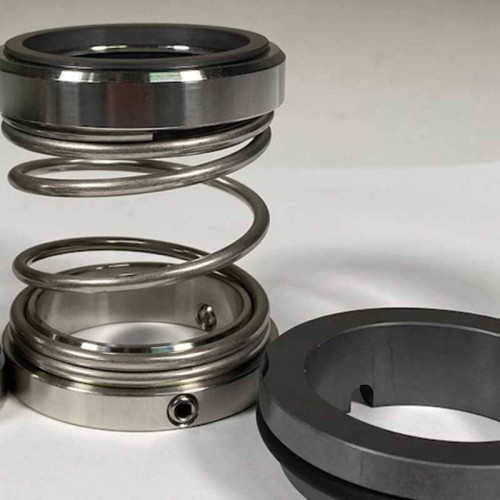

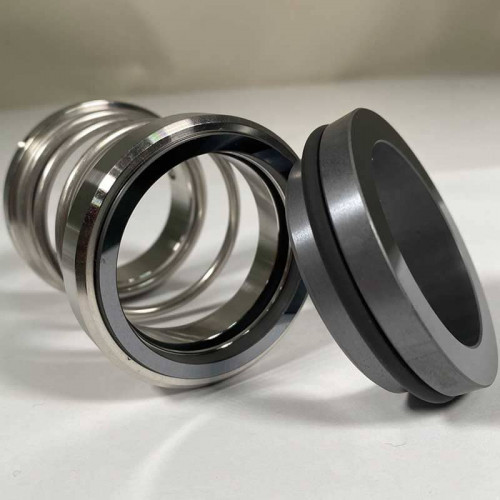

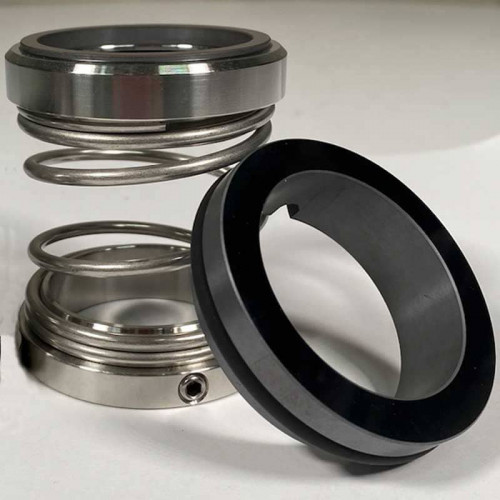

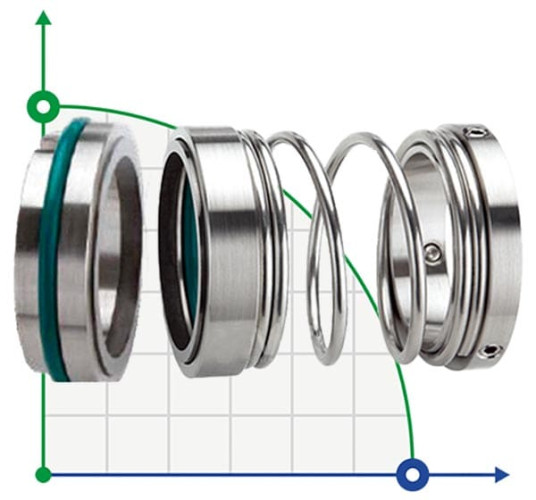

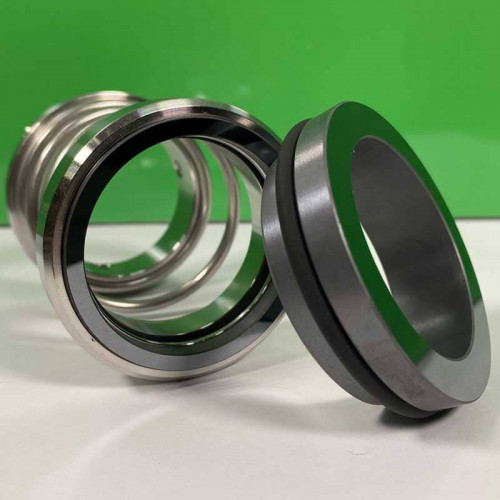

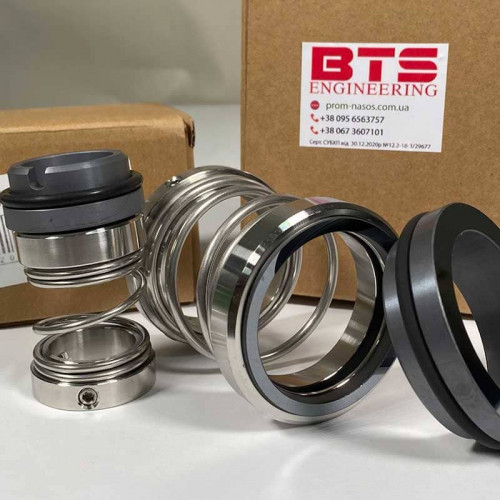

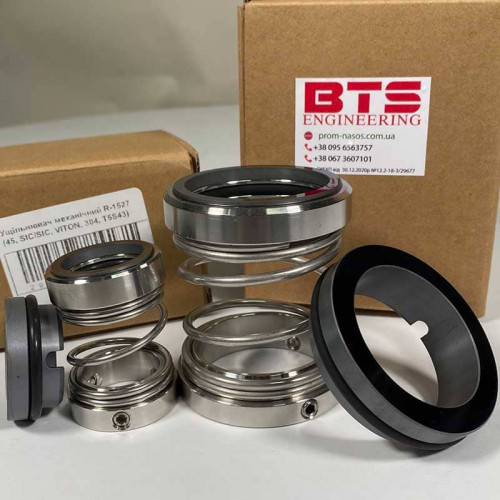

Mechanical seal R-1527 35, SIC/SIC, VITON, 304, T5S43
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
1.0 MPa
Operating temperature:
-40°C +150°C
Rotation velocity:
10 m/s
Seal type:
R-1527
Type of conta-ring:
T5S43
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-1527 30, SIC/SIC, VITON, 304, T5S43
In stock
$114.51
Mechanical seal R-1527 32, SIC/SIC, VITON, 304, T5S43
Pre-order only
$141.09
Mechanical seal R-1527 33, SIC/SIC, VITON, 304, T5S43
Pre-order only
$145.11
Mechanical seal R-1527 38, SIC/SIC, VITON, 304, T5S43
Pre-order only
$167.73
Mechanical seal R-1527 40, CAR/SIC, EPDM, 304, T5S43
Pre-order only
$146.32
Mechanical seal R-1527 40, SIC/SIC, VITON, 304, T5S43
In stock
$175.70
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-1527 35, SIC/SIC, VITON, 304, T5S43
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 1.0 MPa |
Operating temperature | -40°C +150°C |
Rotation velocity | 10 m/s |
Seal type | R-1527 |
Type of conta-ring | T5S43 |
Shaft diameter | 35 |
Rubber type | VITON |
Material of metal part | 304 |
Application | KSB, Inoxpa, IH, D-SUB |
Analogue for | Vulcan 97, Sealol 1527, NIPPON PILLAR US-3, NIPPON PILLAR US-2, Latty T400, Flowserve 240, Flexibox R50, Flexibox R20 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-1527 35, SIC/SIC, VITON, 304, T5S43
R-1527 The mechanical seal is used at temperatures ranging from-40 to + 120°C, a pressure up to 1 MPa and the rotation speed to 10 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
