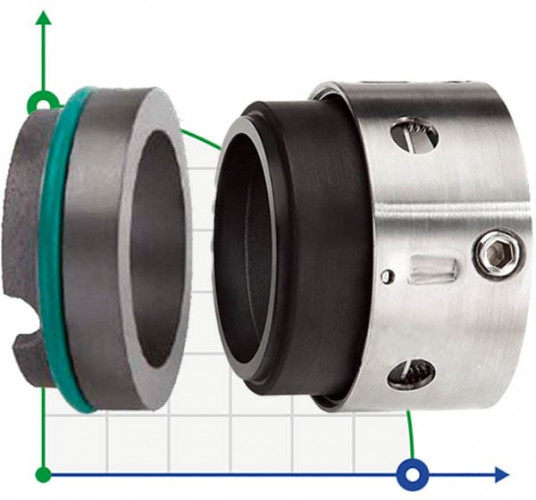

Mechanical seal R-58B 90, CAR/SIC, VITON, 304, ВО
Mechanical seal R-58B 90, CAR/SIC, VITON, 304, ВО
Mechanical seal R-58B 90, CAR/SIC, VITON, 304, ВО
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
CAR/SIC
Pressure:
5.2 MPa
Operating temperature:
-40°C +200°C
Rotation velocity:
25 m / s
Seal type:
R-58B
Type of conta-ring:
ВО
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-58B 75, CAR/SIC, VITON, 304, ВО
Pre-order only
$771.68
Mechanical seal R-58B 80, CAR/SIC, VITON, 304, ВО
Pre-order only
$822.93
Mechanical seal R-58B 85, CAR/SIC, VITON, 304, ВО
Pre-order only
$874.19
Mechanical seal R-58B 95, CAR/SIC, VITON, 304, ВО
Pre-order only
$976.69
Mechanical seal R-59B 100, CAR/SIC, PTFE, 304, ВО
Pre-order only
$1,022.06
Mechanical seal R-59B 100, CAR/SIC, PTFE, 316, ВО
Pre-order only
$1,022.06
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-58B 90, CAR/SIC, VITON, 304, ВО
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Pressure | 5.2 MPa |
Operating temperature | -40°C +200°C |
Rotation velocity | 25 m / s |
Seal type | R-58B |
Type of conta-ring | ВО |
Shaft diameter | 90 |
Rubber type | VITON |
Material of metal part | 304 |
Analogue for | John Crane 58B, Hermetica 351, Burgmann BT-C5.KB, AESSEAL M04SU, AESSEAL M04S, Vulcan 1659BS, LIDERING LMS20B |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |

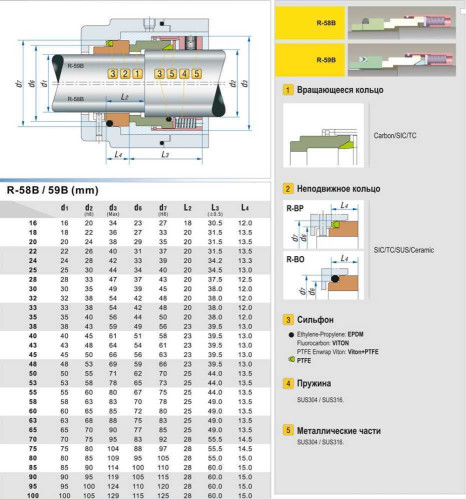

Description Mechanical seal R-58B 90, CAR/SIC, VITON, 304, ВО
R-58B mechanical seal is used at temperatures ranging from -40 to + 120°C, a pressure of 5 MPa and 2 rotation speed of 25 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-58B 90, CAR/SIC, VITON, 304, ВО
Download instructions, catalog for Mechanical seal R-58B 90, CAR/SIC, VITON, 304, ВО
