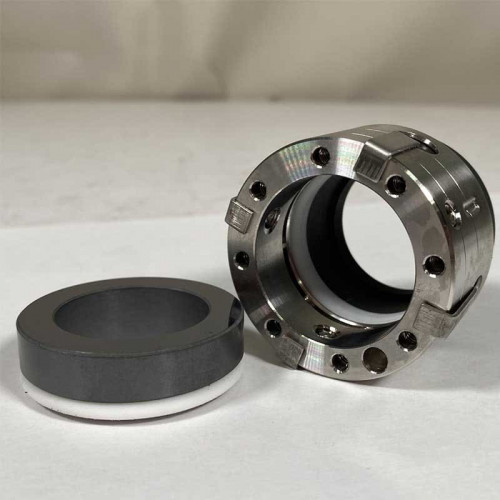

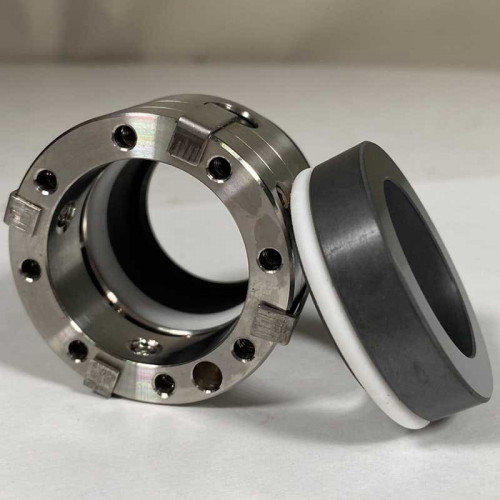

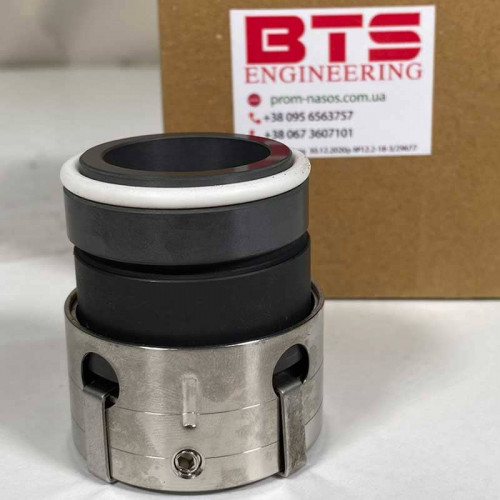

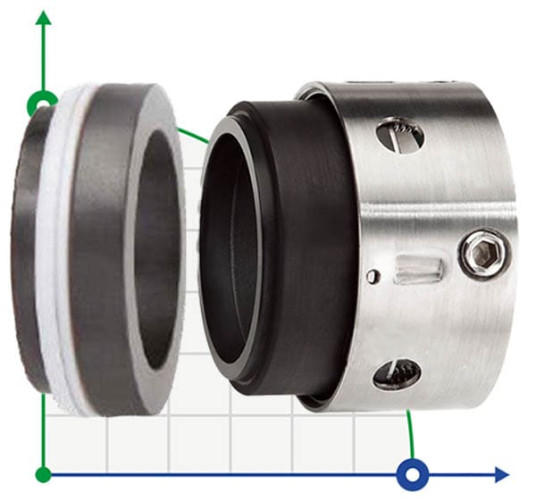

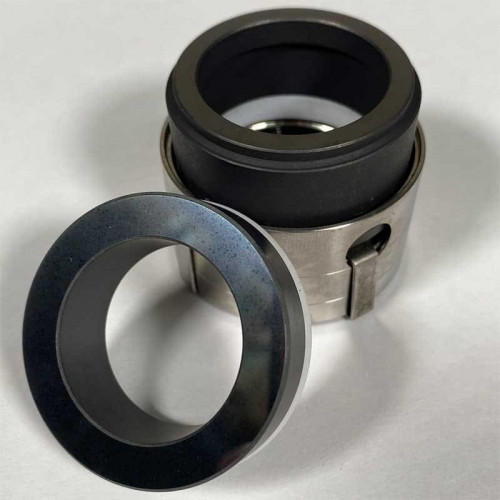

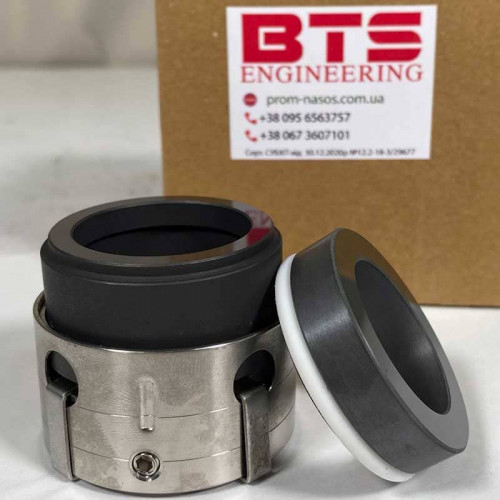

Mechanical seal R-59B 28, CAR/SIC, VITON, 304, ВР
Mechanical seal R-59B 28, CAR/SIC, VITON, 304, ВР
Mechanical seal R-59B 28, CAR/SIC, VITON, 304, ВР
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
CAR/SIC
Pressure:
5.2 MPa
Operating temperature:
-40°C +200°C
Rotation velocity:
25 m / s
Seal type:
R-59B
Type of conta-ring:
ВР
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal R-59B 25, CAR/SIC, VITON, 304, ВР
Pre-order only
$201.07
Mechanical seal R-59B 28, CAR/SIC, PTFE, 304, ВО
Pre-order only
$210.39
Mechanical seal R-59B 28, CAR/SIC, PTFE, 316, ВО
In stock
$210.39
Mechanical seal R-59B 30, CAR/SIC, PTFE, 304, ВО
Pre-order only
$210.39
Mechanical seal R-59B 30, CAR/SIC, PTFE, 316, ВО
Pre-order only
$210.39
Mechanical seal R-59B 30, CAR/SIC, VITON, 304, ВР
Pre-order only
$210.39
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal R-59B 28, CAR/SIC, VITON, 304, ВР
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Pressure | 5.2 MPa |
Operating temperature | -40°C +200°C |
Rotation velocity | 25 m / s |
Seal type | R-59B |
Type of conta-ring | ВР |
Shaft diameter | 28 |
Rubber type | VITON |
Material of metal part | 304 |
Application | KSB |
Analogue for | Vulcan 1659B, Burgmann BT-C56.KB, Anga VBT, AESSEAL M04U, AESSEAL M04 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Mechanical seal R-59B 28, CAR/SIC, VITON, 304, ВР
R-59B mechanical seal is used at temperatures ranging from -40 to + 120°C, a pressure of 5 MPa and 2 rotation speed of 25 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal R-59B 28, CAR/SIC, VITON, 304, ВР
Download instructions, catalog for Mechanical seal R-59B 28, CAR/SIC, VITON, 304, ВР
