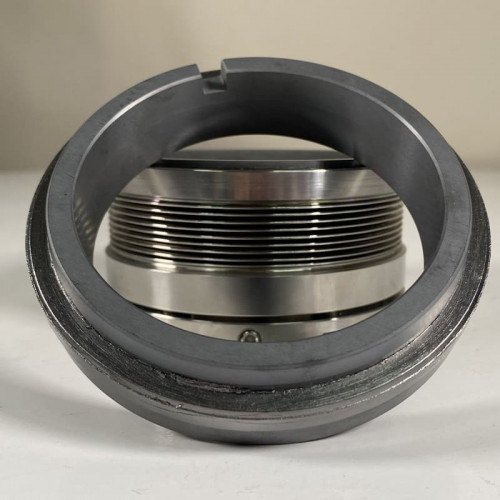

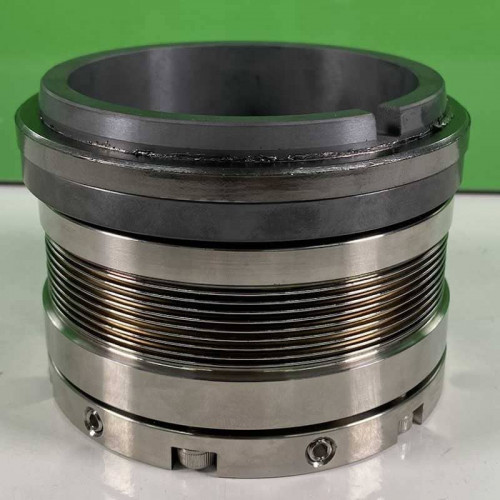

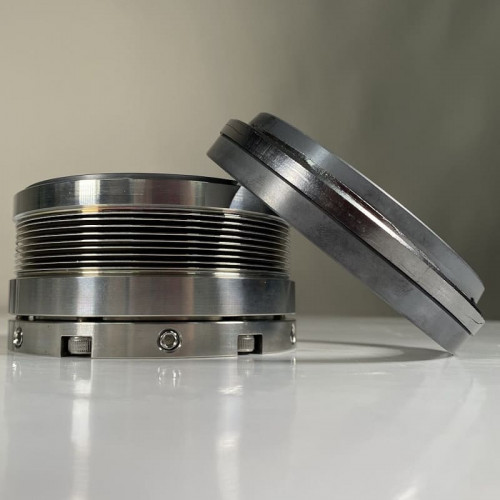

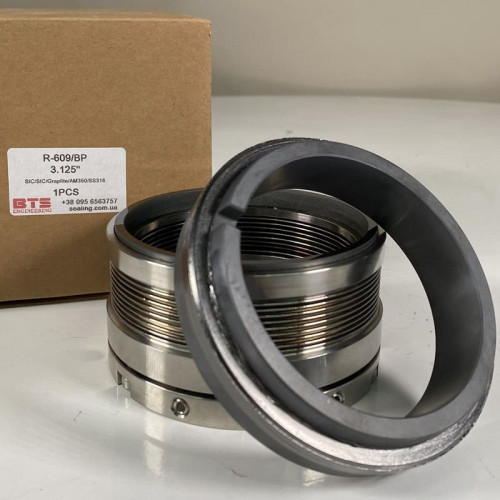

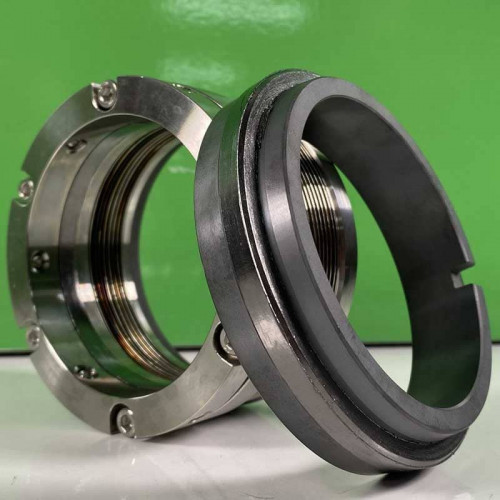

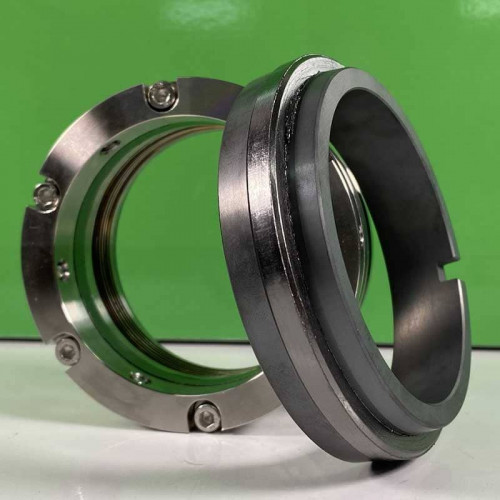

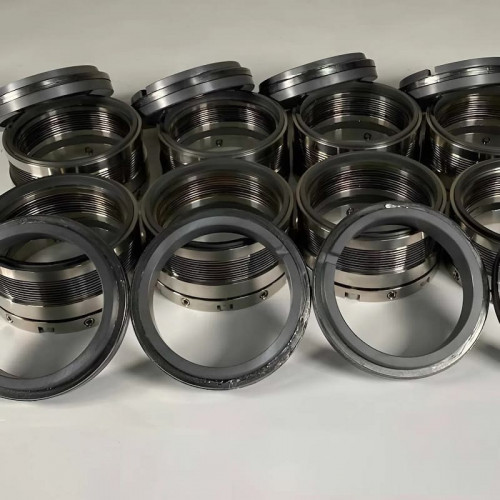

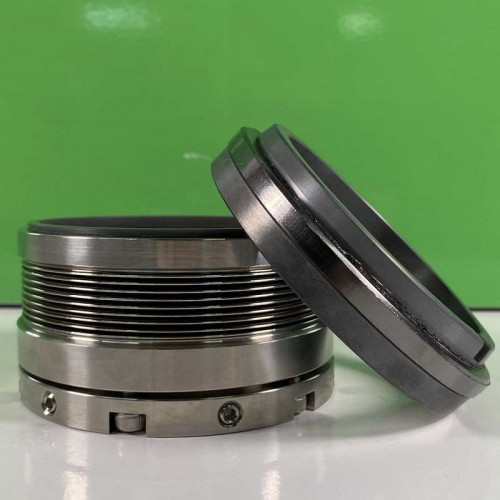

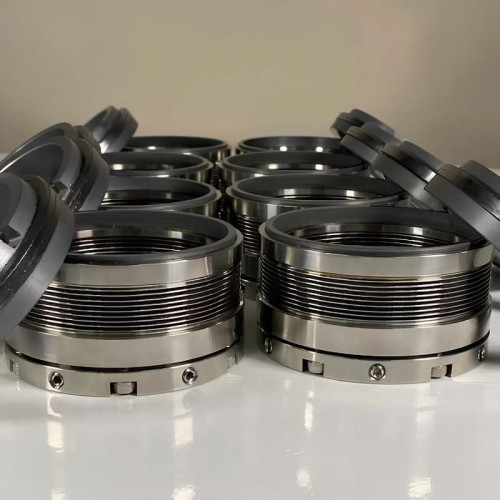

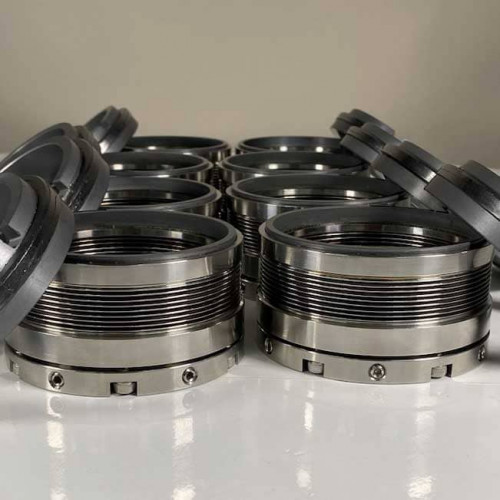

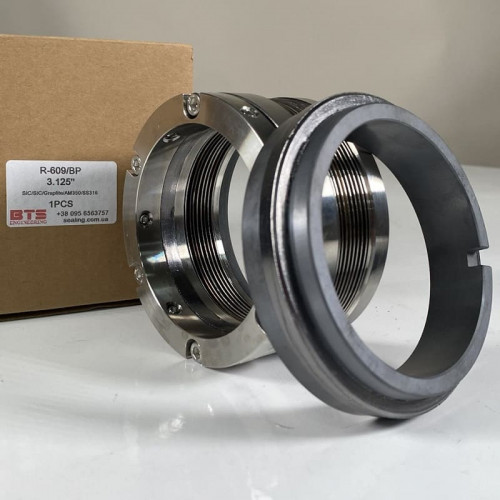

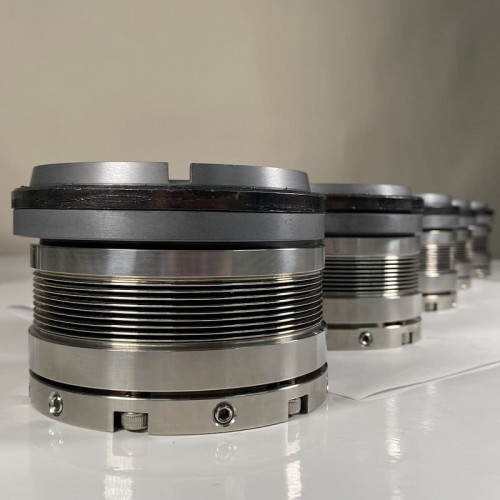

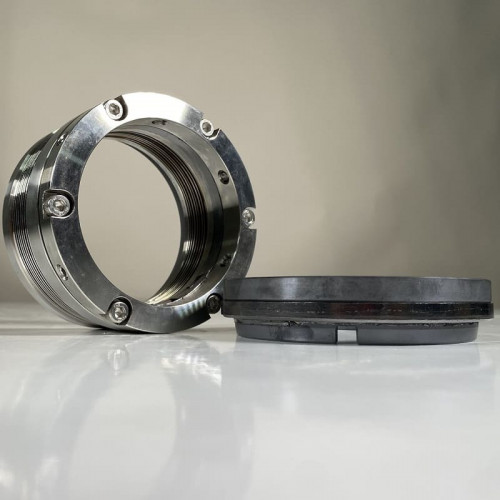

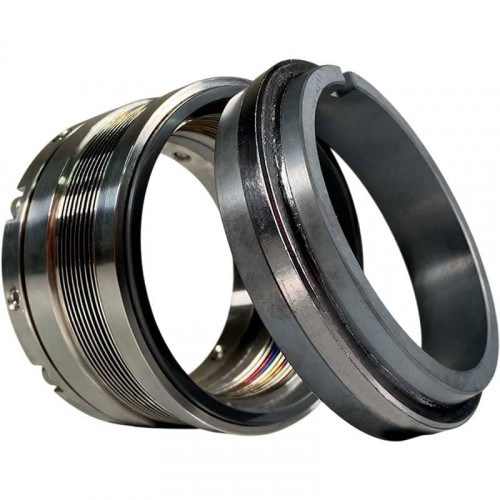

High temperature mechanical seal R-609 35, SIC/SIC, GRAFOIL, AM350/316
High temperature mechanical seal R-609 35, SIC/SIC, GRAFOIL, AM350/316
High temperature mechanical seal R-609 35, SIC/SIC, GRAFOIL, AM350/316
High temperature mechanical seal R-609 35, SIC/SIC, GRAFOIL, AM350/316
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
6.9 MPa
Operating temperature:
-75°C +425°C
Rotation velocity:
25 m / s
Seal type:
R-609
Shaft diameter:
35
See all
Documentation
Categories
Favorite
Compare
Products from the same category
High temperature mechanical seal R-609 25, SIC/SIC, GRAFOIL, AM350/316
Pre-order only
$393.13
High temperature mechanical seal R-609 28, SIC/SIC, GRAFOIL, AM350/316
Pre-order only
$440.49
High temperature mechanical seal R-609 32, SIC/SIC, GRAFOIL, AM350/316
Pre-order only
$503.08
High temperature mechanical seal R-609 38, SIC/SIC, GRAFOIL, AM350/316
Pre-order only
$597.78
High temperature mechanical seal R-609 40, SIC/SIC, GRAFOIL, AM350/316
Pre-order only
$629.04
High temperature mechanical seal R-609 45, SIC/SIC, GRAFOIL, AM350/316
Pre-order only
$707.68
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures High temperature mechanical seal R-609 35, SIC/SIC, GRAFOIL, AM350/316

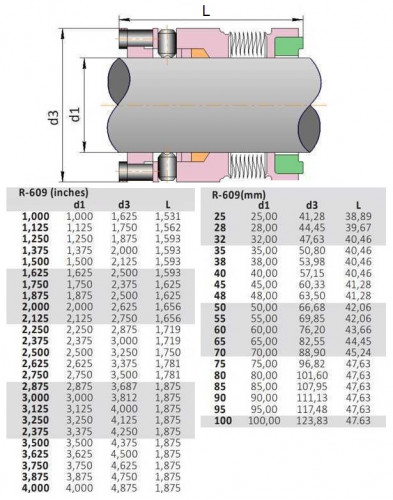

Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 6.9 MPa |
Operating temperature | -75°C +425°C |
Rotation velocity | 25 m / s |
Seal type | R-609 |
Shaft diameter | 35 |
Rubber type | GRAFOIL |
Material of metal part | AM350/316 |
Analogue for | John Crane 609, LIDERING LMB86 |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description High temperature mechanical seal R-609 35, SIC/SIC, GRAFOIL, AM350/316
R- mechanical seal 609 is designed for use at high temperatures (up to 425°C / 800°F) pumps without expensive and time consuming modifications to the seal chamber.
Applications include hot hydrocarbons, aqueous solutions, aromatic fractionation products, the products of crude oil fractionation and coolants.
Material execution:
The rotating ring (SiC / Carbon / TC),
Stationary ring (SiC / TC),
Secondary Seal (Flexible Graphite),
Metal bellows (SUS316L / AM350 / InconeI718 / Titanium / Hastelloy-C / AIIoy-20)
Other details (SUS304 / SUS316 / Titanium / Hastelloy-C)
Operating limits:
Pressure: ≤2MPa (single-layer bellows)
≤6, 9 MPa (dual-layer bellows)
Speed: ≤25 m/s
Temperature: -75ºC ~ + 425ºC
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
