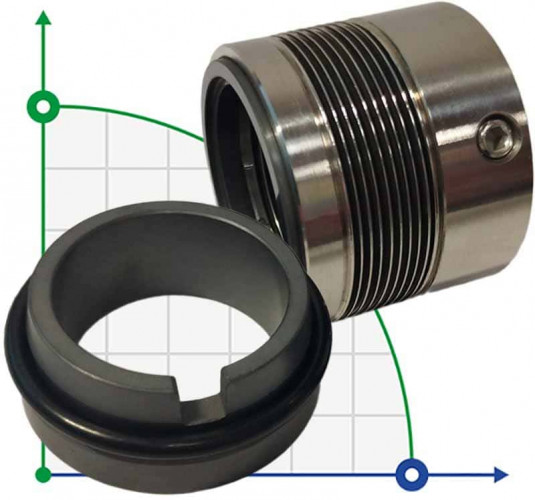

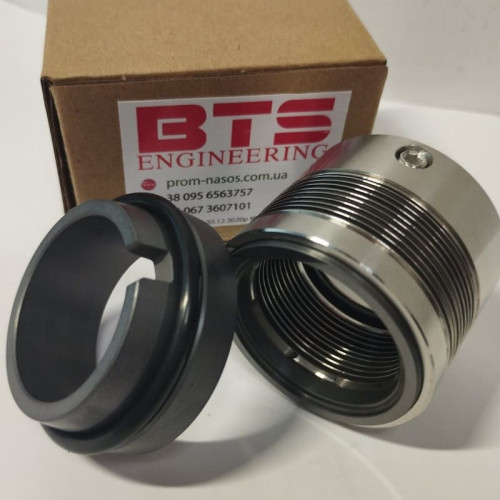

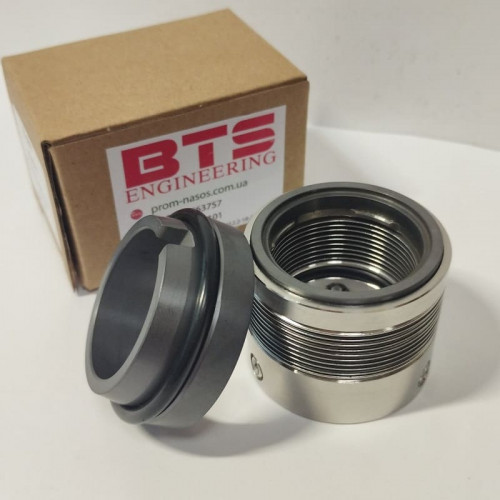

Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316
Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316
Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316
Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316
Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316
Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316
Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Pressure:
2.1 MPa
Operating temperature:
-20°C +200°C
Rotation velocity:
25 m / s
Seal type:
R-680
Shaft diameter:
2.5/8
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Metal bellows seals R-680 2.1/4, SIC/SIC, VITON, AM350/316
Pre-order only
$819.98
Metal bellows seals R-680 2.3/8, SIC/SIC, VITON, AM350/316
Pre-order only
$865.60
Metal bellows seals R-680 2.1/2, SIC/SIC, VITON, AM350/316
Pre-order only
$911.24
Metal bellows seals R-680 2.3/4, SIC/SIC, VITON, AM350/316
Pre-order only
$1,001.68
Metal bellows seals R-680 2.7/8, SIC/SIC, VITON, AM350/316
Pre-order only
$1,047.32
Metal bellows seals R-680 3, SIC/SIC, VITON, AM350/316
Pre-order only
$1,092.98
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Pressure | 2.1 MPa |
Operating temperature | -20°C +200°C |
Rotation velocity | 25 m / s |
Seal type | R-680 |

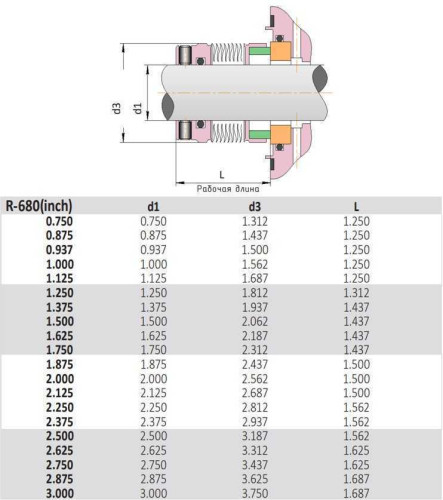

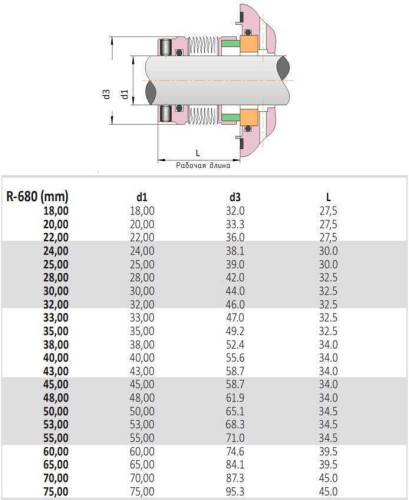

Shaft diameter | 2.5/8 |
Rubber type | VITON |
Material of metal part | AM350/316 |
Analogue for | LIDERING LMB85, Latty B17, John Crane 680, Chesterton 886, Burgmann M FL85N |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316

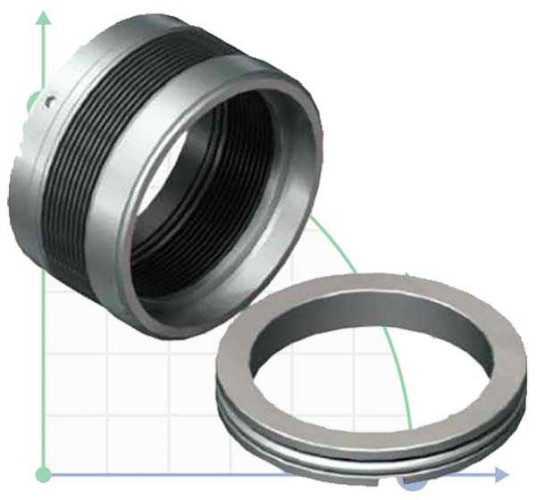

Mechanical seal R-680 (676/670/680)
Mechanical seal type R-680 rotary bellows c AM350 alloy provides corrosion resistance in aggressive environments with high levels of abrasives. Its design is intended for use in the chemical, water and waste water, pulp and paper industries and utilities. The sealing ring has no compensation function, so bellows can move without moisture.
Analogue of John Crane 680, MB-J01, HW680.
Operating limits:
Pressure: ≤2, 1 MPa
Speed: ≤25 m/s
Temperature: -20ºC ~ + 200ºC
Versions:
The rotating ring (SiC / SAR (carbon) / TC)
Stationary ring (SiC / TC)
Rubber (VITON / PTFE)
Metal parts (AISI316L / AM350 / Inconel718 / Titanium / Hastelloy-C / AIIoy-20)
Documentation Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316
Download instructions, catalog for Metal bellows seals R-680 2.5/8, SIC/SIC, VITON, AM350/316
