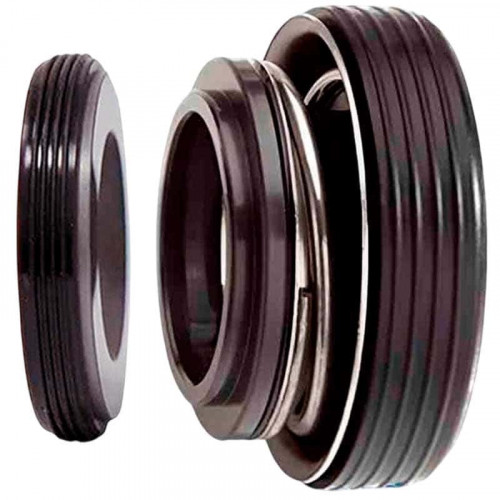

Mechanical seal for motor pump R-SB 30, SIC/SIC, NBR, 304
Mechanical seal for motor pump R-SB 30, SIC/SIC, NBR, 304
Mechanical seal for motor pump R-SB 30, SIC/SIC, NBR, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Pressure:
0,3 MPa
Rate of turn, rpm:
5 000
Operating temperature:
-20°C +100°C
Seal type:
R-SB
Outer diameter of the fixed ring, mm:
48
Stationary and rotating face:
SIC/SIC
See all
Documentation
Categories
Favorite
Compare
Products from the same category
Mechanical seal for motor pump R-SB 16, SIC/SIC, NBR, 304
Pre-order only
$28
$30
-7%
Mechanical seal for motor pump R-SB 20, SIC/SIC, NBR, 304
Pre-order only
$35
$37
-5%
Mechanical seal for motor pump R-SB 25, SIC/SIC, NBR, 304
Pre-order only
$44
$47
-6%
Mechanical Seal R-SB 12, SIC/SIC, NBR, 304
Pre-order only
$21
$22
-5%
Mechanical Seal R-SB 16, SIC/SIC, NBR, 304
Pre-order only
$28
$30
-7%
Mechanical Seal R-SB 20, SIC/SIC, NBR, 304
Pre-order only
$35
$37
-5%
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Mechanical seal for motor pump R-SB 30, SIC/SIC, NBR, 304
Producer | BTS Engineering |
Pressure | 0,3 MPa |
Rate of turn, rpm | 5 000 |
Operating temperature | -20°C +100°C |
Seal type | R-SB |
Outer diameter of the fixed ring, mm | 48 |
Stationary and rotating face | SIC/SIC |
Material of metal part | AISI 304 stainless steel |
Rubber type | NBR |
Shaft diameter | 30 |
Gross weight, kg | 0.1 |
Length of transport packing, cm | 5,5 |
Width of transport packing, cm | 5 |
Height of transport packing, cm | 5 |
Description Mechanical seal for motor pump R-SB 30, SIC/SIC, NBR, 304
The R-SB mechanical seal is designed for operation in high speed and vibration conditions. It is usually used in generator pumps, swimming pool pumps, motor pumps. It is used at temperatures from -20 to + 100°C, with a pressure of 0.3 MPa and a rotation speed of 5000 rpm. Mechanical seal for Odwerk, HYPRO, SOMA, Matari, Sprut, Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pumps, for KSB pumps, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, Honda, LOWARA, PENTAX, Foras, Fristam pumps, for SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK pumps, for Tuchenhagen pumps, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Mechanical seal for motor pump R-SB 30, SIC/SIC, NBR, 304
Download instructions, catalog for Mechanical seal for motor pump R-SB 30, SIC/SIC, NBR, 304
