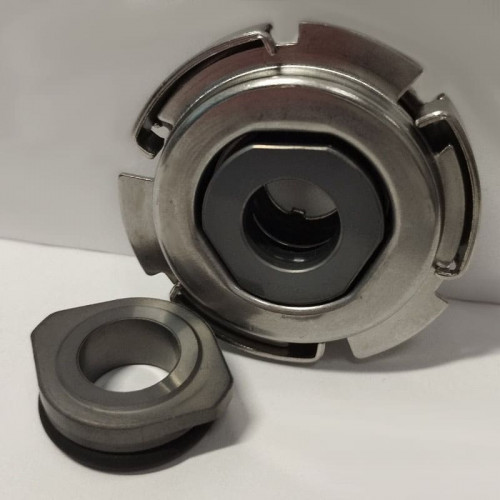

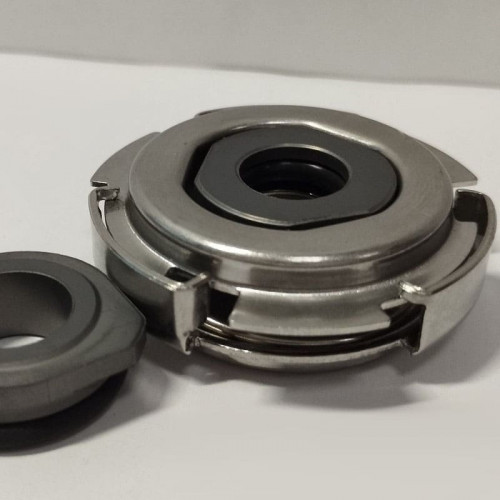

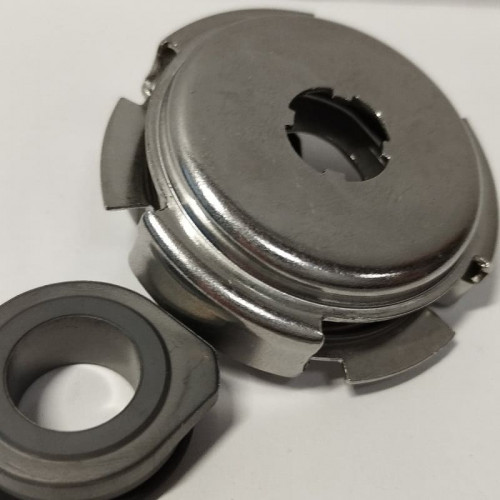

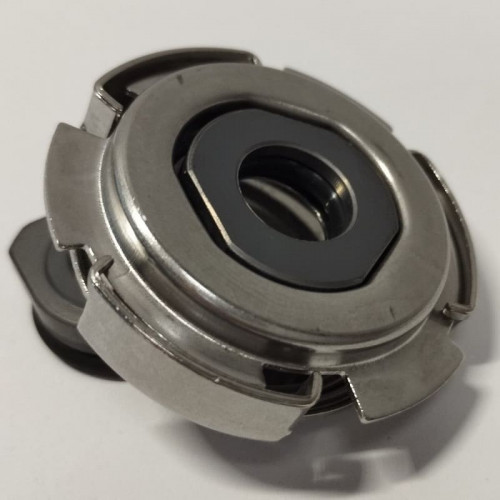

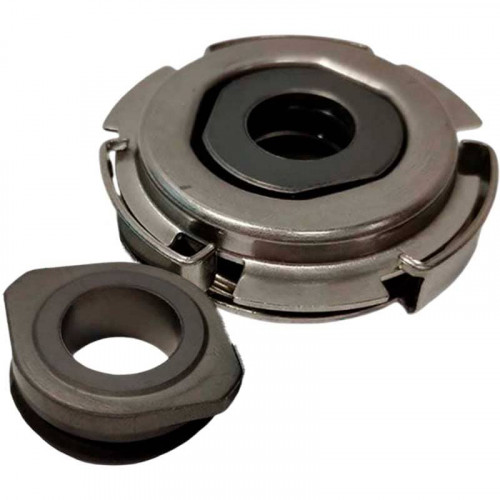

Seal for Grundfos CM, CME and Boosters series pump R-706D 12, CAR/SIC, EPDM, 304
Seal for Grundfos CM, CME and Boosters series pump R-706D 12, CAR/SIC, EPDM, 304
Seal for Grundfos CM, CME and Boosters series pump R-706D 12, CAR/SIC, EPDM, 304
Seal for Grundfos CM, CME and Boosters series pump R-706D 12, CAR/SIC, EPDM, 304
Seal for Grundfos CM, CME and Boosters series pump R-706D 12, CAR/SIC, EPDM, 304
Seal for Grundfos CM, CME and Boosters series pump R-706D 12, CAR/SIC, EPDM, 304
Seal for Grundfos CM, CME and Boosters series pump R-706D 12, CAR/SIC, EPDM, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Seal type:
R-706D
Outer diameter of the fixed ring, mm:
22,5
Stationary and rotating face:
CAR/SIC
Material of metal part:
AISI 304 stainless steel
Rubber type:
EPDM
Shaft diameter:
12
See all
Categories
Favorite
Compare
Products from the same category
Grundfos CM, CME and Boosters pump seal R-706D 12, SIC/SIC, VITON, 304 type Grundfos AQQE, Grundfos AQQV, Grundfos AUQE
Pre-order only
$59
$62
-5%
Mechanical seal for Grundfos CM, CME and Boosters R-706D 16, SIC/SIC, VITON, 304 pump
Pre-order only
$90
$95
-5%
Pump seal Grundfos CM, CME and Boosters R-706D 12, CAR/SIC, EPDM, 304
In stock
$56
$59
-5%
Pump seal Grundfos CM, CME and Boosters R-706D 12, SIC/SIC, VITON, 304
Pre-order only
$59
$62
-5%
Pump seal Grundfos CM, CME and Boosters R-706D 16, SIC/SIC, VITON, 304
In stock
$90
$95
-5%
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days

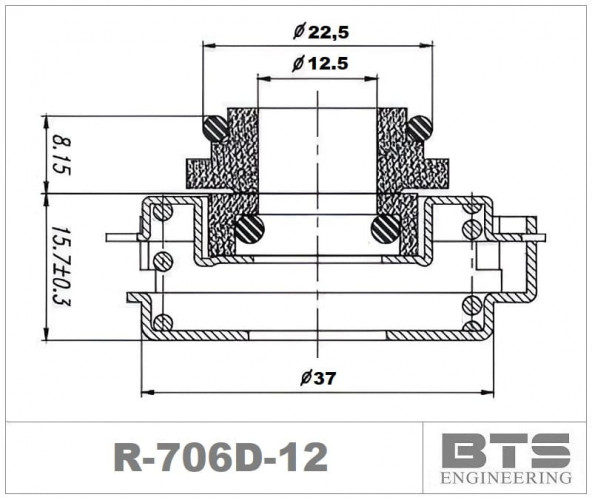

On-line payment on the sitePayment is made by bank cardsFeatures Seal for Grundfos CM, CME and Boosters series pump R-706D 12, CAR/SIC, EPDM, 304
Producer | BTS Engineering |
Seal type | R-706D |
Outer diameter of the fixed ring, mm | 22,5 |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Rubber type | EPDM |
Shaft diameter | 12 |
Application | Grundfos |
Analogue for | Grundfos AQQE, Grundfos AQQV, Grundfos AUQE |
Gross weight, kg | 0.3 |
Length of transport packing, cm | 5,5 |
Width of transport packing, cm | 5,5 |
Height of transport packing, cm | 5 |
Description Seal for Grundfos CM, CME and Boosters series pump R-706D 12, CAR/SIC, EPDM, 304
R-706 D (AQQE, AQQV) is used in the following types of Grundfos pumps: CM, Scala, JP, Ch8, Ch12, CRK (|) 2, CRK (|) 4 Series. SPK1, SPK2, SPK4, SPK8 series, Cr2, Cr4 series. Grundfos article: 96932392 / 96932350. Mechanical seal for Wilo pump, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos, for KSB pump, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for SPERONI pump, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for Tuchenhagen pump, ALFA LAVAL, Donjoy, Mission Magnum.
