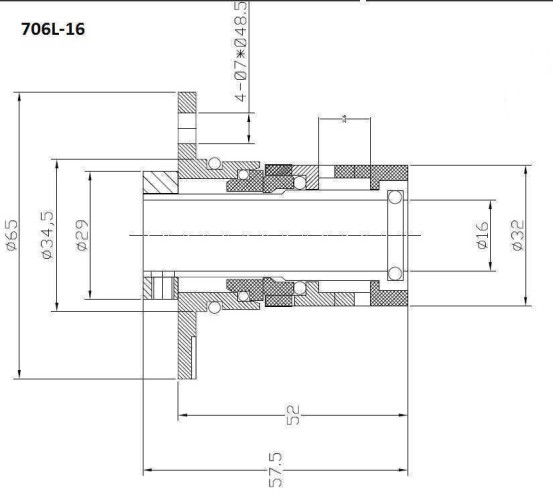

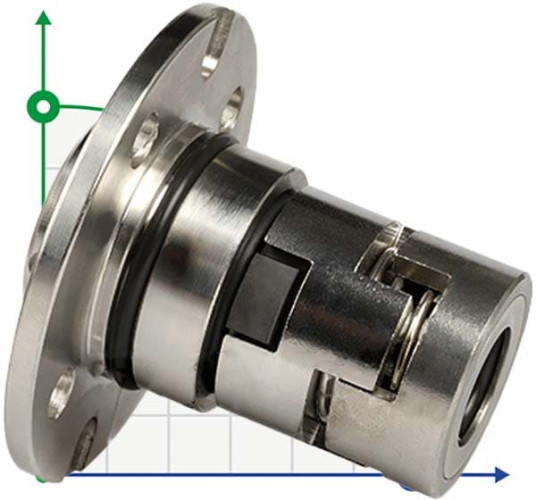

Cartridge seals Grundfos R-706L 16, SIC/SIC, VITON, 304
Cartridge seals Grundfos R-706L 16, SIC/SIC, VITON, 304
Cartridge seals Grundfos R-706L 16, SIC/SIC, VITON, 304
Cartridge seals Grundfos R-706L 16, SIC/SIC, VITON, 304
Cartridge seals Grundfos R-706L 16, SIC/SIC, VITON, 304
Brand:
BTS EngineeringCharacteristics
Producer:
BTS Engineering
Stationary and rotating face:
SIC/SIC
Seal type:
R-706L
Shaft diameter:
16
Rubber type:
VITON
Material of metal part:
304
Application:
Europump, Grundfos, SACI Pumps
See all
Documentation
Categories
Favorite
Compare
Products from the same category

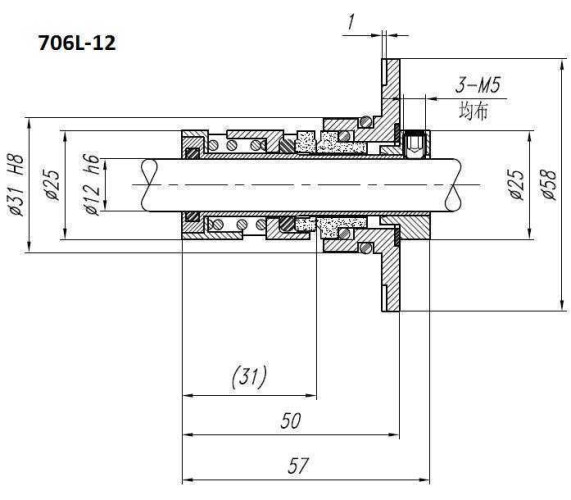

Cartridge seals Grundfos R-706L 12, SIC/SIC, VITON, 304
In stock
$101.19

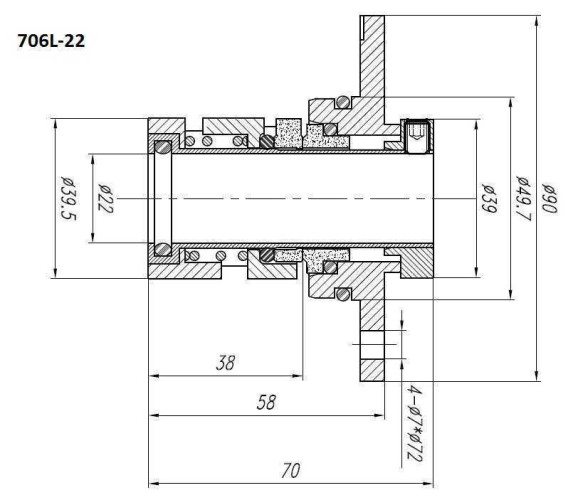

Cartridge seals Grundfos R-706L 22, SIC/SIC, VITON, 304
Pre-order only
$166.52
Exchange or returnWe will return or exchange for another product
Fast shippingWe will pick up and send promptly
Warranty and qualityGuaranteed return of goods within 10 days
On-line payment on the sitePayment is made by bank cardsFeatures Cartridge seals Grundfos R-706L 16, SIC/SIC, VITON, 304
Producer | BTS Engineering |
Stationary and rotating face | SIC/SIC |
Seal type | R-706L |
Shaft diameter | 16 |
Rubber type | VITON |
Material of metal part | 304 |
Application | Europump, Grundfos, SACI Pumps |
Analogue for | Grundfos SQQE |
Gross weight, kg | 0.25 |
Length of transport packing, cm | 8 |
Width of transport packing, cm | 8 |
Height of transport packing, cm | 10 |
Description Cartridge seals Grundfos R-706L 16, SIC/SIC, VITON, 304
Mechanical seal R-706L used GRUNDFOS CR pumps, CRI, CRN 1, 3, 5, CR, CRI, CRN 10, 15, 20, CR, CRN 32, 45, 64, 90, CR, CRN 120, 150.
materials:
1. The rotating ring: SiC / TC.
2. Stationary Ring: Carbon / SiC / TC
3. Bellows: EPDM / VITON.
4. Spring: SS304 / SS316.
5. Metal parts: SS304 / SS316.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Documentation Cartridge seals Grundfos R-706L 16, SIC/SIC, VITON, 304
Download instructions, catalog for Cartridge seals Grundfos R-706L 16, SIC/SIC, VITON, 304
